Description

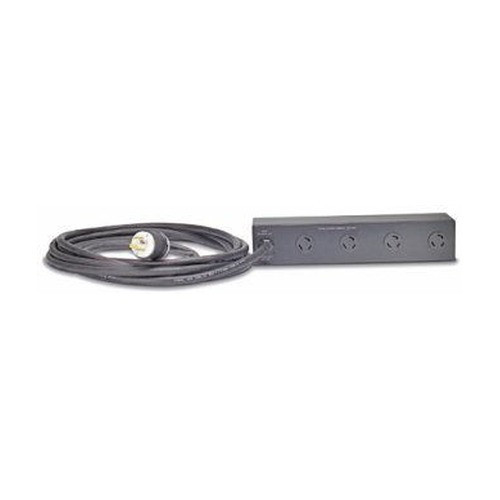

APC by Schneider Electric AP7583 Basic Rack PDU

Overview

The APC AP7583 is a 2U rack-mountable Power Distribution Unit (PDU) designed for basic power distribution in IT environments. It provides four NEMA L5-30R outlets and accepts a NEMA L14-30P input plug, supporting up to 30A at 120V. This unit is ideal for rack enclosures where straightforward power distribution is required without advanced monitoring or switching capabilities.

Compatibility

This PDU is designed for use with standard 19-inch rack enclosures. It accepts a NEMA L14-30P input plug, commonly found on 30A, 120V/208V circuits. The four NEMA L5-30R outlets are suitable for connecting high-power devices such as servers, network switches, and other rack-mounted equipment that require 120V, 30A connections.

Installation Notes

The AP7583 features a horizontal mounting orientation, designed to fit within standard 2U rack space. Its 27.99 ft (approximately 28 ft) cord length offers flexibility in placement within the rack and connection to the power source. The unit's form factor is described as Tower, but it is rack-mountable for standard server rack installations.

What's in the Box

  • 1x APC AP7583 PDU
  • 1x Power Cord (NEMA L14-30P plug)
  • Mounting Hardware
Expert Analysis
Specifications
Product Type: PDU
Receptacle Type: NEMA L5-30R
PDU Type: Basic
Mounting Orientation: Horizontal
Power Rating VA: 4992 VA
Receptacle Detail: 4 x NEMA L5-30R
Cord Length: 27.99 ft
Height: 3.5"
Width: 17.2"
Depth: 3.5"
Rack Height: 2U
Brand Name: APC by Schneider Electric
Plug Connector Type: NEMA L14-30P
Form Factor: Tower
Mount Type: Rack-mountable
Input Voltage: 120 V
Input Voltage 2: 208 V
Output Voltage: 120 V AC
Weight Approximate: 14.02 lb
Certifications: cUL Listed|METI Denan|UL Listed
Max Input Current: 30A
Warranty Labor: 2 Year
Warranty Parts: 2 Year
