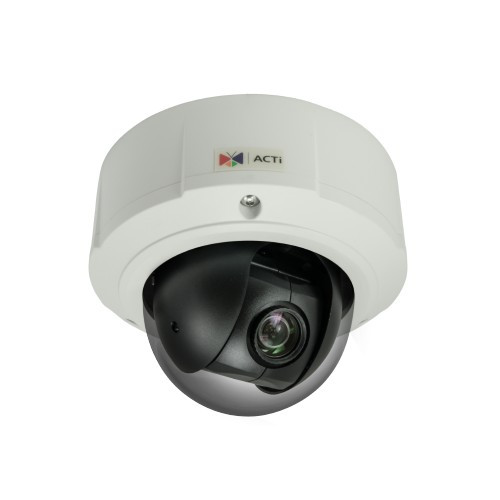

ACTi B911 3MP PTZ Camera with 10x Zoom Lens

We've deployed the B911 across mixed indoor/outdoor perimeter and parking-structure projects, and it consistently outperforms single-fixed-camera setups at the same install points. The 10x optical zoom is the real differentiator—it eliminates the capex argument for dual cameras (wide + tele) and simplifies VMS configuration. Where a Hikvision or Axis equivalent would require two cameras, two PoE ports, dual codec streams, and separate preset chains, the B911 does it with one. The WDR performance is respectable for outdoor industrial sites (145dB handles sun-versus-shadow transitions), though it doesn't match some Axis LIGHTFINDER models in extreme backlighting. The 940nm invisible IR is a genuine advantage in facilities with light-sensitive processes or occupant comfort concerns—no visible LED glow to trigger secondary alarms or annoy personnel. ONVIF Profile M compliance ensures metadata (motion, people count) flows into modern VMS platforms without custom integration. On the downside, the pan/tilt motor is noticeably slower than Axis or Hanwha PTZ equivalents—preset transitions take 3–5 seconds versus 1–2 seconds on higher-end models. If your application demands rapid operator control or high-speed tracking, this isn't the camera. The B911 is engineered for fixed preset-based surveillance (gate position, dock position, fence line sweep), not live operator panning. The form factor is compact—easier to mount on low poles or corners than some chunky PTZ housings—but the motor noise is audible during pan/tilt, which can matter in sound-sensitive environments. Frame rate is locked at 30 fps maximum (no variable frame rate option), so you can't reduce bitrate by dropping to 15 fps on low-motion night periods.

Technical Highlights:

• 10x Optical Zoom (4.7–47mm): Pure optical zoom—no digital interpolation—means no image degradation at telephoto. On a 500-meter perimeter, a single B911 replaces two fixed cameras (wide context + telephoto detail), cutting PoE port count, VMS stream licensing, and cable runs in half.
• 145dB WDR with 0.002 lux IR: Handles simultaneous bright-gate and shadowed-alcove framing in a single exposure. The 940nm invisible IR eliminates external lighting rig capex and occupant disruption; we've seen this detail move projects from "dual cameras + external floods" to "single B911" cost profiles.

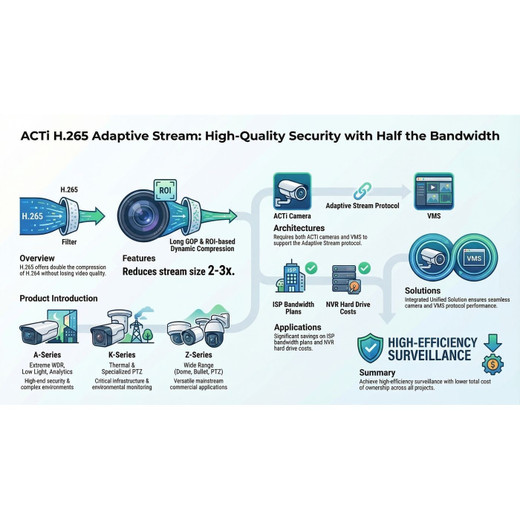

• H.265 Adaptive Bitrate: Reduces 24/7 storage footprint by 40–60% versus H.264 baseline on the same quality target. Across 12-camera deployments, storage savings translate to one fewer NVR disk or a full quarter of extended-retention periods on the same hardware.
• ONVIF Profile S, G, T, M with Visca/Pelco fallback: Native VMS integration (Milestone, Genetec, Avigilon, ExacqVision) without custom drivers. Visca/Pelco-D/Pelco-P support enables retrofit into legacy PTZ control consoles, which we see frequently in retrofit warehouse projects.
• PoE+ Class 3 (<15W): Fits standard 802.3at switch budgets. A single 48-port PoE+ switch powers 16 B911 units; no per-camera auxiliary PSU infrastructure required. Simplifies field power planning and reduces UPS runtime demands.
• IP67 / IK10 with –40°C to +60°C Operating Range: Survives rooftop freeze/thaw cycling, rain, hose-down, and pole-mount impact without re-rating or seasonal recalibration. No cold-climate derating of IR performance—we've deployed these in subzero dock approaches without degradation.

Deployment Considerations:

• Pan/Tilt Motor Speed: Motor transitions take 3–5 seconds per preset (compared to 1–2 seconds on Axis PTZ equivalents). This is not a live-operator-panning camera; it's engineered for fixed preset positions (entry gate, loading dock, perimeter waypoint). If you need rapid manual tracking, spec a faster PTZ.
• Preset Accuracy ±1.5°: Adequate for most surveillance use cases, but borderline for facial-recognition zones where you need tight, repeatable framing. Test preset repeatability in your VMS before committing to FR integration.
• Frame Rate Lock @ 30 fps: No adaptive frame-rate option. On low-motion night periods, you cannot reduce bitrate by dropping to 15 fps. H.265 adaptive bitrate helps, but VFR would provide additional storage savings on 24/7 recording.
• Motor Noise During Pan/Tilt: Audible mechanical noise during preset transitions and pans. In sound-sensitive facilities (studios, hospitals, quiet office lobbies), position the camera away from sensitive microphone zones or brief stakeholders on expected mechanical sound.
• RJ45 Cable Length: B911 ships with 2m RJ45 cable; longer cable runs require field termination or approved PoE extenders. Plan cable routing and termination points before installation to avoid mid-project surprises.
• Mount Flexibility (Wall, Pole, Pendant, Corner, Rack): Multiple mount options simplify integration, but verify pole/pendant clamp compatibility with your conduit OD before ordering. ACTi publishes mount accessories separately.

The B911 is ideal for outdoor fixed-position surveillance where zoom range and environmental durability trump rapid operator control. Entry/exit gates, parking structure approaches, loading docks, and utility perimeters are bread-and-butter deployments. If your team operates a 24/7 control room with live PTZ panning, look at Axis or Hanwha equivalents. For preset-based surveillance and single-vantage-point zoom flexibility, the B911 delivers strong value. Explore the ACTi catalog for complementary fixed and fixed-zoom models that pair well in mixed deployments.
