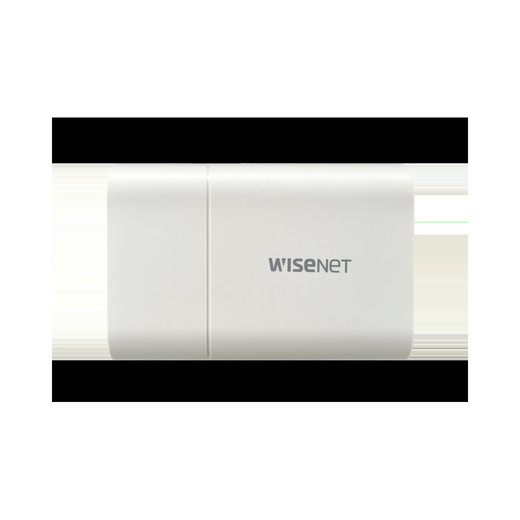

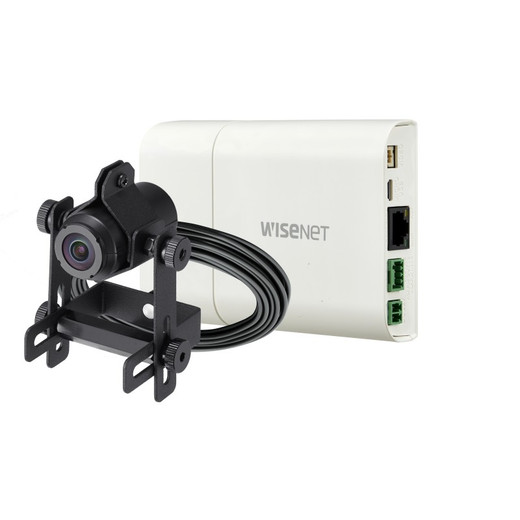

Hanwha XNB-H6240A B1 2MP Fixed Network ATM Camera
The Hanwha XNB-H6240A B1 is a compact 2MP fixed network camera purpose-built for ATM environments and high-traffic indoor spaces. Powered by Hanwha's Wisenet X and Wisenet 5 architecture, this camera delivers crisp Full HD 1080p video at 60fps with intelligent video compression and advanced analytics designed to maximize uptime and minimize bandwidth consumption.
Key Features
- 2MP resolution (1920×1080) at 60fps for clear facial and transaction capture
- 2.4mm fixed lens with 138-degree horizontal field of view
- 120dB Wide Dynamic Range (WDR) for high-contrast ATM and backlit environments
- Triple codec support: H.265, H.264, and MJPEG with WiseStream II compression
- Advanced video analytics: sound classification, defog detection, hallway view, HLC
- Business analytics and Digital Image Stabilization (DIS)
- PoE (802.3af) and 12VDC dual power inputs for flexible deployment
- Micro SD/SDHC/SDXC card slot for onboard storage
- USB port for field installation and configuration
Technical Highlights
The XNB-H6240A B1 combines WiseStream II technology with triple codec flexibility to optimize bandwidth and storage efficiency across diverse network deployments. The 120dB WDR effectively handles the challenging lighting conditions of ATM lobbies and backlit screens, ensuring consistent image quality regardless of ambient light variation. Integrated video analytics enable proactive threat detection through sound classification and automated defog capabilities.
The camera operates reliably across an extended temperature range from 14°F to 131°F (-10°C to +55°C), with a 1.5-meter pre-terminated cable for rapid installation. PoE (802.3af) power delivery eliminates the need for separate power runs, while the optional 12VDC input provides redundant powering options for mission-critical installations.
Ideal Applications
Purpose-designed for ATM surveillance, bank lobbies, retail corridors, and high-traffic hallways where transaction security and customer monitoring are priorities. The compact fixed form factor and intelligent compression make it equally effective in multi-camera deployments requiring bandwidth efficiency and centralized analytics.
