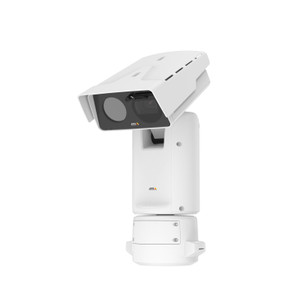

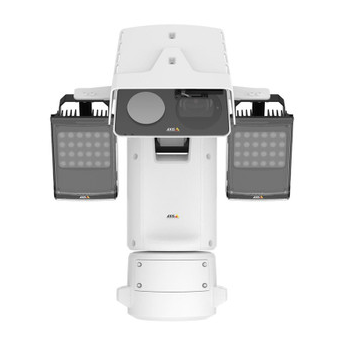

Axis XQ8752-E 2MP 30fps Bispectral PTZ IP Camera
The Axis XQ8752-E is a professional-grade bispectral PTZ camera engineered for demanding perimeter security, border control, and critical infrastructure monitoring. By integrating thermal and visual imaging in a single outdoor-rated unit, this camera delivers comprehensive surveillance capabilities for 24/7 operations in harsh environmental conditions. The combination of high-resolution visual imaging and thermal detection provides unmatched situational awareness for security teams.
Key Features
- Bispectral Technology: Simultaneous thermal and visual imaging in one compact unit
- 2MP Visual Resolution: 1920x1080 at 30 fps for detailed forensic-quality imagery
- 32x Optical Zoom: Narrow 58.5° to 2.4° horizontal field of view with 12x digital zoom
- Thermal Detection Range: Humans detected at distances up to 3,056 meters (1.5px); vehicles to 9,371 meters
- Lightfinder 2.0: True-color imaging at 0.1 lux minimum illumination for superior low-light performance
- Forensic WDR: Advanced wide dynamic range processing for balanced detail in mixed lighting
- Pan/Tilt: 360° endless pan with -90° to 45° tilt range for complete coverage
- Autotracking 2: Intelligent object tracking with preset position tours and orientation aids
- PoE Powered: Single PoE connection for power and data simplification
- IP66/IK10 Rated: Dust-tight, water-resistant, and vandal-proof for outdoor deployment
- H.264 Compression with Zipstream: Bandwidth-efficient video streaming
- Audio Support: Integrated audio detection and two-way communication
- Advanced Security: Signed firmware, secure boot, and TPM for protected operation
Technical Specifications
Imaging & Optics: 1/2.8" CMOS sensor, 4.3–137.6mm focal length, 32x optical zoom with 12x digital zoom. Vertical field of view spans 34.9° to 1.3°. Delivers 0.1 lux minimum color sensitivity with Lightfinder 2.0 and Forensic WDR processing.
Frame Rate & Compression: 30 fps at full resolution; maximum 8.3 fps in extreme zoom. H.264 video compression with Axis Zipstream technology reduces bandwidth without sacrificing detail.
Environmental Durability: Operating range -40° to 55°C. IP66 environmental sealing and IK10 vandal rating ensure reliable performance in outdoor, high-risk settings. Outdoor-ready design requires no additional housing.
Connectivity & Power: Wired PoE connection delivers both power and data over a single cable. 4 alarm input/output channels, ONVIF Profile G compliance, and analytics capabilities enable integration with third-party VMS platforms.
Applications
- Border and perimeter security with long-range human and vehicle detection
- Critical infrastructure protection and facility monitoring
- Port and maritime surveillance
- Transportation and traffic enforcement
- Law enforcement and investigative operations
- Emergency response and disaster assessment
The XQ8752-E represents a significant advancement in bispectral surveillance technology. The 32x optical zoom combined with thermal imaging provides unmatched detection range—identifying humans at 3+ km and vehicles beyond 9 km—critical for border and perimeter applications where early warning is essential. Lightfinder 2.0 and Forensic WDR work in tandem to maintain image quality across extreme lighting transitions, from bright daylight to near-total darkness, eliminating the blind spots common in single-sensor designs.
The Autotracking 2 system with preset tours streamlines operations by automating routine surveillance patterns, reducing operator fatigue during extended monitoring periods. Secure boot and TPM compliance meet enterprise security standards, while H.264 with Zipstream ensures efficient network utilization even on bandwidth-constrained deployments. The -40° to 55°C operating range and IP66/IK10 durability ratings confirm this camera's suitability for the harshest outdoor environments without supplementary protection.
