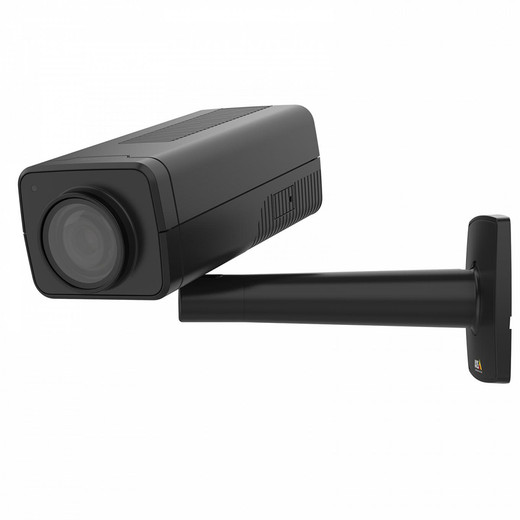

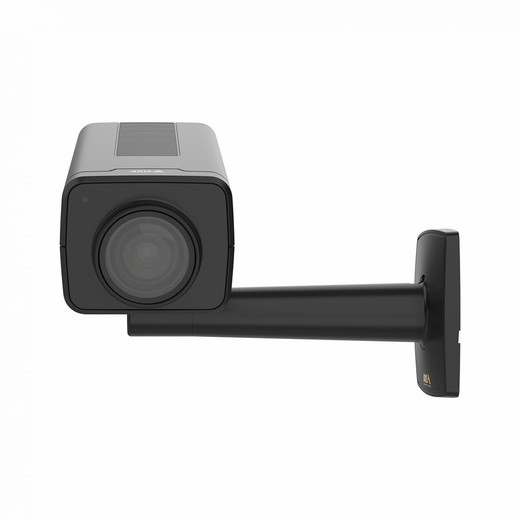

Axis 02220-001 Q1715 2MP 21x Zoom Indoor PTZ Block Camera
The Axis 02220-001 is a professional-grade indoor PTZ block camera engineered for organizations requiring precise pan-tilt-zoom surveillance with exceptional low-light performance. Combining a 21x optical zoom lens with Lightfinder 2.0 technology, this camera delivers forensic-quality color video across diverse lighting conditions, making it essential for retail environments, corporate offices, healthcare facilities, and educational institutions where detailed identification matters.
Key Features
- 2MP Full HD (1920x1080) at 30 fps standard; up to 120 fps capability — Full-frame 1080p resolution means you capture enough detail for facial identification and license plate recognition without cropping or post-processing. Higher frame rates eliminate motion blur during pan/tilt operations, critical for forensic video review.
- 21x optical zoom with 4–84.6mm varifocal lens; 76° to 3.6° horizontal field of view — A single camera covers both wide situational awareness (76°) and tight forensic detail (3.6°) without losing optical quality. This eliminates the need for multiple fixed-lens cameras in the same space, reducing infrastructure complexity and cost.
- Lightfinder 2.0 with 0.1 lux color sensitivity — The camera captures usable color detail in near-darkness without switching to infrared mode, which obscures facial features and clothing details essential for forensic investigation. This low-light threshold historically required dual-sensor or IR-supplemented systems; Lightfinder 2.0 achieves it with a single sensor.
- Forensic Wide Dynamic Range (Forensic WDR) — Prioritizes shadow detail recovery rather than simply balancing exposure, making this camera exceptionally valuable in mixed natural and artificial lighting—typical of retail floors, office atriums, and healthcare corridors. Balanced exposure in both bright and shadowed areas simultaneously prevents loss of identity clues.
- H.264 compression with Axis Zipstream technology — Reduces bandwidth and storage demands by up to 50% compared to standard H.264 encoding without sacrificing image quality. On large multi-camera deployments, this efficiency directly lowers recorder storage cost and network switch requirements.
- Motion detection with advanced algorithms — Intelligent event triggering reduces false positives from lighting changes or shadows, minimizing storage waste and alert fatigue for monitoring staff.
- Integrated two-way audio support — Enables remote communication from a monitoring station, useful for retail loss prevention, office access control, and healthcare patient rooms.
- PoE Class 4 powered; 12W average, 13.5W maximum — Draws minimal power via standard 802.3af PoE, so this camera won't strain your network switch's power budget. No separate power supply needed, reducing cabling complexity and infrastructure cost.
- Operating range −20°C to 50°C — Maintains performance in temperature-controlled indoor spaces, typical of retail, office, and healthcare environments.
Integration & Compatibility
The 02220-001 supports ONVIF Profile S for broad VMS compatibility. H.264 encoding and Zipstream optimization work across legacy and modern network video recorders, ensuring you're not locked into a single vendor ecosystem. Audio input and output enable two-way communication in systems that support it.
Block form factor mounting uses standard ceiling or wall brackets, accommodating both new installations and retrofits into existing infrastructure. Compact dimensions and modest weight simplify overhead or corner mounting in retail and office environments where aesthetics and space constraints matter.
For integrators deploying PTZ cameras across multiple locations, the PoE Class 4 requirement is minimal compared to high-power PTZ units, reducing the need for PoE+ or dedicated power infrastructure. Consult your PoE switch specifications to confirm adequate port power budgets if deploying multiple units.
When to Choose a Different Model
If your deployment requires outdoor all-weather operation, or if you need greater than 21x zoom range, consider higher-specification variants in the Axis Axis IP camera lineup. For indoor spaces with consistently high ambient light and no low-light requirements, a lower-cost fixed-lens 2MP camera may suffice. If you require multisensor (panoramic) coverage or explosion-proof certification, this is not the correct choice.
Frequently Asked Questions
Q: Does the Axis 02220-001 support ONVIF?
A: Yes, the Q1715 supports ONVIF Profile S, enabling integration with most third-party VMS platforms including Milestone XProtect, Genetec, and others.
Q: What is the minimum illumination for color video on the 02220-001?
A: Lightfinder 2.0 delivers color sensitivity at 0.1 lux, significantly lower than standard 2MP cameras. This eliminates the need for supplemental IR in most indoor retail and office environments.
Q: Can the 02220-001 be ceiling-mounted?
A: Yes, the block form factor supports standard ceiling and wall bracket mounting. Verify bracket load capacity matches the camera weight with your mounting hardware supplier.
Q: What is the maximum power consumption of the 02220-001?
A: Maximum power draw is 13.5W via PoE Class 4 (802.3af). This fits within the power budget of standard 30W PoE switch ports, reducing infrastructure overhead.
Q: Does the 02220-001 include audio?
A: Yes, the camera integrates two-way audio support, enabling remote communication when paired with a compatible VMS or audio-capable recording system.
Q: What compression formats does the Q1715 support?
A: The 02220-001 uses H.264 compression with Axis Zipstream technology for bandwidth and storage efficiency. H.265 is not supported on this model.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Axis 02220-001 (often searched as 02220 001) represents a genuine convergence of optical zoom capability and low-light excellence in a compact block form factor. The 21x zoom paired with Lightfinder 2.0's 0.1 lux color sensitivity addresses a critical market need: capturing usable color detail in dim indoor environments without forcing IR mode, which obscures facial features and clothing detail essential for forensic investigation and loss prevention.
Technical Highlights:
- Forensic WDR prioritizing shadow recovery: Rather than simply balancing exposure across the frame, Axis's algorithm recovers detail in shadowed areas—critical in retail checkout zones, office atriums with mixed natural/artificial lighting, and healthcare corridors where mixed light sources are the norm.
- 21x varifocal zoom (76° to 3.6° FOV): Eliminates the need for multiple fixed-lens cameras in the same space. A single 02220-001 covers both wide situational awareness and tight detail (face/license plate identification) from a single vantage point, reducing infrastructure cost and simplifying VMS configuration.
- H.264 Zipstream reducing bandwidth by up to 50%: On large multi-camera deployments, this efficiency directly lowers network switch power requirements and recorder storage footprint—real cost savings on 24/7 retention scenarios.
- PoE Class 4 at 12–13.5W: Minimal power draw means this camera fits comfortably within standard 30W switch ports. No separate power supply needed, reducing cabling complexity and infrastructure cost.
Deployment Considerations:
- Lightfinder 2.0 is optimized for color sensitivity in low light—not a substitute for IR in zero-light or outdoor scenarios. If your deployment includes near-darkness zones (basements, enclosed loading docks), consider IR-equipped alternatives or supplemental lighting.
- PoE Class 4 is adequate for the 02220-001, but verify your switch port power budgets if deploying multiple units on the same switch. A single 24-port switch typically supports 3–4 of these cameras at maximum draw without power oversubscription.
- Block form factor is compact, but pan/tilt motors require clear sightlines and open space to operate effectively. Verify ceiling height and surrounding obstacles before installation.
This camera is the right choice for retail loss prevention (checkout detail + floor coverage), corporate office security (conference rooms, access points, high-value storage), and healthcare facilities (patient safety, compliance documentation without IR mode). The combination of 21x zoom and 0.1 lux color sensitivity eliminates the typical trade-off between coverage and identification detail.
