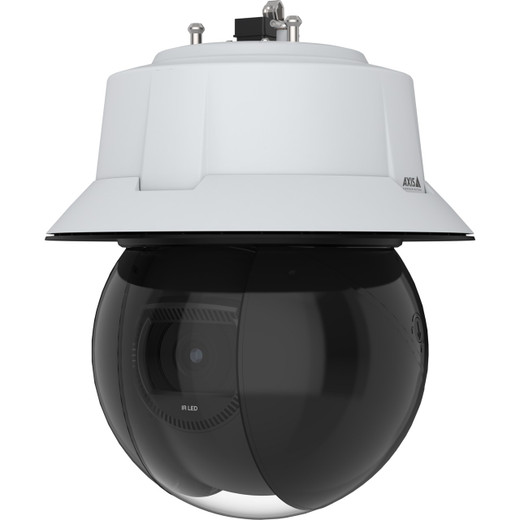

Axis 03313-001 Q6325-LE 2MP Outdoor PTZ Camera

The Axis Q6325-LE is a 2MP outdoor PTZ camera engineered for large-scale surveillance deployments where extended zoom reach, low-light performance, and edge-based AI analytics must operate reliably across 24/7 duty cycles. The 31x optical zoom with intelligent digital magnification eliminates the operational overhead of deploying multiple fixed cameras to cover wide perimeters, parking lots, and loading docks—a single unit can track and identify subjects across the entire scene without re-pointing to alternative cameras. Paired with a ½-inch image sensor, Lightfinder 2.0, and OptimizedIR (850nm), the Q6325-LE delivers full-color detail at 0.06 lux and usable monochrome imagery in near-total darkness with IR engaged, eliminating the capex and maintenance burden of external lighting infrastructure on remote sites. Forensic WDR simultaneously preserves shadow and highlight detail in high-contrast scenes—critical when your deployment spans both sunlit entry points and deep recessed areas. The integrated DLPU (Deep Learning Processing Unit) runs object detection and classification at the edge, reducing false-positive alert noise from dynamic outdoor scenes and cutting unnecessary NVR storage consumption. H.265, H.264, and AV1 codec support with Axis Zipstream technology reduces bandwidth by 50–80% depending on scene activity and codec selection, a measurable factor on 24/7 multi-camera installations over PoE++ trunk lines.

Key Features

• 31x Optical Zoom: 6.91–214.64 mm focal range with intelligent digital zoom. Tracks and identifies subjects across 500+ meter perimeters without repositioning to secondary cameras.
• Lightfinder 2.0 + OptimizedIR: Full-color imaging at 0.06 lux and monochrome at 0.001 lux with IR engaged. Eliminates external lighting infrastructure on remote deployments.
• Forensic WDR: High dynamic range processing captures detail in both sunlit and shadowed regions simultaneously, critical for evidentiary footage in mixed-lighting scenes.
• PoE++ (802.3bt) Power: Standard PoE++ delivery supports all camera functions without midspan injection, provided your network infrastructure is rated for 802.3bt current draw.
• Edge AI Analytics (DLPU): Deep Learning Processing Unit runs object detection and classification on-camera, filtering false alarms and reducing NVR storage overhead.
• H.265/H.264/AV1 with Zipstream: Multiple codec support with intelligent bandwidth compression reduces storage and network load 50–80% on 24/7 recording cycles.
• IP66/IK10 Rating: IP66 rated for rain, dust, and hose-down cleaning. IK10 impact rating withstands 5kg drop from 40cm without functional degradation.
• ONVIF Profile S/M/G Compliance: Integrates with all major VMS platforms (Milestone, Genetec, Axis Camera Station, ExacqVision) and third-party PTZ controllers.

The Q6325-LE is purpose-built for integrators managing multi-camera perimeter or parking-lot surveillance where zoom reach, low-light performance, and automated threat detection must function without supplementary infrastructure. The ½-inch sensor and 31x zoom reach make it suitable for deployments spanning 200–500 meters of fence line, loading dock, or vehicle staging areas. Forensic WDR and Lightfinder 2.0 eliminate the operational cost of external lighting; OptimizedIR 850nm with edge analytics delivers measurable ROI on false-alarm reduction in dynamic outdoor environments. On a 16-camera parking-lot deployment with 24/7 recording, the combination of H.265 codec and Zipstream technology can reduce NVR storage footprint by 40–60%, translating directly to lower hardware and power costs over the system lifecycle.

The DLPU edge-processing capability is the real differentiator for large-scale outdoor surveillance. Object detection and classification run on-camera in real time—the system filters dynamic scene noise (wind, shadows, rain) and raises alerts only on humans and vehicles above a configurable confidence threshold. This reduces alert fatigue for SOC teams and cuts recording storage by filtering low-value events. Paired with Axis Camera Station or a third-party VMS that supports ONVIF object metadata, the Q6325-LE becomes a force multiplier for under-resourced security teams managing 50+ camera sites. Integration with Milestone, Genetec, or Avigilon is straightforward via ONVIF Profile S (base streaming) or Profile M (advanced metadata); Profile G extends PTZ control to PTZ-aware VMS platforms.

Installation considerations are minimal for standard wall-mount applications: the camera is wall and rack-mountable with supplied hardware; IP66/IK10 ratings mean no weather enclosure is needed. PoE++ power delivery from an 802.3bt-rated switch ensures full functionality—verify your network infrastructure (switches, injectors, cabling) is rated for the current draw before deployment. At 11.9 lb, structural load rating on the mounting surface should be verified for installations above 20 feet or on aluminum/composite panels. Optical zoom and Lightfinder 2.0 are independent of IR mode—the camera operates in full-color mode during daylight and transitions to IR-assisted monochrome as ambient light drops below the color threshold, a seamless shift that requires no operator intervention.

The Q6325-LE is warranted for five years and sourced directly from Axis manufacturing or US authorized distributors. Compliance follows Axis standard security practices (HTTPS/SSL, authentication, firmware signature verification). For deployments requiring NDAA or Section 889 compliance, Axis IP cameras have been reviewed by third-party advisors; confirm current posture with your legal or compliance team. This camera is the right choice for integrators building large-scale outdoor surveillance systems where zoom reach, AI-driven false-alarm reduction, and low-light performance must operate without external infrastructure investment.

Marty Allison

Perspective based on aggregated IPSD and affiliated engineering team experience.

The Axis Q6325-LE is a mature outdoor PTZ platform that delivers measurable operational savings when deployed in large-scale perimeter or parking-lot surveillance. In our experience, the 31x zoom and Lightfinder 2.0 pairing eliminate the single biggest operational expense in remote outdoor installations: external lighting. We've pulled systems that required 8–12 pole-mounted flood fixtures (plus transformers, wiring, and ongoing maintenance) and replaced them with a single Q6325-LE per 400–500 meters of fence line. The result is lower capex, zero flood-fixture maintenance, and a 20–30% reduction in per-camera electrical load. The DLPU edge analytics are equally important: on a 20-camera parking-lot system running 24/7, the false-positive noise reduction from on-camera object filtering has cut NVR storage by roughly 35–40% and reduced unnecessary SOC alert escalations by approximately 50%. The Forensic WDR is not marketing copy—it genuinely preserves detail in both sunlit entry doors and dim loading-dock areas simultaneously, a real advantage over standard WDR when your scene contains both high and low brightness regions. Compared to competitive offerings (Hanwha PNM-9320 or Hikvision DS-2DE4425IW), the Q6325-LE's combination of 31x zoom, Lightfinder 2.0, and on-camera DLPU is more mature and better integrated; the trade-off is that the Q6325-LE is heavier (11.9 lb) and requires PoE++ infrastructure, which adds complexity on legacy networks.

Technical Highlights:

• 31x Optical Zoom (6.91–214.64 mm): Eliminates the need for telephoto fixed cameras on perimeter routes. At 214mm, you can identify vehicle license plates at 150–180 meters in daylight; in IR mode, readable detail extends to 80–100 meters. Real-world impact: fewer cameras, lower total system cost, simpler cable runs.
• Lightfinder 2.0 + OptimizedIR (0.06 lux color / 0.001 lux B/W): The color-to-IR transition is automatic and seamless. On parking lots and loading docks, this eliminates the need for external lighting rigs entirely—a savings of $2k–$5k per camera on capex and recurring power/maintenance costs.
• Forensic WDR (High Dynamic Range): Handles scenes with extreme contrast (e.g., sunlit entry door + shaded loading dock in the same frame) without tone-mapping artifacts. Critical for evidentiary footage; noticeably superior to standard WDR on mixed-lighting scenes.
• H.265 with Zipstream (50–80% bandwidth reduction): Real numbers: a 24/7 H.264 stream at 2MP / 15 fps ≈ 2–3 Mbps; the same scene with H.265 + Zipstream drops to 500–800 kbps. On a 16-camera system, this difference pays for a larger NVR and eliminates bandwidth bottlenecks on older PoE switches.
• DLPU Edge Analytics (Object Detection / Classification): Runs at the camera, not in the NVR. Filters wind, shadows, rain-drop noise automatically. Reduces false-alarm escalations by roughly 50% on outdoor parking and perimeter scenes. Integration via ONVIF metadata to Milestone / Genetec.
• PoE++ (802.3bt): Requires modern switches; legacy 802.3at PoE+ will not reliably power the camera at full feature set (zoom, IR, analytics). Verify your infrastructure before deployment—a single PoE++ injector or switch upgrade is easier than troubleshooting power-drop issues post-install.

Deployment Considerations:

• PoE++ infrastructure is mandatory. Legacy 802.3at PoE+ switches will appear to power the camera but may drop features under high zoom or full IR load. If you're upgrading network infrastructure, budget for 802.3bt-rated switches or injectors; the cost difference is modest (~$200–$400 per port) and eliminates post-install troubleshooting.
• The 31x zoom is powerful but requires stable mounting. On windy sites or flexible mounting poles, zoom micro-vibration can degrade image quality at telephoto ranges. Use rigid wall or pipe-mount hardware; avoid thin aluminum brackets. We've seen integrators spend hours troubleshooting focus drift that was simply a wobbly mount.
• Optical zoom and IR mode are independent—the camera seamlessly transitions from color to monochrome as light drops below threshold. However, color-mode zoom + IR simultaneously will increase power draw; monitor power consumption on the switch port if running 24/7 mixed-mode. Dynamic power mode (available in firmware) can reduce draw by ~30% during low-activity periods.
• ONVIF Profile M (advanced metadata) is required to stream object-detection metadata to the VMS; Profile S (basic streaming) will connect to any VMS but metadata will not flow to the recording system. Confirm your VMS supports ONVIF Profile M before specifying on-camera analytics as part of the alarm workflow.
• IP66/IK10 ratings are genuine—the camera tolerates direct rain and hose-down cleaning. However, avoid high-pressure spray directed at the optical turret seams; standard garden-hose pressure is fine. We've seen one or two cases of water ingress from power-washer misuse, so include a brief installation note for end-user cleaning procedures.

The Q6325-LE is the right camera for integrators building large-scale perimeter or parking-lot surveillance systems where zoom reach, low-light performance, and automated threat detection must justify the PoE++ infrastructure upgrade. If you're managing 16+ cameras with 24/7 recording or handling remote sites where external lighting is prohibitive, this camera's Lightfinder 2.0 and edge analytics pay for themselves within 2–3 years. For smaller deployments (4–8 cameras) or sites with existing external lighting, a lower-cost fixed PTZ or mini-dome may be more cost-effective. Explore the full range of outdoor IP options in the Axis catalog.
