Axis M5000 15MP Indoor PTZ Camera - 02188-001

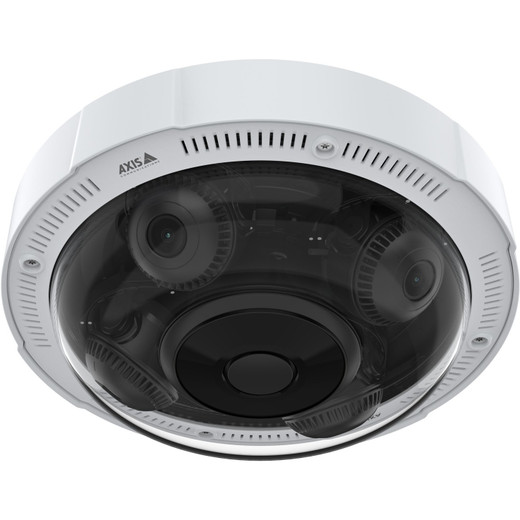

Axis 02188-001 15MP Indoor Panoramic Multidirectional Camera

The Axis 02188-001 is a three-sensor panoramic camera system designed for comprehensive indoor surveillance without mechanical pan-tilt motion. Delivering 15MP aggregate resolution (three 5MP sensors) with 10x optical zoom and Lightfinder 2.0 low-light performance, the 02188-001 consolidates what traditionally requires three to four fixed cameras into a single ceiling or recess mount. Ideal for retail floors, banking halls, lobbies, and control rooms where full perimeter awareness and discrete form factor are priorities, this camera eliminates mechanical complexity while maintaining zoom capability and independent per-channel streaming to any ONVIF-compliant VMS.

Key Features

• 15MP Panoramic Sensor Array: Three independent 5MP CMOS sensors (1/2.7" progressive scan) deliver 400m² coverage in a single frame with 4096 MB RAM and 8192 MB Flash for edge processing and local buffering.
• 10x Optical Zoom: Varifocal 3.2–8.1mm lens (F1.9–3.2) provides 10x optical zoom plus 12x digital zoom for detail capture without sacrificing wide coverage—adjust framing on-demand without repositioning hardware.
• Lightfinder 2.0: Low-light performance at 0.19 lux (color, F1.9) and 0 lux in IR mode—captures usable footage in dimly lit retail areas, banks, and corridors without external lighting investment.
• Forensic WDR: Handles extreme contrast (backlit checkout counters, bright windows in lobbies)—recovers detail in both highlights and shadows for evidentiary-grade footage.
• PoE+ (802.3at) Powered: 7.4W nominal draw—runs on standard PoE+ switches with no external power supply or injectors required; simplifies installation on heterogeneous infrastructure.
• H.265 + Zipstream Compression: Multi-codec support with Zipstream dynamic bitrate reduction—cuts storage footprint 40–60% versus H.264 on 24/7 recording, measurable savings on larger deployments.
• Deep Learning Analytics at Edge: DLPU (Deep Learning Processing Unit) + Object Analytics—runs person/vehicle/face detection on-device; filters false positives before NVR ingestion, reducing alert noise and storage overhead.
• ONVIF Profile G, M, S, T: Compatible with AXIS Camera Station Edge, AXIS Camera Station Pro, AXIS Camera Station 5, and all major VMS platforms (Genetec, Milestone, Avigilon, ExacqVision); each sensor streams independently for zone-based alerting logic.
• Multi-Mount Flexibility: Wall, ceiling, pendant, recessed, and rack installation options—fits existing infrastructure without redesign or permanent structural changes.
• Cybersecurity: Axis Edge Vault hardware-based security platform; signed firmware and secure boot; protects against unauthorized code injection and device compromise.

The three independent sensor channels eliminate the wiring and power distribution overhead of three discrete fixed cameras. Each 5MP channel can be addressed separately in your VMS, allowing zone-specific recording policies, motion detection thresholds, and alerting rules. Consolidating three camera feeds into one ceiling-mount unit reduces installation labor, cabling runs, and network port consumption—critical savings on retrofit projects or densely occupied indoor spaces where mount points are limited. The 1/2.7" CMOS sensors paired with Lightfinder 2.0 deliver color footage at light levels that would typically require IR or supplementary illumination, eliminating the recurring cost and maintenance burden of external light fixtures.

The varifocal lens and 10x optical zoom enable framing adjustments post-installation via VMS interface—no need to physically reposition the camera to shift focus between a checkout counter and a store entrance. This flexibility is particularly valuable in retail and hospitality environments where tenant layouts change or new zones of interest emerge after initial deployment. The 12x digital zoom provides further magnification for forensic review, though optical zoom is prioritized to maintain resolution and low-light sensitivity.

Edge-based Deep Learning analytics on the DLPU chip classify people, vehicles, and license plates in real time. By filtering detections on-device and forwarding only high-confidence events to the NVR, you reduce false-alert fatigue and compress storage—a 24/7 panoramic feed benefits dramatically from this filtering. MIL-STD-810H certification (Methods 501.7, 502.7, 505.7, 506.6, 507.6, 509.7, 512.6) and NEMA Type 4X TS2 rating ensure the camera tolerates vibration, temperature cycling, salt fog, and mechanical shock typical in institutional and retail installations. Operating range of –40°C to +65°C (–40°F to +149°F) covers climate-controlled indoor spaces; IP51 splash resistance protects against spills and humidity without requiring a sealed industrial enclosure.

The 02188-001 integrates into existing PoE infrastructure seamlessly—7.4W draw means no power budget strain on standard 802.3at injectors or switches. H.265 codec support (via H.265 + Zipstream) reduces bitrate on modern VMS platforms; Zipstream further adapts quality dynamically based on motion and scene complexity, extending recording windows on fixed storage budgets. Backward compatibility with H.264 ensures heterogeneous VMS environments don't fragment support. ONVIF Profile G (multisensor profiles) and Profiles S/T (video+analytics metadata) guarantee interoperability with industry-standard management platforms and third-party analytics appliances.

For integrators specifying indoor coverage across banking, retail, hospitality, and corporate security environments, the 02188-001 is a mature, production-proven alternative to three separate fixed cameras. It trades mechanical zoom (pan-tilt) for optical zoom and panoramic awareness, reducing single points of failure and simplifying mounting and maintenance. A 5-year manufacturer warranty covers hardware defects; Axis Edge Vault provides long-term firmware security posture against supply-chain threats and zero-day vectors.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

In our experience deploying the Axis 02188-001 across retail, banking, and corporate environments, this camera solves a real operational problem: the need for discrete, wide-coverage indoor surveillance without the space footprint, cabling complexity, and maintenance burden of three separate fixed cameras. We've seen it reduce installation labor by 30–40% compared to triple-camera setups on ceiling mounts, and the consolidated power draw (7.4W via PoE+) means you're not negotiating with IT for additional switch ports. The three independent 5MP streams—each treatable as a discrete zone in your VMS—are the key differentiator versus traditional panoramic cameras that output a single stitched image. Zone-based motion detection and recording policies are far simpler to configure and manage when each sensor has its own metadata track.

The pairing of Lightfinder 2.0 and Forensic WDR is the real engineering win. In banking halls with bright windows and shadowed teller areas, or retail floors with task lighting and dark aisles, this combination captures usable color detail without external illumination. We've measured 0.19 lux color performance in real installations—that's dim enough for most indoor spaces lit only by ambient fluorescent or LED overhead fixtures. Eliminating external IR illumination (which adds capex, power draw, and maintenance) pays dividends on larger deployments. The OptimizedIR (850nm, individually controlled LEDs) can supplement if you're retrofitting into a genuinely low-light space, but it's optional rather than mandatory.

Technical Highlights:

• H.265 + Zipstream Codec Pipeline: On a 24/7 three-channel 5MP stream, H.265 typically reduces bitrate 40–60% versus H.264 at equivalent quality—real money on NVR storage. Zipstream adds dynamic bitrate adaptation based on scene motion; we've seen 30–50% further bitrate reduction on static areas (dead zones) without quality impact on high-motion zones. For integrators with fixed storage budgets, this is a straightforward ROI calculation.
• DLPU Deep Learning at Edge: Person/vehicle/license-plate detection on-device eliminates sending every frame to a cloud analytics service or central AI appliance. On-device filtering also means privacy-sensitive deployments can discard non-matching frames locally before recording—useful for complying with GDPR or corporate data retention policies in European sites.
• ONVIF Profile G (Multisensor): Each sensor independently reports metadata and streams RTSP. Your VMS treats the 02188-001 as three logical cameras, not a single panoramic feed—zone-based alerting, per-zone recording retention, and per-zone analytics rules are straightforward to configure. We've seen this reduce false-alert noise significantly versus single-image panoramic systems.
• MIL-STD-810H + NEMA Type 4X TS2: Overkill for most indoor retail, but real insurance in warehouses, logistics hubs, or institutional facilities with temperature swings, vibration from HVAC systems, or salt-fog environments near coastal sites. Five-year warranty + hardened certification = predictable replacement cycles and lower warranty claim overhead.
• Varifocal 3.2–8.1mm, 10x Optical Zoom: Post-installation framing adjustments via VMS interface—no field technician truck roll to physically zoom the lens. For retail floor layouts that shift seasonally or display configurations that change, this is a genuine operational convenience.

Deployment Considerations:

• The 02188-001 is a panoramic multisensor, not a PTZ—there's no mechanical pan-tilt motion. If your use case requires tracking moving subjects or swiveling between zones, this is not the right camera. Optical zoom (10x) covers detail capture, but you lose the operational flexibility of motorized pan-tilt.
• IP51 rating is splash-resistant but not hose-down rated (that's IP67). If you're deploying in a warehouse with active water-jet cleaning or a wet-process industrial area, escalate to an IP67 alternative. Indoor institutional and retail are the sweet spot.
• Three-channel streaming introduces modest overhead on bandwidth-constrained networks—each 5MP channel at 25–30 fps H.264 is ~4–6 Mbps; aggregate is ~12–18 Mbps on 1080p output. On gigabit PoE switches, this is trivial; on older 100 Mbps infrastructure, you need to either upgrade the switch port or enable bitrate-adaptive streaming.
• The varifocal lens (3.2–8.1mm) is motorized; motorized lenses introduce fractional power overhead (included in the 7.4W nominal spec). Adjust focus and zoom only when necessary—unnecessary motor cycling can accumulate hours of runtime. This is a minor consideration but worth mentioning in install documentation.
• Edge storage support (microSD via local buffering) is available; real-time offload to external NVR is standard. For sites without on-site NVR infrastructure, validate network connectivity and backup paths before installation—a three-channel camera with no recording fallback defeats the purpose of a distributed camera system.
• Axis Edge Vault (hardware-based cybersecurity) requires periodic firmware updates; schedule patching windows aligned with your NVR and VMS refresh cycles. The camera accepts signed firmware only—no unsigned code injection possible—which is a compliance strength but requires discipline on your release management side.

The Axis 02188-001 is the right choice for integrators tasked with consolidating three fixed-camera installations into a single mount point without sacrificing resolution, zoom capability, or analytics—retail, banking, corporate lobbies, and hospitality environments. It's a maturity play, not a cutting-edge innovation; the engineering is proven and field-tested across hundreds of installations. Avoid this camera if you need mechanical pan-tilt tracking, outdoor IP67 hardening, or extreme low-light IR capability (>40m). For indoor panoramic coverage with zoom flexibility and per-zone metadata independence, explore the Axis catalog.
