Discontinued — No Longer Available New
This model has been discontinued by Axis. Shop current Axis products → or see the recommended alternatives below.

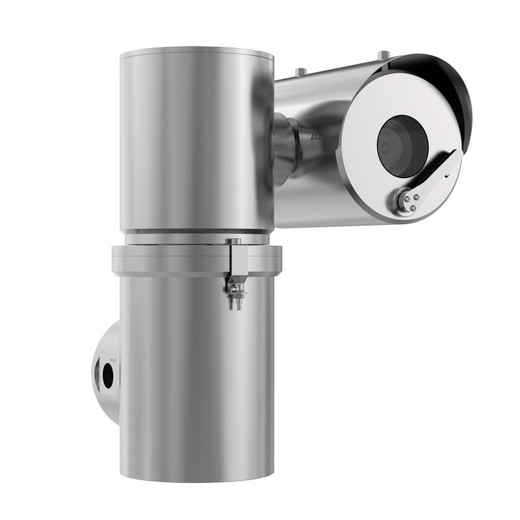

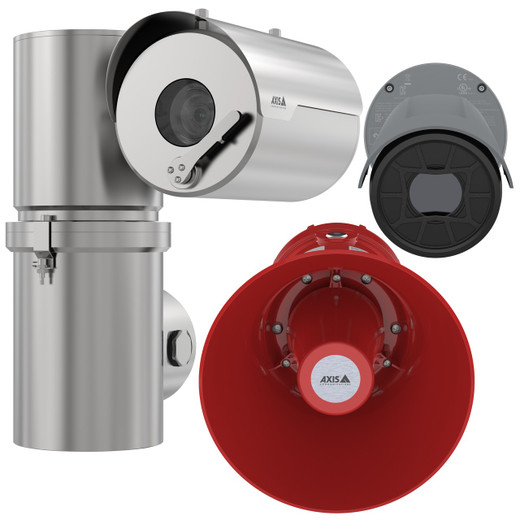

Axis XPQ1785 2MP Explosion-Protected PTZ Camera
The Axis XPQ1785 is a specialized 2MP PTZ IP camera engineered for hazardous environments where explosion protection is critical. Housed in durable stainless steel with IP66 rating, this camera is certified for Class I/II/III Division 1 and Zone 1/21 compliance, making it ideal for onshore, offshore, petrochemical, and heavy industrial applications requiring rigorous safety standards.
Key Features
- 2MP HDTV 1080p resolution at 50/60 fps for forensic-quality video capture
- 32x optical zoom with 4.3–137 mm focal length for extended surveillance range
- Continuous 360° pan and ±90° tilt for full situational awareness
- Explosion-proof stainless steel enclosure certified for hazardous zones
- Lightfinder technology for true-color imaging in low-light conditions (0.16 lux minimum illumination)
- Forensic WDR for balanced exposure in mixed lighting scenarios
- H.264 video compression with Zipstream support for efficient bandwidth utilization
- IP66-rated outdoor durability in extreme weather conditions
- DC power with PoE capability for flexible deployment
Technical Specifications
Imaging & Optics: 1/2.8" CMOS sensor delivers sharp detail across the 60–2.3° horizontal and 39–1.3° vertical field of view. The 32x optical zoom enables identification from significant distances without loss of clarity. Lightfinder and Forensic WDR ensure usable video across challenging lighting conditions typical of industrial sites.
Video Performance: 1920×1080 resolution at 50/60 fps provides smooth motion capture and clear frame-by-frame analysis. H.264 compression with Zipstream optimization reduces storage and bandwidth demands without sacrificing critical detail.
Durability & Compliance: IP66 rating and stainless steel construction withstand harsh outdoor environments, chemical exposure, and temperature extremes. Certification for Class I/II/III Division 1 and Zone 1/21 hazardous areas ensures compliance with ATEX and IEC directives.
Applications
- Oil and gas facilities (onshore and offshore platforms)
- Petrochemical and refining operations
- Mining and extraction sites
- Food processing plants with explosive atmospheres
- Grain storage and handling facilities
- Industrial manufacturing with flammable materials
The XPQ1785 addresses a niche but critical market segment: surveillance in ATEX-regulated hazardous environments. Its 32x optical zoom and PTZ capability provide operators with flexible coverage without requiring multiple fixed cameras, reducing installation complexity and cost. The combination of Lightfinder and Forensic WDR is particularly valuable in industrial settings where lighting conditions vary dramatically between day, night, and artificial illumination.
The narrow field of view (60–2.3° at max zoom) suits long-range perimeter and equipment monitoring typical in petrochemical facilities. Stainless steel construction resists corrosive salt-spray environments common on offshore installations. For organizations operating in Division 1 or Zone 1/21 areas, this camera eliminates the need for non-certified workarounds, ensuring regulatory compliance and operator safety.
