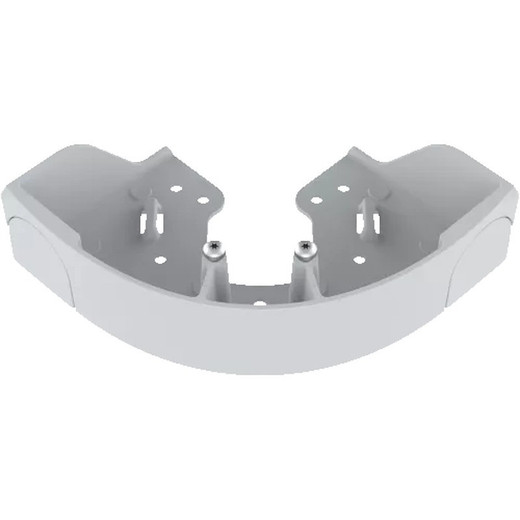

Axis 03391-001 TQ9602 Conduit Top Box Corner Mount
Overview
The Axis 03391-001 is a purpose-built cable management accessory for Axis IP cameras deployed in conduit-based surveillance systems. Unlike generic junction boxes, the TQ9602 is engineered specifically for ¾-inch standard conduit routing, with a corner-mounted form factor that simplifies cable transitions at building angles and edges. This reduces installation labor and minimizes cable stress at termination points—critical when you're running dozens of camera feeds through structured conduit runs in outdoor or high-security perimeter deployments.
Key Features
- Corner-Mounted Design: Aligns naturally with building geometry and conduit bends, eliminating awkward adapter chains. Saves installation time and reduces cable flexion at connection points, extending cable life.
- IP66 Rating: Dust-tight and resistant to high-pressure water jets (up to 100 bar). Means you can deploy this in exterior exposed locations without worry about rain ingress or dust contamination at cable terminations—skip this if you need full submersion protection (that requires IP67 or higher).
- Precision-Machined Metal Construction: Provides mechanical rigidity and thermal stability compared to plastic alternatives. Matters in thermal cycling environments where expansion/contraction can loosen connections.
- Vandal-Resistant Mechanical Design: No exposed fasteners or weak points. Suitable for perimeter installations where deliberate tampering is a threat model.
- Standard ¾-Inch Conduit Compatibility: Works with common commercial electrical conduit; no special fittings required. Integrates with existing building infrastructure without costly custom fabrication.
- Reduces Cable Stress: Structured cable entry minimizes sharp bends and loop radii violations. Extends cable and connector lifespan, reducing field failures and rework costs in multi-camera deployments.
Integration & Compatibility
The 03391-001 pairs with any network surveillance camera that uses standard Ethernet and power termination. It functions as a passive conduit junction—no power, no intelligence, pure cable organization. Works with both PoE-powered and separately powered camera installations. When selecting a network video recorder or switch to support your camera system, factor the TQ9602's role as a passive safeguard against cable damage; it cannot restore a crushed Cat6 or a connector bent during rough conduit pulls. Plan conduit runs with appropriate pulling lubes and follow NFPA guidelines for cable bend radius.
Deployment Context
Typical installations include outdoor perimeter fences, building corners with exposed conduit, and high-security facilities where cable management standards are strict. Multi-camera deployments with organized cable pathways benefit most—the corner-mount design consolidates four cable directions at building intersections, reducing clutter and improving troubleshooting visibility. For indoor wall-mounted cameras with loose cable management, the TQ9602 is overkill; reserve it for structured, conduit-based outdoor or semi-outdoor runs.
Frequently Asked Questions
Q: Is the Axis 03391-001 suitable for underground or buried conduit runs?
A: IP66 protection covers dust and high-pressure jets, but not sustained submersion. Buried conduits that may flood require IP67 or IP68 rated enclosures. Check with your conduit system supplier for water-sealed variants.
Q: Does the 03391-001 require any tools to install?
A: The 03391-001 is designed for standard conduit entry; tools depend on your conduit system. Most installations use basic wrenches or conduit fittings tools. Confirm with your electrical contractor or conduit supplier.
Q: Can I use the TQ9602 indoors?
A: Yes. The IP66 rating and vandal-resistant design are equally useful in indoor secure facilities with structured cable management. It's not required for indoor deployments, but it doesn't hurt.
Q: What's the maximum number of cables the 03391-001 can handle?
A: Cable capacity depends on conductor gauge and total cross-sectional area within the ¾-inch conduit. Consult the National Electrical Code (NEC) Article 348 for fill limits, or check with your conduit supplier or electrician.
Q: Is the 03391-001 corrosion-resistant in coastal or salt-spray environments?
A: The precision-machined metal construction handles general outdoor weathering. For aggressive salt-spray environments (ASTM B117), confirm material specifications with the manufacturer or consider protective coatings.
Q: Does the TQ9602 include weatherproof cable glands or connectors?
A: The 03391-001 is a passive junction box. Cable termination and gland selection are your responsibility. Plan to source IP66-rated weatherproof connectors or cable glands separately to maintain the IP66 rating at connection points.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Axis 03391-001 (often searched as 03391 001) solves a specific, real problem: messy cable routing at conduit transitions in outdoor surveillance builds. When you're pulling Cat6 through ¾-inch EMT or rigid conduit in a multi-camera perimeter deployment, corners and building angles create natural pinch points where cables bend sharply or get crushed during pulls. The TQ9602's corner-mount geometry absorbs that strain.
Technical Highlights:
- IP66 Rating: Dust-tight and jet-resistant enclosure means you don't need additional weatherproofing at the cable termination junction itself—just ensure your cable glands and connectors also meet IP66. Saves cost and complexity versus wrapping exposed junctions in silicone.
- Precision-Machined Metal: Rigidity matters in thermal cycling. Plastic junction boxes expand and contract asymmetrically in sun-exposed locations, loosening connectors. Metal construction maintains mechanical consistency across -40°C to 60°C operating ranges typical in outdoor sites.
- Standard ¾-Inch Conduit Fit: No proprietary fittings, no custom fab work. Installs into existing electrical infrastructure without retrofit costs or lead times.
Deployment Considerations:
- The 03391-001 is purely passive—it protects cables, it doesn't detect or correct cable faults. A crushed Cat6 from a rough conduit pull will still be crushed; this accessory just reduces the likelihood of that happening during installation and thermal cycling.
- Cable fill inside ¾-inch conduit is limited by NEC rules; confirm your conductor count and gauge fit before ordering. An overstuffed conduit will fray tempers and damage insulation.
Deploy the 03391-001 in any outdoor conduit-based camera system where cable management is audited or where thermal stress is high. It's the right choice for perimeter fencing, building-corner surveillance, and high-security facility installations where you expect the system to survive 10+ years without cable-related field service calls.
