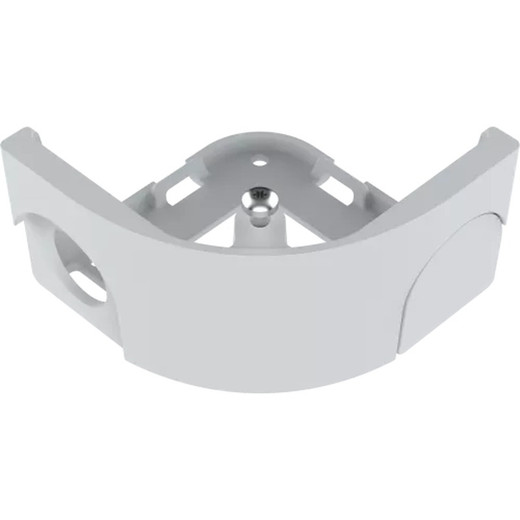

Axis 02866-001 TP9601 Conduit Top Box Corner Mount
The Axis 02866-001 TP9601 is a purpose-built cable management enclosure for professional surveillance deployments where organized, secure routing of network and power lines is critical. Mounting at building corners minimizes visual footprint while providing a dedicated raceway for multiple cable runs through standard ¾″ conduits — the form factor matters because corner placement frees up wall and ceiling real estate for camera coverage and reduces clutter at cable aggregation points.
Key Features
- Corner-mounted design: Positions the enclosure at a structural corner where cables naturally converge, reducing installation complexity and eliminating the need for separate wall-mounted junction boxes. This placement strategy is standard in retail and perimeter installations where cable runs must follow building edges.
- ¾″ conduit compatibility: Accepts standard electrical conduit sizing, meaning you can tap directly into existing infrastructure on warehouses, office buildings, and outdoor perimeter installations without custom adapters or resizing. One less variable in your bill of materials.
- Vandal-resistant construction: Materials and fastening are engineered to resist tampering and environmental stress — relevant for outdoor sites and facilities where cameras and junction points face exposure to weather, UV, or deliberate interference. Not a substitute for a locked cabinet, but deters casual disturbance.
- Indoor and outdoor rated: The enclosure handles temperature swings and moisture exposure typical of sheltered outdoor locations (eaves, covered loading docks, building overhangs). Do not expect it to withstand full weather exposure; use an IP-rated cabinet for unprotected exterior walls.
- Professional-grade cable organization: Internal geometry provides space to route multiple cables without kinks, pinches, or confusion — matters because disorganized cable bundles at conduit entry points lead to troubleshooting delays and service calls when a run needs replacement or re-termination.
- Minimal visual impact: Compact form factor integrates with building architecture rather than standing out as a security fixture, which is a consideration in retail, educational, and corporate campuses where aesthetics factor into approval workflows.
Integration & Compatibility
The TP9601 (model 02866-001) works with Axis IP surveillance systems and integrates into broader conduit and cable management infrastructure. Because it is a passive cable raceway — not a powered junction or PoE injector — compatibility is universal across any vendor's cameras or network video recorders that you deploy downstream. The corner-mount style pairs naturally with standard building code practices for cable routing in surveillance system planning, particularly in retrofit scenarios where running new conduit is cost-prohibitive.
Installation assumes familiarity with conduit termination and standard fastening to building structure. Outdoor corner locations require attention to water shedding and cable entry sealing — silicone-based conduit sealants are recommended to prevent moisture ingress at the box-to-conduit joint.
The 02866-001 does not provide power distribution, surge protection, or cable authentication — it is a routing enclosure only. If PoE+ aggregation or secondary protection is required, pair this with a managed Ethernet switch or PoE injector installed elsewhere in your rack.
Deployment Context
Typical use cases include retail environments where cameras feed back to a central NVR through overhead or wall conduit runs, warehouse perimeter installations where multiple cable bundles converge at building corners, and office complexes where security cameras and access control lines share infrastructure. The corner mounting reduces visual clutter in spaces where aesthetics matter alongside surveillance coverage.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Axis 02866-001 TP9601 is a no-nonsense cable raceway — not glamorous, but critical in any large surveillance rollout where you're running 6+ camera feeds through conduit. The corner-mount geometry is smart: it reduces the footprint at cable aggregation points and plays nicely with standard building code compliance for cable routing.
Technical Highlights:
- ¾″ conduit sizing: Matches standard electrical infrastructure, eliminating custom adapters and reducing labor time on installation. You're using what's already in the building code.
- Vandal-resistant materials: Designed to handle outdoor exposure and deliberate interference — not Fort Knox, but a genuine deterrent against casual tampering or environmental stress.
- Corner placement: Reduces visual footprint and cable confusion at aggregation points. Critical in retail and office deployments where aesthetics matter.
Deployment Considerations:
- The 02866-001 is a passive enclosure — no power distribution, surge protection, or circuit management. You're buying cable organization, not cable defense. Pair it with a PoE+ switch or managed injector for power control.
- Outdoor corner installations require silicone-based conduit sealants at the entry point. Water ingress at the box-to-conduit joint will find every camera on that run.
Deploy this in retail camera rollouts, warehouse perimeter systems, and office complexes where multiple runs converge at corners and building code compliance is non-negotiable. Skip it if you need active junction functionality; use a managed switch instead.
Frequently Asked Questions
Q: Can the TP9601 (02866-001) be used outdoors?
A: Yes, it is rated for indoor and outdoor installation in sheltered locations (eaves, covered loading docks, overhangs). For full weather exposure on open walls, use an IP-rated enclosure. Seal conduit entry points with silicone-based sealant to prevent moisture ingress.
Q: What size conduit does the 02866-001 support?
A: The TP9601 accommodates ¾″ conduit, the standard size used in most commercial surveillance and electrical infrastructure. This compatibility means you can tap directly into existing building conduit runs without adapters.
Q: Does the TP9601 include power distribution or surge protection?
A: No. The 02866-001 is a passive cable raceway and organization enclosure. It does not provide PoE, power filtering, or surge suppression. Install a managed PoE switch or surge-protected injector elsewhere in your system if those functions are needed.
Q: Is the corner-mount design compatible with any camera brand, or just Axis?
A: The TP9601 is a passive cable conduit — it works with any vendor's surveillance system. It is not camera-specific and will integrate with Axis, Hikvision, Dahua, Hanwha, or any IP system using standard Ethernet and power cabling.
Q: What tools or fastening hardware are required to install the 02866-001?
A: Installation requires standard conduit termination tools and building fasteners (bolts or screws appropriate to your corner structure). Consult the Axis installation guide for specific fastening locations and torque specifications.
Q: Can multiple TP9601 boxes be chained together on the same conduit run?
A: The 02866-001 is designed as a single aggregation point. If you require multiple junction locations along a long conduit run, use separate boxes or a larger centralized raceway system.
