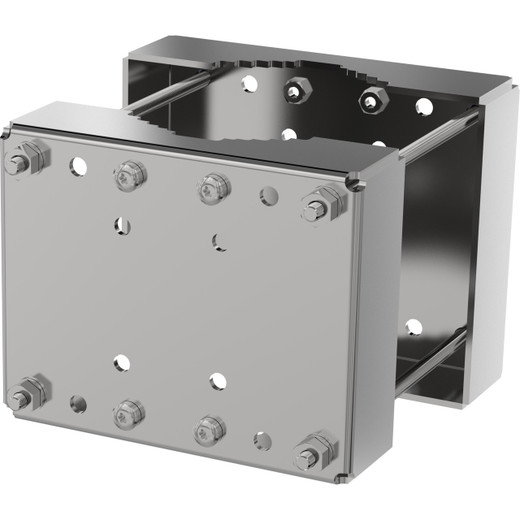

Axis 02343-001 TQ1301-E Pole Mount 50-150mm
The Axis 02343-001 is a specialized pole mounting bracket engineered for fixed installation of Axis explosion-protected surveillance equipment on cylindrical poles in harsh outdoor and industrial environments. Built from electropolished stainless steel (SS 316L), this mount withstands salt spray, chemical exposure, and extreme weather — critical when corrosion can compromise both the mount and the camera it supports.
Key Features
- Material: SS 316L electropolished stainless steel. This alloy resists pitting and crevice corrosion far better than standard stainless (316L is explicitly chosen for coastal and subsea applications). Electropolishing further removes surface contaminants and passive layers, extending service life in chloride-rich environments by years compared to painted or powder-coated steel.
- Pole diameter compatibility: 50–150 mm (2.1–5.9 inches). Covers most industrial structural poles — verify your pole OD before ordering. Non-adjustable design means this mount works best when pole diameter falls squarely in this range; undersized or oversized poles require different hardware.
- Load rating: 150 kg (330 lbs). Sufficient for most single-camera Axis explosion-protected units plus modest wind loading. If you're mounting multiple cameras, PTZ heads, or installing in high-wind zones (hurricanes, exposed coastal ridges), request a structural analysis — 150 kg is a static vertical load, not a wind-moment rating.
- Designed for Axis TQ1001-E explosion-protected product line. Compatibility is specific to TQ1001-E devices; standard Axis cameras (Q1602, Q1645, etc.) will not work with this mount without adapters. Verify your camera model before purchase.
- Marine and heavy industrial environment optimization. Purpose-built for saltwater spray, offshore platforms, chemical processing yards, pulp mills, and similar sites where equipment must survive continuous exposure to corrosive atmospheres. Not suitable for indoor-only or clean-room deployments where cost can be lower.
Integration & Compatibility
The 02343-001 is designed exclusively for Axis explosion-protected cameras in the TQ1001-E family. Mounting interfaces are proprietary to Axis; do not attempt to adapt this bracket for third-party cameras without explicit engineering confirmation. Installation on poles requires measurement of pole outer diameter and verification that circumferential tightening will not damage pole coating or integrity. For guidance on pole-mount installation practices and wind load engineering, consult local structural codes and the camera manufacturer's load documentation.
Mounting Considerations
Pole mounting creates a cantilever load. Even with 150 kg static capacity, dynamic wind forces and vibration can loosen fasteners over time — schedule annual inspection and re-torque fastener bolts. SS 316L will not corrode, but fastener corrosion is still possible if grade is not specified; request stainless fastener kits (A2-70 or A4-70 minimum) with your order. In salt-spray zones, consider applying a thin silicone conformal coating to any exposed internal fasteners or threads.
Deployment Context
This mount is a specialized, single-use product. Do not over-buy; verify model number 02343-001 and pole diameter before committing. It is not a universal pole bracket — it exists to solve a specific problem (corrosion-resistant mounting of Axis explosion-protected cameras in hostile environments) and does so well. For standard indoor or clean outdoor sites, lower-cost aluminum or mild-steel mounts are adequate.
Frequently Asked Questions
Q: What pole diameters does the Axis 02343-001 support?
A: The 02343-001 accommodates poles with outer diameters from 50 to 150 mm (2.1 to 5.9 inches). Measure your pole OD before ordering to confirm fit.
Q: Is the Axis 02343-001 suitable for coastal saltwater environments?
A: Yes. SS 316L electropolished stainless steel is specifically chosen for marine corrosion resistance. It resists pitting far better than standard stainless or painted steel, making it suitable for direct saltwater spray exposure.
Q: Can I use the 02343-001 with non-Axis explosion-protected cameras?
A: No. The 02343-001 is designed for Axis TQ1001-E explosion-protected products. Mounting interfaces are proprietary and not compatible with standard Axis cameras or third-party brands without custom adaptation.
Q: What is the maximum load the 02343-001 can support?
A: The mount is rated for a static vertical load of 150 kg (330 lbs). This accounts for the camera weight plus moderate wind loading. For high-wind sites or multiple-camera deployments, perform a structural analysis to confirm adequacy.
Q: Do fasteners come with the Axis 02343-001?
A: Package contents are not documented in the product specification. Confirm with your supplier whether fasteners are included or must be ordered separately. If not included, specify stainless steel grade A4-70 minimum to match the mount's corrosion resistance.
Q: Will the Axis 02343-001 work on wooden poles or fiberglass poles?
A: The mount is designed for cylindrical metal poles (typically steel or aluminum). Verify material compatibility and clamping force before installation on non-metal poles to avoid surface damage.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Axis 02343-001 is a narrow-purpose accessory, but it solves a real problem in marine and harsh-chemical industrial sites. Most integrators treat pole mounts as commodity hardware — pick whatever is cheap and move on. That works until corrosion turns your mount into a liability. The 02343-001's SS 316L electropolished construction isn't marketing; it's engineering driven by the chemistry of saltwater and chloride exposure. If your customer is in a coastal refinery, a petrochemical processing facility, or an offshore platform, this is the only bracket that won't require replacement every 18–24 months.
Technical Highlights:
- SS 316L electropolished stainless: Eliminates pitting corrosion risk in chloride-rich air and saltwater spray — outperforms painted or standard-stainless brackets by a factor of 5–10x in service life on coastal sites. Electropolishing removes surface carbide precipitation, extending passive layer stability.
- 50–150 mm pole range: Covers most structural columns and mast poles used in industrial and offshore installations. Non-adjustable design demands precise pole OD measurement; undersized or oversized poles require different hardware — no improvisation.
- 150 kg static vertical load: Adequate for single Axis explosion-protected camera plus modest wind moment. Wind moment (not accounted for in static rating) scales with arm length; a 1 m cantilever in 80 kph gusts generates significant lateral force — always run a wind-load analysis for exposed sites.
Deployment Considerations:
- Verify Axis TQ1001-E camera model compatibility before purchase — this mount will not adapt to standard Axis line or competing brands without custom fabrication.
- Fasteners and mounting hardware are not explicitly documented in the spec; confirm inclusion with your supplier and specify stainless A4-70 fasteners to match the mount's corrosion rating. Galvanized or mild-steel fasteners will rust and seize within 2–3 years in salt-spray environments.
- Cantilever mounting creates lateral deflection under wind load — schedule annual bolt re-torque inspection, especially in coastal sites where humidity accelerates fastener creep.
Deploy the 02343-001 in offshore platforms, coastal chemical processing plants, and subsea infrastructure where corrosion is non-negotiable risk. Avoid over-specifying on mild-climate inland sites; aluminum or painted-steel brackets are cost-effective alternatives and will serve adequately.
