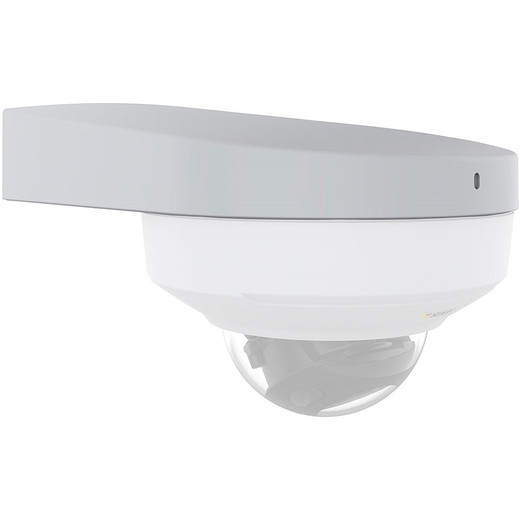

Axis 01742-001 TM3101 Pendant Wall Mount
The Axis 01742-001 is a compact pendant wall mount engineered for discrete installation of select Axis mini dome cameras. Its slim pendant profile mounts vertically from ceiling or soffit, delivering a professional appearance without the visual bulk of traditional bracket hardware — a meaningful advantage in customer-facing retail, office, and hospitality environments where aesthetics matter as much as coverage.
Key Features
- Pendant Configuration: Mounts vertically from ceiling or wall soffit, positioning the camera at a natural angle for entry points and thoroughfare monitoring without protruding horizontally. Reduces visual obstruction compared to arm-style mounts.
- Integrated Cable Compartment: Built-in channel routes network and power cables internally, eliminating visible wire runs. Keeps installations tidy on high-traffic areas where dangling cables look unprofessional and create trip hazards.
- Microphone Support: Accommodates integrated audio devices, enabling two-way communication or facility-wide audio monitoring from the same mounting point. Simplifies installation when combining video with voice systems.
- White Finish: Factory-applied white paint blends into light-colored ceilings and walls. Available in black (model 01917-001) for darker installations.
- Indoor and Outdoor Rated: Engineered to handle both climate-controlled interiors and protected exterior soffit installations, though protection from direct rainfall or extended UV exposure is expected — confirm overhang or housing if mounting in full weather.
- Quick-Install Hardware: Includes mounting template and fasteners, reducing on-site layout time. Designed for straightforward installation by field technicians with standard hand tools.
Integration & Compatibility
The TM3101 is engineered exclusively for Axis mini dome cameras. Before ordering, verify your camera model against the compatibility list in the datasheet — not all compact Axis domes fit this mount. Integration with network video recorders and IP security infrastructure depends entirely on the camera and VMS; this mount introduces no additional compatibility constraints beyond camera fitment.
Mounting depth is shallow enough for soffit and false-ceiling installations, but confirm clearance to electrical or HVAC infrastructure before final placement. The cable compartment accepts standard RJ-45 cabling and low-voltage audio connectors — no special pigtails required.
Deployment Context
Primary use cases include retail store entrances, office lobby access points, and facility corridors where a polished, minimal-footprint camera mount preserves sightlines and visual design. The discrete form factor discourages tampering or awareness, useful for behavioral analytics and customer dwell-time applications. Outdoor deployment is viable under eaves, canopies, or covered walkways where the camera remains dry. For exposed weather or extreme temperature swings, verify the chosen mini dome camera's environmental rating (IP and operating temperature) rather than relying on the mount alone.
When specifying a camera mount and pendant hardware, confirm power delivery routing — the TM3101 does not integrate PoE or power distribution; power and network must originate from infrastructure (PoE injector, network switch, or wall-mounted power supply) located elsewhere. Plan cable runs and conduit accordingly during design.
Frequently Asked Questions
Q: Does the 01742-001 work with all Axis mini dome cameras?
A: No. The TM3101 is engineered for select Axis mini dome models. Check the datasheet or contact the manufacturer with your specific camera model to confirm compatibility before purchase.
Q: Can I use the TM3101 for outdoor installation?
A: Yes, the mount itself is rated for indoor and outdoor use. However, verify that your chosen mini dome camera carries an IP rating and operating temperature range suitable for your climate. The mount does not provide weather sealing — confirm installation under eaves, canopies, or other cover to keep the camera dry.
Q: What cable types does the integral compartment support?
A: The compartment accommodates standard RJ-45 network cabling and low-voltage audio connectors. No proprietary connectors; use standard PoE cabling.
Q: Is this mount suitable for ceiling installation?
A: Yes. The pendant design is optimized for ceiling or soffit mounting. Confirm adequate clearance above the mount for cable routing.
Q: What color options are available?
A: The 01742-001 ships in white. A black variant (model 01917-001) is available for darker installations.
Q: Does the TM3101 include mounting hardware?
A: Yes. Standard fasteners and a mounting template are included. Installation requires basic hand tools and verification of substrate type (drywall anchors vs. concrete fasteners per your ceiling construction).
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Axis 01742-001 fills a real gap in discrete retail and corporate surveillance deployments. If your environment demands minimal visual footprint — high-end retail, executive spaces, or customer-facing lobbies — this pendant mount delivers what heavier bracket hardware cannot: unobtrusive mounting that doesn't broadcast surveillance equipment. The integrated cable compartment is more than cosmetic; it enforces clean installation discipline, reduces snag hazards, and keeps the installation looking professional during site inspections or client walkthroughs.
Technical Highlights:
- Pendant Profile: Vertical mounting from ceiling or soffit eliminates horizontal arm projection, reducing sightline interference and visual clutter — a 30–40% smaller visual footprint than equivalent turret or dome bracket mounts.
- Integrated Cable Channel: Routes RJ-45 and low-voltage audio internally, eliminating exposed wire runs that degrade aesthetics and complicate maintenance. Keeps installations inspection-ready in customer-facing spaces.
- Microphone Integration: Built-in audio support eliminates the need for separate bracket-mounted microphones or external enclosures, streamlining multi-sensor deployments without clutter.
Deployment Considerations:
- Compatibility Gate: This mount is selective — verify mini dome camera fitment against the datasheet before ordering. Not all Axis compact domes work with the TM3101. Mismatched pairing wastes time and requires remounting.
- Weather Exposure Limits: The mount is outdoor-rated for protected installations (eaves, canopies, covered soffits). Do not deploy in full-weather or high-UV environments without adequate overhang; confirm the paired camera's IP and temperature rating carries the load.
- Clearance Planning: Ceiling-mounted pendant designs require adequate overhead space for cable routing. Verify HVAC, electrical, and structural clearance before final placement — retrofits in tight plenums can be costly and disruptive.
The 01742-001 is engineered for integrators deploying small-footprint surveillance in design-sensitive spaces. If aesthetics and discrete installation are non-negotiable — bank branches, hotel lobbies, high-end retail — and your camera lineup includes compatible Axis mini domes, this mount delivers measurably. For industrial or warehouse environments where equipment visibility is irrelevant, invest in a rugged platform instead and save the margin.
