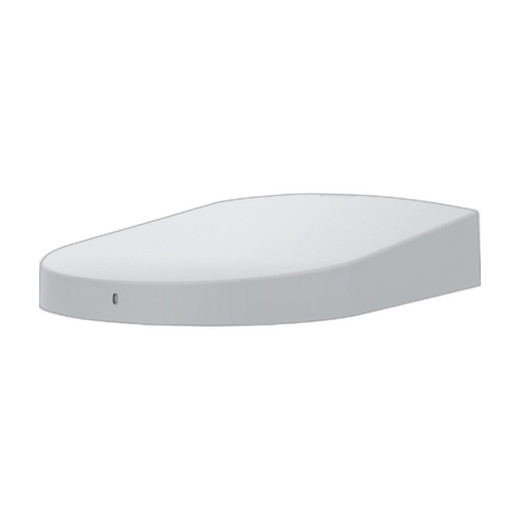

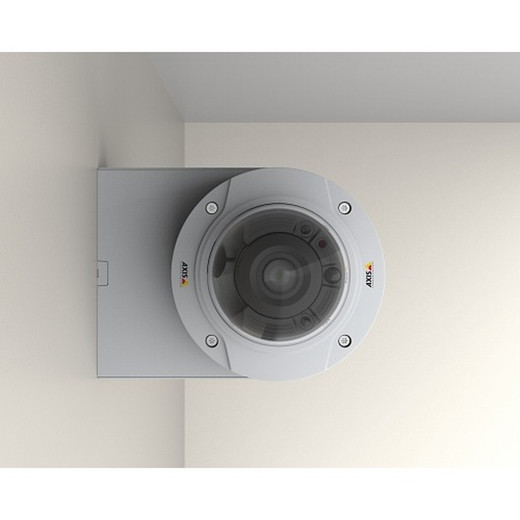

Axis 01783-001 TP3101 Pendant Wall Mount
The Axis 01783-001 is a purpose-built pendant mounting solution for select Axis dome cameras, specifically the M32-LVE and P32-series models. If your deployment prioritizes aesthetic integration and cable management in indoor environments—retail, corporate offices, education, hospitality—this accessory eliminates visible mounting hardware while maintaining full operational flexibility.
Key Features
- Pendant design with concealed mounting hardware: No visible fasteners means the camera assembly blends with ceiling and architectural finishes rather than announcing itself. Matters in customer-facing spaces where surveillance must not dominate the visual field.
- Strengthened eco-friendly plastic construction: Durable thermoplastic housing reduces weight compared to metal equivalents, simplifying installation on drywall or composite ceilings without requiring heavy-duty anchors. Material withstands typical indoor UV exposure and temperature variance without brittleness.
- Integrated auxiliary device cavity: Built-in space accommodates Axis modules including the T6101 (microphone), T8643 (I/O relay module), and I/O Indication LED. This consolidates audio and control signals within the mounting assembly—reduces dangling cables, lowers installation labor, and simplifies future upgrades without remounting the camera.
- Direct compatibility with M32-LVE and P32-V/-LV models: Designed to match the mechanical interface and aesthetic of these specific dome form factors. Prevents field-fitment issues common with universal mounts and ensures proper camera alignment without shimming.
- Simplified cable routing: Pendant geometry inherently guides cabling downward through the mount body, reducing visible dropouts and simplifying future maintenance access.
- Minimal footprint: Compact hanging profile suits tight ceiling plenums and low-profile installations where turret or bracket mounts would create clearance conflicts.
Integration & Compatibility
The 01783-001 is engineered specifically for Axis M32-LVE and Axis P32-V and P32-LV dome cameras. Do not force-fit to other dome lines; mechanical tolerances are tight. Verify your camera model before ordering. The mount supports integration of Axis auxiliary modules: the T6101 audio input module (for two-way audio or event-triggered recording), the T8643 I/O relay (for door control or alarm signal relay), and the I/O Indication LED (status feedback). This modular approach means you can configure the pendant post-deployment without removing the camera from the ceiling.
When selecting a mount for a larger dome camera deployment, consider whether your NVR or VMS will benefit from integrated audio or I/O signaling. If your specification requires neither, a simpler fixed mount may reduce cost without sacrificing function.
Frequently Asked Questions
Q: Is the Axis 01783-001 suitable for outdoor use?
A: No. The mount is rated for indoor environments only. The eco-friendly plastic housing is not UV-stabilized or sealed for direct rain or high humidity. If you need outdoor pendant mounting, consult Axis outdoor mount options or consider a wall-mount bracket rated for your environmental class.
Q: Can I use the 01783-001 with other Axis dome cameras?
A: The mount is designed specifically for M32-LVE and P32-V/-LV dome models. Do not assume compatibility with other lines—mechanical fit and alignment depend on exact camera form factor. Verify your model number before purchase.
Q: What auxiliary modules can mount inside the 01783-001?
A: The built-in cavity supports the Axis T6101 (audio input), T8643 (I/O relay), and I/O Indication LED. Confirm availability of these modules for your region and verify they are in stock if you plan to bundle them with the mount.
Q: Does the mount include installation hardware?
A: Consult the Axis product datasheet for a complete parts list. Typical pendant mounts ship with ceiling brackets, fasteners appropriate to drywall or tile, and alignment templates. Exact contents vary by shipment; verify with your vendor.
Q: What ceiling anchors are recommended for the TP3101?
A: The pendant assembly itself is lightweight (specific weight available in the datasheet), but use expansion anchors or toggle bolts rated for the combined weight of the mount, camera, and any auxiliary modules. Standard drywall anchors often suffice for typical indoor dome installations. Consult the installation guide.
Q: Can I add the T6101 microphone module after initial installation?
A: Yes. The cavity is designed for post-deployment module addition. You will not need to remount the camera. Ensure power and cabling for the module are pre-run or routed through the pendant body before final commissioning.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Axis 01783-001 is a focused accessory—not a universal mount. It solves a specific problem: how to install an M32-LVE or P32-series dome camera without visible fasteners, while preserving the option to add audio or relay modules post-deployment. If aesthetics and modular expansion matter in your project, this pendant design pays dividends. If you're deploying a one-off camera on a warehouse wall where visual discretion is irrelevant, spend your budget elsewhere.
Technical Highlights:
- Consolidated auxiliary cavity: Integrates T6101 audio, T8643 I/O relay, and LED status indication without dangling sub-assemblies. Reduces cable count and simplifies future upgrades—you add modules inside the mount without camera removal.
- Strengthened eco-friendly plastic: Lightweight thermoplastic (exact weight in datasheet) means standard drywall anchors handle the assembly. No need for heavy-duty ceiling bracing on typical commercial ceilings. Material retains rigidity indoors without environmental degradation typical of low-cost PVC alternatives.
- Concealed fastener design: Eliminates visible screws and brackets—critical in retail, hospitality, and corporate spaces where surveillance discretion is a business requirement, not an afterthought.
Deployment Considerations:
- Model-specific fit: Do not assume this mounts other Axis domes. M32-LVE and P32-V/-LV only. Field retrofits to wrong models result in misalignment and customer callbacks.
- Indoor-only rating: No UV stabilization or rain sealing. Outdoor pendant installations require a different accessory. Verify before specifying into humid industrial or semi-outdoor environments.
- Auxiliary module pre-planning: If your spec calls for audio or I/O relay, confirm T6101 and T8643 availability and lead time before mounting. Adding them post-deployment is feasible but requires advance cabling.
Position the 01783-001 in white-collar and retail surveillance projects where the camera must disappear into the ceiling architecture. For warehouse, factory, and outdoor coverage, simpler wall or corner mounts are often a better fit and cost less. The pendant pays for itself only when aesthetic integration is a documented requirement.
