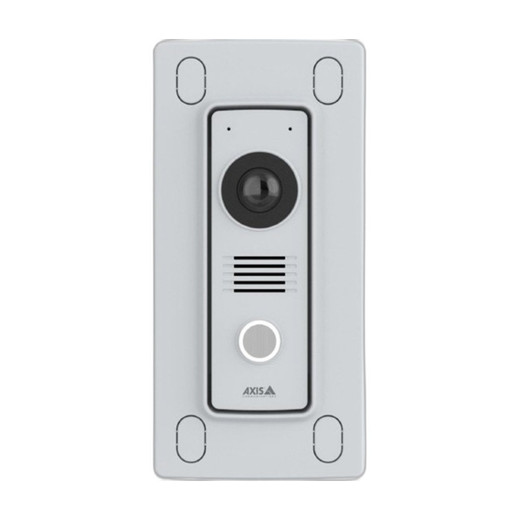

Axis 02561-001 TI8204 Recessed Mount White
Overview
The Axis 02561-001 is a recessed wall mount engineered for flush integration with the Axis I8116-E network intercom. This mounting system delivers a clean installation that sits seamlessly into wall cavities without the visual bulk of surface-mounted brackets. If your deployment requires intercom hardware to blend into interior office spaces or exterior building facades, this accessory eliminates the exposed metal look while maintaining full environmental durability.
Key Features
- Recessed Wall Mounting: Sits flush into wall cavities — the intercom body integrates directly into the wall rather than jutting outward. Reduces visual clutter and accident hazards from protruding hardware, particularly in high-traffic areas like retail floors, hallways, and public facilities.
- IP65 Environmental Rating: Dust-tight and protected against low-pressure water jets from any direction. This means direct rainfall, washdown spray, or dusty warehouse environments won't degrade electrical connections or internal hardware. Skip this mount if you need full submersion protection (IP67).
- IK07 Impact Resistance: Withstands 2 kg impacts at 0.5 m — moderate protection against accidental bumps, kicks, or contact with equipment. Not designed for high-abuse environments; if the mount will see regular heavy impacts, IK08 or IK10 ratings provide better safety margins.
- Powder-Coated Aluminum Construction: Chromate aluminum with powder coating in white (NCS S 1002-B) resists corrosion and weathering in both indoor and outdoor installations. The finish maintains appearance over years without repainting or replacement, reducing long-term maintenance cycles.
- Lightweight Design (280 g): Low weight reduces installation labor and eliminates the need for heavy-duty wall anchors in standard drywall or masonry. Simplifies wall preparation and allows one technician to position and secure the unit without assistance.
- Environmentally Compliant Materials: PVC and BFR/CFR free construction aligns with sustainability policies and disposal regulations, particularly important for organizations with corporate environmental commitments or deployment in regulated sectors.
- NEMA 250 Type 4X Protection: Delivers corrosion resistance and environmental sealing equivalent to IP65, with explicit suitability for both indoor and outdoor locations. Complements the IP65 rating for non-incendive environments.
Integration & Compatibility
This mount is purpose-designed for the AXIS I8116-E network intercom. Verify your intercom model before ordering — mounting hardware and cavity dimensions are specific to this device. Installation requires a wall cavity sized to accommodate the recessed housing, typically 86 mm × 86 mm × 75 mm (3.4" × 3.4" × 3.0") or similar based on final mounting template. Standard drywall can accept this cavity with a cut-out template and dry-wall anchors; masonry installations may require carbide bits and stud mounting.
Typical Deployments
Recessed mounting excels in corporate offices with open-plan aesthetics, retail spaces where visual minimalism is valued, apartment buildings or multi-tenant facilities where a uniform, professional appearance matters, and public buildings where exposed hardware creates visual clutter. The white finish complements modern interior design and reduces contrast against standard wall colors.
Frequently Asked Questions
Q: Is the Axis 02561-001 suitable for outdoor installation?
A: Yes. The IP65 rating and powder-coated aluminum construction support outdoor use, including direct rainfall and washdown environments. However, avoid full submersion or high-pressure jets above typical rain intensity.
Q: What is the warranty on the 02561-001?
A: The mount includes a 3-year manufacturer warranty covering defects in materials and workmanship.
Q: Can the mount be installed in masonry or concrete walls?
A: Yes, but installation requires carbide masonry drill bits and appropriate anchors rated for the wall material. Verify cavity depth and dimensions match your wall thickness before cutting.
Q: Does the 02561-001 come with a mounting template?
A: Consult the mounted intercom documentation or your installation partner for the precise cavity template. Standard cavity sizes for recessed intercom mounts are typically 86–100 mm on each side.
Q: What is the maximum weight the mount can support?
A: The mount supports the AXIS I8116-E (lightweight network intercom). Do not exceed the weight of the intended intercom device. Check the I8116-E specifications for exact weight limits.
Q: Is installation labor required, or is this a DIY product?
A: Recessed mounting requires wall cavity preparation (drywall cutting, drilling, or masonry work) and electrical wiring to the intercom. Professional installation is recommended unless you have experience with in-wall cavity work and low-voltage cabling.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Axis 02561-001 solves a real aesthetic problem in intercom deployments — exposed surface mounts read as industrial and often clash with modern office or retail design. The recessed approach with this white-finish aluminum bracket lets you integrate the I8116-E directly into the wall plane, keeping the visual footprint minimal while delivering full environmental protection.
Technical Highlights:
- IP65 + IK07 Ratings: Dust-tight protection and 2 kg impact resistance mean the mount handles warehouse spray-down or outdoor weather without corrosion or water ingress. Your intercom connections stay dry and functional year-round.
- Chromate Aluminum Powder Coating: Standard corrosion mitigation — aluminum alone oxidizes and dulls; powder coating adds a hard, UV-stable finish that resists both salt-air and industrial chemical exposure over a 3–5 year lifecycle.
- 280 g Weight: Light enough that standard wall fasteners (drywall anchors or masonry plugs) handle it without overloading. No special structural reinforcement needed in typical office or retail walls.
Deployment Considerations:
- Wall Cavity Preparation: Recessed mounting requires cutting a cavity into drywall or masonry. This is not a surface-mount bracket — you will need a layout template, a drywall saw or carbide bit, and careful measurement. Botched cavity cuts can require patching and repainting.
- IK07 Impact Limit: Two-kilogram impacts are moderate. If your deployment is in a high-traffic dock, manufacturing floor, or warehouse where fork lifts or carts move near walls, consider whether IK07 provides enough margin. IK08 or IK10 mounts exist in other product families and offer higher abuse tolerance.
Best fit: corporate office lobbies, retail storefronts, apartment entry intercoms, and public facilities where design continuity and professional appearance matter as much as durability. Skip this if you need rapid surface-mount installation or maximum impact resistance in active industrial environments.
