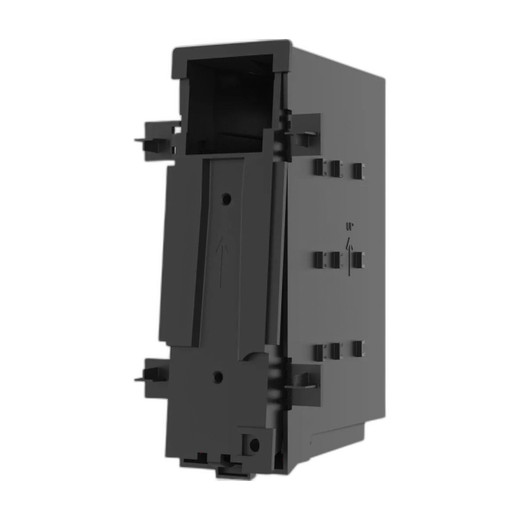

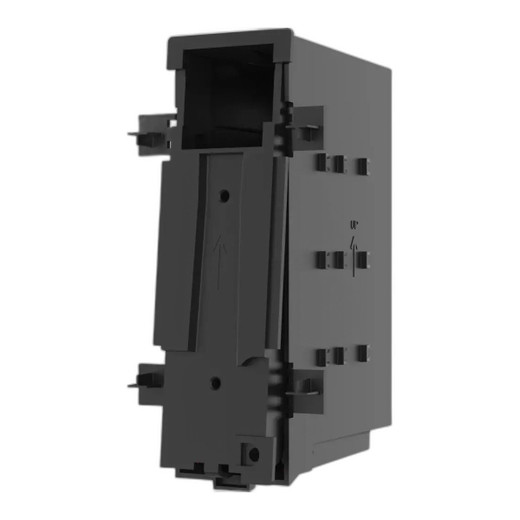

Axis 03092-001 TA4602 Recessed Wall-Mount Back Box
The Axis 03092-001 is a recessed wall-mounted back box engineered to organize access control infrastructure inside wall cavities. Its core function is straightforward: create a professional termination point for cables, connectors, and mounted components so they remain hidden behind finished drywall—eliminating exposed wiring clutter and reducing the risk of infrastructure damage during facility maintenance or cleaning cycles.
Key Features
- Recessed cavity design: Mounts flush within standard stud-framed wall construction. This keeps cables and connectors routed inside the wall rather than running visibly across the surface. Result: cleaner appearance in customer-facing areas, reduced trip hazards from surface-mounted conduit, and lower likelihood of accidental disconnections from foot traffic or equipment movement.
- Dedicated mounting surface: Provides a rigid platform inside the cavity for secure component placement. This prevents equipment from shifting or vibrating loose over time—a practical concern when readers, power modules, or control boards are subject to ambient vibration or temperature cycling in industrial or warehouse settings.
- Cable concealment and routing: Routes power, network, and control wiring through the wall cavity behind finished surfaces. Removes cables from exposure to cleaning agents, mechanical damage, or environmental contaminants—factors that shorten cable lifespan in high-traffic security deployments.
- Professional finish aesthetic: Creates a polished installation suitable for corporate lobbies, education facilities, and regulated environments where security infrastructure visibility directly affects perceived system quality and trustworthiness. Particularly useful in audit-sensitive or client-visible areas.
- Standard wall cavity compatibility: Designed for typical stud-framed wall construction with standard cavity spacing. No custom fabrication or specialized wall prep required—simplifies new construction planning and retrofit scenarios where wall structure permits cavity mounting.
- Axis ecosystem integration: Purpose-built for Axis access control components and readers, ensuring mechanical fit and electrical termination standards are met without field improvisation or adapter workarounds.
Installation and Compatibility
The TA4602 (model 03092-001) integrates with the Axis access control platform, supporting cable termination, reader wiring, and control module mounting inside wall cavities. Installation requires standard wall prep: identifying mounting location, confirming stud spacing accommodates the cavity, and routing cables through the wall per local building code. No specialized tools or advanced technical expertise beyond typical wall-mounted installation practices is needed. Verify stud spacing and wall cavity depth before ordering to confirm fit at your specific installation site.
Typical Deployments
Deploy the 03092-001 in access control entrances at corporate office buildings, educational institutions, warehouses, and secure areas where cable management and visual cleanliness are priorities. The back box is ideal in new construction where wall cavities can be planned during framing, but also works in retrofit scenarios provided wall structure allows cavity mounting. Use it anywhere reader wiring, power distribution, or connector termination would otherwise run visibly across a wall surface or in exposed conduit—this box conceals the entire infrastructure.
Frequently Asked Questions
Q: Does the TA4602 work with non-Axis access control readers?
A: The 03092-001 is engineered for Axis access control components. Compatibility with third-party readers depends on mechanical fit (cavity dimensions, mounting surfaces) and connector standards. Contact the third-party reader manufacturer to confirm mounting dimensions and termination requirements before installation.
Q: What wall construction types support the TA4602?
A: The back box mounts in standard stud-framed wall construction. Verify stud spacing and cavity depth at your installation location. Concrete or steel-stud walls may require custom installation methods—consult your facility engineer or general contractor.
Q: Can the 03092-001 be used in retrofit installations?
A: Yes, provided the wall cavity space exists or can be cut without compromising structural integrity. Retrofit installations require careful planning to route cables through existing walls without damaging in-wall conduit, plumbing, or electrical lines. Coordinate with your facility maintenance team before cutting wall cavities.
Q: Does the TA4602 include mounting hardware?
A: Refer to the product documentation supplied with your unit for a complete list of included fasteners and brackets. Standard installation typically requires stud anchors or screws appropriate to your wall type.
Q: Is weatherproofing required if the back box is mounted near exterior walls?
A: The 03092-001 is designed for interior wall cavity mounting. If your installation location is near an exterior wall or exposed to moisture, verify that wall insulation, vapor barriers, and building envelope integrity will not expose the back box to condensation or water infiltration. Consult building code and your facility engineer.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Axis 03092-001 is a straightforward infrastructure play—it's the difference between a visible rats' nest of cables at a reader location and a professional-looking, organized installation. If you're deploying access control readers in spaces where security infrastructure is visible to clients, auditors, or the public, the recessed cavity design of the 03092-001 delivers real value by hiding termination points and cable routing entirely behind the finished wall.
Technical Highlights:
- Recessed cavity installation: Cables and connectors route inside the wall, not across the surface—eliminates exposed conduit runs and reduces cable damage risk in high-traffic areas.
- Structured mounting surface: Prevents equipment shift and vibration-induced disconnections, a practical concern in warehouse or industrial settings with ambient vibration or temperature cycling.
- Standard wall compatibility: Works with typical stud-framed construction; no custom fabrication or specialized wall prep—simplifies scheduling during new builds and retrofit planning.
Deployment Considerations:
- Verify stud spacing and cavity depth at your site before ordering—wall configurations vary. A site survey prevents installation delays and rework.
- Retrofit installations require careful planning to avoid damaging in-wall plumbing, electrical, or conduit. Coordinate with your facility maintenance team before cutting cavities.
Deploy the 03092-001 in corporate lobbies, educational facilities, and regulated environments where the security infrastructure must look polished and organized. It's a cable-management detail that pays off in professional appearance and reduced maintenance liability over the life of the system.
