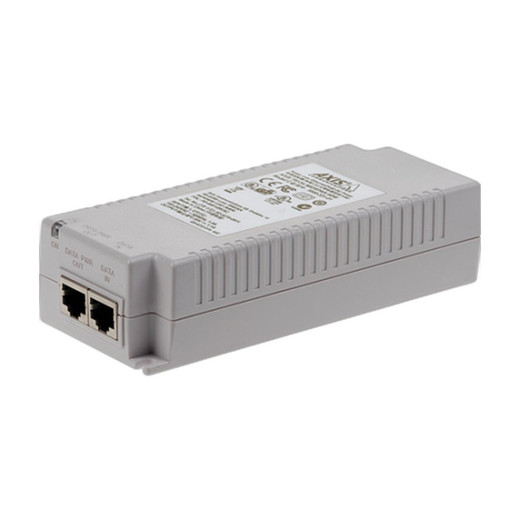

Axis T8134 60W Gigabit PoE++ Midspan

Axis T8134 60W Gigabit PoE++ Midspan

The Axis T8134 is a professional-grade 1-port PoE++ midspan injector delivering up to 60W of High Power over Ethernet. Designed for demanding IP surveillance and networked device deployments, this compact midspan bridges the gap between standard PoE infrastructure and power-hungry network cameras, PTZ devices, and compatible equipment that require elevated power delivery.

Key Features

• High Power Delivery: 60W maximum output (55V DC) supports power-intensive devices including pan-tilt-zoom cameras and advanced network appliances
• Gigabit Ethernet Support: Full 10/100/1000 Mbps data rates with power delivery across all four twisted pairs for Gigabit operation
• Automatic Device Detection: Intelligently detects PoE and High PoE-enabled devices and supplies inline power without manual configuration
• Compact Design: Measuring just 38×62×151 mm, mounts flexibly on walls, shelves, or DIN rails for space-constrained installations
• Industry Compliance: Meets RoHS, REACH, CE, FCC, and multiple international electromagnetic compatibility standards
• Visual Status Monitoring: Front-panel LEDs indicate power and data connectivity for quick troubleshooting
• Environmentally Responsible: PVC-free construction aligns with sustainability requirements

Technical Specifications

• Input Power: 100–240V AC, 50–60 Hz
• Output: 55V DC, up to 60W
• Connectors: Shielded RJ45 (EIA 568A/568B), C13 power inlet
• Operating Temperature: −10°C to 45°C (−14°F to 113°F); up to 55°C at 30W output
• Humidity: Up to 90% RH non-condensing
• Weight: 320 g (0.7 lb)
• Warranty: 3-year manufacturer coverage

Applications

The T8134 is ideal for network video surveillance systems where existing PoE infrastructure cannot deliver sufficient power. Common use cases include outdoor PTZ camera installations, high-definition dome cameras with motorized lenses, network appliances in remote locations, and legacy camera upgrades requiring external power injection. It also serves as a PoE splitter solution for network video products without built-in PoE support.

Installation & Management

Setup is straightforward—connect AC power, link the midspan between your PoE source and target device via Ethernet, and the unit automatically configures itself. No additional software, drivers, or complex configuration required. Shielded connectors ensure reliable operation in electrically noisy environments common in industrial and outdoor deployments.
