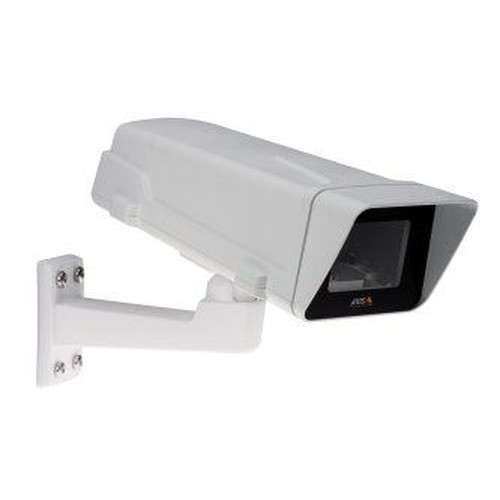

Axis 5900-281 T93F20 Outdoor Housing IP66
Overview
The Axis 5900-281 is a purpose-built protective enclosure for Axis P13 and Q16 series cameras deployed in harsh outdoor environments. This accessory transforms standard network cameras into vandal-resistant, weather-sealed surveillance assets capable of year-round operation across extreme temperature swings and high-impact industrial sites. The housing combines mechanical ruggedness with electrical simplicity — power flows directly from a single PoE IEEE 802.3af connection, eliminating the need for separate power infrastructure on-site.
Key Features
- IP66 and NEMA 4X environmental sealing: Direct rain, dust spray, and high-pressure wash jets won't penetrate the enclosure. This is the practical minimum for exposed outdoor installations; anything less and you'll face water ingress during heavy storms or maintenance washdowns. NEMA 4X adds stainless-steel construction benefits for corrosive salt-air or chemical environments.
- IK10 impact resistance: Rated to withstand 20 joules of direct impact — equivalent to a 5 kg mass dropped from 40 cm height. This protects against vandalism, accidental collision, and handling damage during installation. For sites where cameras are accessible to the public or vehicle traffic, this rating is non-negotiable.
- UV-resistant polymer construction: The housing material resists degradation from prolonged UV exposure, so the enclosure won't become brittle or discolored after 5–10 years in direct sunlight. This extends the useful life of the housing and maintains optical clarity for the camera lens.
- Extended operating temperature range: -40°C to 45°C (-40°F to 113°F): The enclosure is rated for extreme cold and heat without thermal throttling or condensation buildup. In arctic regions, coastal deserts, or sun-baked industrial yards, this range ensures the camera inside remains stable and operational. Thermal expansion/contraction is engineered into the gasket design, so freeze-thaw cycles won't cause seal failure.
- PoE IEEE 802.3af power supply: The 5900-281 draws under 13W via standard 802.3af PoE, so it won't strain your network switch's power budget. One cable delivers both data and power to the camera inside — no separate 12VDC injector or AC outlet needed at the pole. This simplifies wiring and reduces points of failure.
- Series-specific mechanical fit: Engineered optically and mechanically for P13 and Q16 cameras, ensuring flush optical coupling, proper lens alignment, and secure internal mounting without adapters or shims. A poor fit introduces optical distortion and vibration — this housing eliminates that risk.
Integration & Compatibility
The 5900-281 is compatible exclusively with Axis P13 and Q16 series cameras. Verify your camera model against the manufacturer documentation before ordering. Installation requires basic hand tools and mounting hardware appropriate to your surface (wall, pole, eave). Once mounted, the camera and housing pair as a single surveillance unit — no separate configuration or firmware steps needed beyond the camera's own network provisioning.
Deployment Context
Common deployment scenarios include perimeter fencing in industrial parks, parking lot coverage in high-crime areas, coastal facility monitoring (where salt spray corrodes unprotected optics), and outdoor gate access points subject to weather extremes. Sites with vandalism history or high foot traffic benefit most from the IK10 impact rating. Temperature extremes (Arctic facilities, desert solar farms, high-altitude remote sites) justify the extended operating range. If your outdoor camera sits unprotected today, the 5900-281 is the right accessory to buy before the first freeze or hailstorm.
Frequently Asked Questions
Q: Is the Axis 5900-281 compatible with my Axis camera?
A: The 5900-281 is designed specifically for Axis P13 and Q16 series cameras only. Check your camera's model number against the manufacturer's compatibility list before purchase. Other Axis series require different housings.
Q: Can I use the 5900-281 in a submersion or water-immersion environment?
A: No. IP66 rating provides protection against spray and splash, but not full submersion. For applications where the camera may be submerged, specify an IP67 or IP68 rated housing.
Q: Does the housing reduce image quality or zoom capability?
A: No. The optical path is engineered to minimize loss. The camera's lens, zoom, and autofocus operate normally when installed in the 5900-281.
Q: What power supply do I need for the 5900-281?
A: The housing and camera draw power via standard PoE (IEEE 802.3af). A standard PoE injector or PoE-equipped network switch supplies the power — no separate external power supply required.
Q: Can I install the 5900-281 in extreme cold or heat?
A: Yes. The housing is rated for continuous operation from -40°C to 45°C. Thermal gasket design accommodates freeze-thaw cycles without seal failure. However, extreme cold can temporarily reduce PoE available power and slow the camera's processor; normal operation resumes as temperature normalizes.
Q: Is the 5900-281 suitable for coastal salt-air environments?
A: Yes. The NEMA 4X rating includes corrosion-resistant stainless-steel hardware and UV-resistant polymer, both designed to withstand salt spray and marine environments. Regular rinsing with fresh water is recommended to extend service life.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Axis 5900-281 is a straightforward but essential accessory. If you're deploying P13 or Q16 series cameras outdoors and expecting them to survive weather, impact, and temperature swings, this housing isn't optional — it's the baseline. The IP66/IK10 pairing (dust-sealed and impact-rated) covers 95% of true outdoor surveillance scenarios. What makes the 5900-281 worth deploying is the engineering: the thermal gasket design handles -40 to 45°C without condensation or seal creep, and the optical path is genuinely transparent — no image degradation when the camera is mounted inside.
Technical Highlights:
- IP66 + NEMA 4X: Spray and dust will not penetrate. Stainless hardware resists salt corrosion. This matters on coastlines and in chemical-wash environments where unprotected housings fail after 2–3 years.
- IK10 impact rating (20 joules): The housing absorbs punishment from vandals, equipment collision, and hail. P13 and Q16 cameras mounted bare are optical targets; this adds a real protective layer.
- -40°C to 45°C operating range: Freeze-thaw cycling is brutal on gaskets and optical alignment. The 5900-281 is engineered to handle it. In arctic or desert deployments, this spec is non-negotiable.
- PoE 802.3af (under 13W): Single-cable simplicity. Your PoE switch won't choke. One less external power supply to maintain or troubleshoot.
Deployment Considerations:
- Verify P13 or Q16 series compatibility before order — incompatible models won't mount. Check the camera's label or Axis datasheet.
- IP66 stops spray; it doesn't waterproof a submerged scenario. If a camera will sit below water level or in a submersion risk, escalate to IP67+ housing.
- Extreme cold (below -30°C) will temporarily reduce available PoE power. If your site hits -40°C regularly, confirm that your switch supplies sufficient budget and that your camera operates at that temperature rating independently.
Buy the 5900-281 for perimeter or pole-mounted P13/Q16 deployments in industrial yards, parking facilities, and high-vandalism zones. It's the difference between a camera lasting 5+ years outdoors and one corroded or shattered within 12 months.
