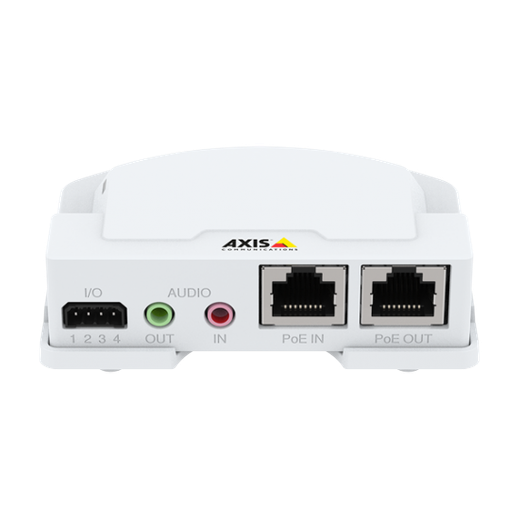

Axis 01160-001 Audio and I/O Interface
Overview
The Axis T6101 Audio and I/O Interface (01160-001) is a dedicated edge device that adds two-way audio capability and configurable alarm inputs and outputs to IP surveillance deployments — without requiring a camera swap. If you have existing Axis network cameras or compatible IP cameras that lack built-in audio or I/O ports, the T6101 slots into your infrastructure and extends those functions over the same network. Powered by PoE, it draws from the switch that already feeds your cameras, so there is no separate power run to plan for. The white housing suits indoor environments where the device will be surface-mounted in a visible area.
Key Features
- Two-Way Audio: Connects microphone and speaker to the network, enabling live voice communication or recorded audio evidence. Useful at entry points, loading docks, or any monitored area where operator talk-down or ambient audio capture is part of the security plan — without needing a camera with built-in audio.
- Configurable Supervised Alarm Inputs: Supervised inputs detect both the state of a connected sensor (open/closed) and the integrity of the wiring itself, so a cut or shorted line registers as a tamper event rather than a silent failure. That distinction matters in access control integration and perimeter monitoring.
- Digital Alarm Outputs: Drive external devices — door strikes, sirens, lights — directly from the T6101 in response to alarm conditions. This reduces the need for a separate relay module in simple trigger scenarios.
- PoE Powered: Standard Power over Ethernet means the 01160-001 (often searched as 01160 001) is powered directly from the network switch. One cable handles both data and power, keeping installation clean and keeping the device on UPS-backed network power without any additional wiring.
- White Housing: The compact white enclosure blends into office ceilings and corridors where a black or grey industrial unit would stand out. Suited for retail, corporate, and healthcare environments where aesthetics matter.
Integration and Compatibility
The T6101 is designed to complement IP surveillance cameras that lack audio or I/O capability. It integrates into existing PoE network infrastructure and works alongside video management systems that support external audio and I/O devices. For planning the network infrastructure that supports this kind of edge device, consult a PoE switch appropriate for your port count and power budget. For deployments combining audio, I/O, and camera coverage, review the broader Axis product catalog for compatible camera and audio accessories.
Frequently Asked Questions
Q: Does the Axis 01160-001 require a separate power supply?
A: No. The T6101 is powered via PoE from a standard PoE-capable network switch. No external power adapter is needed.
Q: Can the T6101 be used with non-Axis cameras?
A: The T6101 is designed for IP surveillance systems and connects over standard network infrastructure. Compatibility with non-Axis cameras depends on the VMS and whether it supports external audio and I/O interfaces. Verify with your VMS vendor before deploying.
Q: What is the difference between supervised and unsupervised alarm inputs?
A: Supervised inputs monitor both the sensor state and the wiring integrity. If the cable is cut or shorted, the system registers a tamper condition rather than a normal open/closed state — a meaningful security improvement over basic unsupervised inputs.
Q: Is the Axis T6101 suitable for outdoor installation?
A: Based on available specifications, the T6101 is a white-housed unit intended for indoor use. No outdoor environmental rating is confirmed in the available evidence. Verify with the manufacturer datasheet before outdoor installation.
Q: How many alarm inputs and outputs does the 01160-001 support?
A: The T6101 provides configurable supervised alarm inputs and digital alarm outputs. For exact I/O counts, consult the Axis T6101 datasheet directly from Axis Communications.
The 01160-001 is a niche but genuinely useful device — the T6101 solves a specific integration gap that comes up regularly: you have a camera with good optics and positioning, but it has no audio port and no I/O terminals. Rather than ripping out a working camera, you drop this unit nearby on the same PoE switch and gain two-way audio plus supervised alarm I/O in one shot.
Technical Highlights:
- Supervised Alarm Inputs: The supervision feature is the key differentiator over basic dry-contact inputs — wiring faults register as distinct events, which matters for compliance-driven deployments where silent failures are not acceptable.
- Two-Way Audio: Drives both a microphone input and a speaker output, enabling active monitoring and operator response from the same network node — not just passive recording.
- PoE Power: Single-cable install keeps the unit on the same UPS-backed switch that feeds your cameras, eliminating a separate power circuit and ensuring the device stays up during a power event as long as the switch does.
Deployment Considerations:
- Plan PoE port availability on your switch before specifying this device — each T6101 consumes a port, and in dense deployments that adds up against your switch budget.
- The white housing is clearly indoor-oriented; do not assume environmental protection without verifying the datasheet IP rating, particularly in mechanical rooms or near HVAC where condensation is a factor.
Best fit for corporate lobbies, healthcare reception areas, or retail environments where an existing camera needs audio and I/O capability added without a full hardware replacement — the T6101 is an extension device, not a standalone system.
