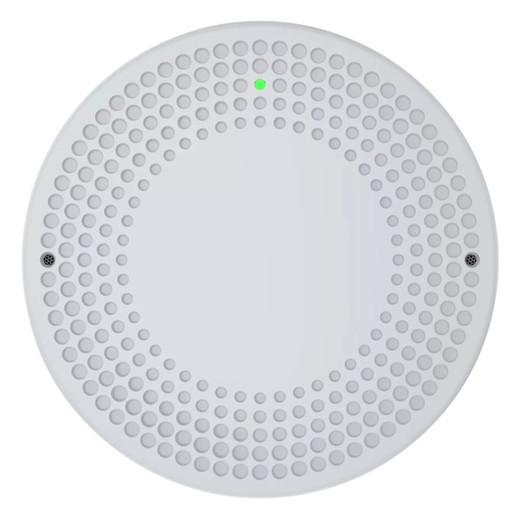

Axis 02554-001 T6112 MKII Audio and I/O Interface

Overview

The Axis 02554-001 is a companion device that extends microphone and supervised digital I/O capabilities to Axis IP cameras without consuming an additional IP address or network bandwidth. Using Portcast technology, the T6112 MKII shares the host camera's IP address, so audio and I/O streams integrate into a single network flow—eliminating DHCP overhead and simplifying VMS architecture by treating the camera and audio/I/O interface as a single logical entity. This approach is particularly valuable in large deployments where address conservation and management simplicity matter.

Key Features

• Portcast Technology: Shares the connected camera's IP address, so you don't burn a DHCP lease or complicate network policies. One camera, one address, unified stream—meaningful when deploying dozens or hundreds of cameras across constrained subnets.
• Dual Microphone Inputs with Automatic Gain Control: Two 3.5mm connectors accept external microphones with AGC enabled. This lets you combine ambient sound capture with directional audio or run redundant pickup points without manual level adjustments between sources—critical for reliable intercom or facility-wide announcements.
• Two-Way Audio with Voice Enhancement: Full-duplex communication for entry intercoms, facility announcements, or real-time verbal alerts without external PA equipment. Voice enhancement ensures clarity in noisy environments like warehouses or loading docks.
• Configurable Supervised I/O (2 Channels): Two digital input/output channels rated 12VDC output, 50mA maximum per channel, connected via 4-pin 2.5mm terminal blocks. This enables alarm relay integration, door sensor wiring, and gate control logic without a separate I/O controller—but note the 50mA limit; heavy-duty solenoids (e.g., 24VDC high-current door strikes) require external relaying.
• Flexible Audio Codecs (8–48 kHz): Support for 16-bit LPCM, AAC-LC, G.711 PCM, G.726 ADPCM, and Opus at sample rates from 8 kHz to 48 kHz gives you real tuning options. G.711 at 8 kHz uses minimal bitrate for cost-sensitive WAN links (roughly 64 kbps), while AAC-LC or Opus at 48 kHz delivers clear voice for quality-first deployments. This flexibility is especially useful in hybrid on-premise and cloud environments where bandwidth varies by location.
• PoE Class 2 Power (IEEE 802.3af): Draws under 12W via standard PoE—no separate power supply required. Won't strain switch power budgets even in larger camera plants; a 95W PoE switch can support roughly 7–8 units of the 02554-001 plus standard cameras.
• Wide Operating Temperature (-40°C to 50°C): Rated -40°C to 50°C (-40°F to 122°F), so the unit handles unheated indoor spaces, equipment rooms, or outdoor-adjacent enclosures without thermal derating—essential for warehouses, parking structures, or shipping departments with minimal climate control.
• Wall or Ceiling Mount Options: Flexible installation lets you position microphones above crowds, at entry gates, in alarm-control closets, or on warehouse ceilings depending on your audio geography and I/O wiring runs.

Integration and Compatibility

The T6112 MKII integrates with all supported Axis IP cameras and ONVIF-compliant VMS platforms. Since Portcast shares the camera's IP address and network stream, recording and retention policies apply uniformly to both video and audio—no separate rules to manage. The supervised I/O integrates via the camera's event engine, so you can trigger recordings, notifications, or analytics workflows on contact closure directly from the VMS dashboard without external logic controllers.

When to Choose a Different Approach

If your deployment requires only audio or I/O without both, evaluate whether a camera model with built-in microphone better fits cost and deployment density. If you need audio preprocessing (noise suppression, speech detection, or audio analytics) before reaching the VMS, consider higher-capability audio systems or dedicated edge audio appliances. Similarly, if supervised I/O must handle higher-voltage or higher-current loads (e.g., 24VDC heavy-duty solenoids drawing 200mA+), a standalone I/O expander or relay module is more suitable than the 50mA-limited 02554-001 channels.

Frequently Asked Questions

Q: Does the 02554-001 require its own IP address?

A: No. Portcast technology allows the T6112 MKII to share the connected camera's IP address. You consume no additional DHCP lease or network bandwidth—the camera and audio/I/O interface appear as a single entity to the VMS.

Q: What microphone connectors does the 02554-001 support?

A: Two 3.5mm audio inputs accept standard external microphones with automatic gain control enabled. AGC normalizes levels between sources, so you don't need to manually adjust mixer settings in the VMS or recorder.

Q: Can the T6112 MKII control door locks or high-current solenoids?

A: The two I/O channels are rated 12VDC output, 50mA maximum. This is sufficient for relay coils, door sensors, or gate-open signals, but not for direct control of high-current loads. Use external relays or a dedicated I/O module for heavy-duty solenoids.

Q: What audio sample rates does the 02554-001 support?

A: Audio codecs (LPCM, AAC-LC, G.711, G.726, Opus) operate at 8 kHz, 16 kHz, 32 kHz, and 48 kHz. Lower rates (8 kHz) reduce bandwidth for WAN deployments; higher rates (48 kHz) improve voice clarity for critical communication.

Q: Will the 02554-001 work in outdoor or high-temperature environments?

A: The unit is rated -40°C to 50°C (-40°F to 122°F), so it handles cold storage, unheated facilities, and warm equipment rooms. For direct outdoor exposure with rain or dust, confirm IP rating with your integrator—the spec does not include an explicit IP rating in standard sources.

Q: What VMS platforms support the T6112 MKII?

A: The 02554-001 is compatible with all ONVIF-compliant platforms and native Axis management tools (AXIS Camera Station, Axis Companion). Consult your VMS documentation for specific Portcast support; most modern systems handle Portcast as a standard feature.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The Axis 02554-001 solves a real integration headache in large surveillance plants: adding audio and controlled I/O without burning IP addresses or complicating VMS provisioning. Portcast is the key advantage here—the 02554-001 doesn't appear as a separate network node, so you avoid DHCP overhead and policy bloat. That matters when you're rolling out 50+ cameras across a facility with strict address ranges.

Technical Highlights:

• Codec Flexibility (8–48 kHz): G.711 at 8 kHz is roughly 64 kbps—viable even over constrained WAN links or cellular backup. AAC-LC or Opus at 48 kHz delivers studio-quality voice for critical intercom or emergency notification. You're not locked into one choice across all deployments.
• Dual Microphone Inputs with AGC: Automatic gain control means you can mix a directional boundary mic at the entry gate with an omnidirectional floor mic in the warehouse without manual level tuning between feeds. Real time-saver during commissioning.
• PoE Class 2 (under 12W): A standard 95W PoE switch can power roughly 7–8 units of the 02554-001 alongside regular IP cameras. No need for midspan injectors or separate power runs—just wire and go.
• I/O Channels (50mA @ 12VDC): Sufficient for door sensors, relay coils, and gate-open signals. The 50mA ceiling is the gotcha—if you need to drive a 24VDC heavy-duty solenoid, you're adding an external relay or looking at a different I/O module.

Deployment Considerations:

• Portcast only works with Axis cameras and ONVIF-compliant VMS platforms. If your system doesn't support it, the 02554-001 either can't be used or requires workarounds—confirm compatibility before ordering.
• The -40°C to 50°C operating range covers most indoor and semi-protected outdoor environments, but direct sun or unheated shipping bays near the cold end may push thermal limits. Verify site conditions against your climate zone.
• Two microphone channels is plenty for intercom pairs (entry + warehouse) or redundant pickup in a single zone. If you need four independent audio feeds, you'll need two 02554-001 units, which defeats some of the address-conservation benefit.

Deploy the 02554-001 in multi-camera warehouse, facility, or campus integrations where you want tidy VMS management and centralized audio control without separate IP overhead. It's not a media converter or a standalone audio interface—it's an adjunct to an Axis camera deployment. Treat it that way and you'll avoid integration disappointments.
