Axis T6101 Mk II Audio I/O Interface - 02553-001

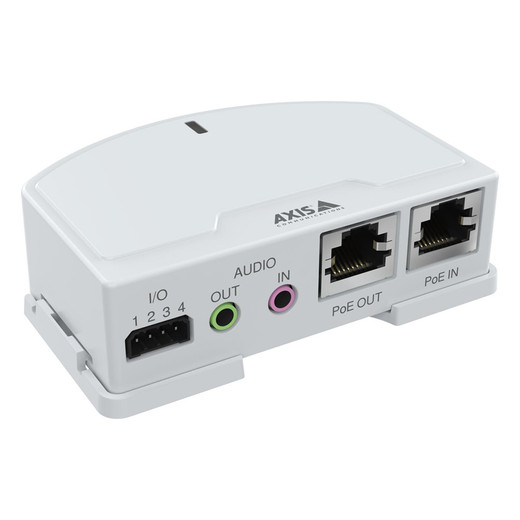

Axis 02553-001 T6101 Mk II Audio and I/O Interface

Overview

The Axis 02553-001 is a dedicated audio and I/O interface module that bridges your Axis IP cameras to external audio devices and control equipment. This adapter extends the capabilities of cameras that lack built-in audio or I/O connectivity, enabling two-way voice communication and integration with sensors, alarms, door control systems, and other third-party devices. It connects directly to Axis network cameras via standard connectors and operates via power delivered through the host camera or an external PoE source.

Key Features

• Two-Way Audio Communication: The 02553-001 supports one audio input and one audio output (1/1 configuration), allowing you to listen to and broadcast audio through your surveillance camera. This is essential for two-way intercom deployments or situations where you need to issue warnings or commands without installing separate intercoms. The 3.5 mm terminal block connector accepts standard analog audio sources such as microphones, line-level speakers, or audio mixing equipment.
• I/O Relay Integration: One input and one output pair enable integration with external systems. The input accepts sensor signals (door contact, motion, alarms), while the output can trigger actions—such as relay closure for a door strike, siren activation, or light control—based on events detected by the camera or rule-based logic in your management software. This creates closed-loop automation without requiring a separate relay module.
• 3.5 mm Terminal Block Connectors: Compact, screw-terminal design eliminates the need for specialized adapters and supports both balanced and unbalanced audio sources depending on your wiring configuration. This flexibility simplifies field installation, particularly in retrofit scenarios where existing audio infrastructure may be non-standard.
• Low Power Draw: The unit derives power from the connected Axis camera (typically via direct connection to the camera's power output) or from an external PoE source. No separate 12V supply or UPS integration required, reducing cost and power-budget strain on your NVR or PoE switch infrastructure.
• Axis Ecosystem Compatibility: Designed to work with a broad range of Axis network cameras and devices. Integration with Axis management platforms and third-party ONVIF-compliant VMS systems allows rule-driven I/O triggering and audio activation tied to motion detection, analytics events, or scheduled actions.
• Compact Form Factor: Small enough to install alongside or directly connected to the camera without adding significant bulk to the installation. Useful in constrained spaces such as junction boxes, camera housings, or control rooms where cable runs converge.

Integration & Compatibility

The 02553-001 (often searched as 02553 001) integrates with network video recorders and IP surveillance systems through ONVIF-compliant APIs and Axis device management interfaces. Audio and I/O events can trigger NVR recordings, notifications, or external relay actions via REST API or dedicated management software. Verify camera model compatibility before ordering—not all Axis cameras have dedicated I/O connector ports or the bandwidth/power to support a separate I/O module. Consult the camera datasheet or contact Axis technical support to confirm your camera model supports external audio/I/O modules.

What's in the Box

• 1× Axis T6101 Mk II Audio and I/O Interface
• Mounting Hardware Kit
• Installation Instructions

Frequently Asked Questions

Q: Can the 02553-001 work with non-Axis cameras?

A: No, the Axis T6101 Mk II is designed specifically for Axis network cameras. If your camera is ONVIF-compliant but not an Axis model, you will need a different audio/I/O interface that matches your camera's connector type and protocol support.

Q: What audio impedance does the 3.5 mm terminal block support?

A: The interface accepts both line-level (600 Ω to 10 kΩ) and microphone-level sources. Refer to the camera's audio input specification for gain and level requirements to ensure proper signal matching.

Q: Is external power supply required, or does the camera power the interface?

A: The 02553-001 draws power from the camera's power output if available, or from an external PoE source. Verify your camera's power budget and available I/O power pins before installation.

Q: Can I trigger multiple relays or control multiple door locks with one interface?

A: The 02553-001 provides one I/O output relay. For multi-output control, you will need either multiple interfaces or a separate relay expansion module tied to a single I/O output.

Q: Does the 02553-001 require firmware updates or configuration beyond wiring?

A: Yes. Audio input/output and I/O triggering must be configured within your Axis camera settings or management platform. Refer to the installation guide for device-specific setup steps.

Q: What warranty does the 02553-001 carry?

A: The Axis T6101 Mk II is covered by Axis's standard warranty for hardware modules, typically 3 years from date of purchase when registered with Axis. Verify coverage with your reseller.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The Axis 02553-001 fills a real gap in modular surveillance design: you've got a camera with excellent video and analytics, but no native audio or relay outputs. Rather than rip it out and replace it with a higher-SKU model, the T6101 Mk II lets you attach audio and I/O capability via a compact interface. The 1/1 audio and I/O configuration is limited, but for single-channel two-way intercom or basic alarm-trigger integration, it's cost-effective and avoids camera firmware dependencies.

Technical Highlights:

• Single I/O Pair: One input, one output relay means you can monitor one sensor (door contact, motion detector) and trigger one action (door strike, siren relay, light relay). If you need more, you'll need multiple units or a separate I/O expansion module.
• 3.5 mm Terminal Block Design: Screw terminals accept both balanced and unbalanced audio without adapters, reducing field troubleshooting. Standard stereo cable connectors won't work—you need to break out wires or use a compatible audio breakout box.
• Power Flexibility: The interface can pull power from the camera's dedicated I/O power output (if available) or from external PoE. Check your camera's datasheet for available power pins—some Axis models limit auxiliary power, and the 02553-001 won't function if the camera can't source enough current.

Deployment Considerations:

• Camera compatibility is strict. Not all Axis models have the physical connectors or power budget to support the T6101 Mk II. Always confirm the camera model in your Axis documentation before specifying this interface.
• Audio signal levels must be pre-matched. If you're connecting a standard analog speaker or microphone, verify impedance and gain levels to avoid distortion or signal loss. Axis's documentation provides input/output level specifications—follow them.
• The single relay output is dry-contact only. If you need to trigger powered devices (solenoids, motors, heavy-load relays), you must interpose a secondary relay or relay module rated for your load.

Best fit: access-control or door-intercom scenarios where you're retrofitting audio and one relay signal onto an existing Axis installation. Not suitable for large multi-relay automation—use a dedicated I/O gateway or NVR with relay outputs instead.
