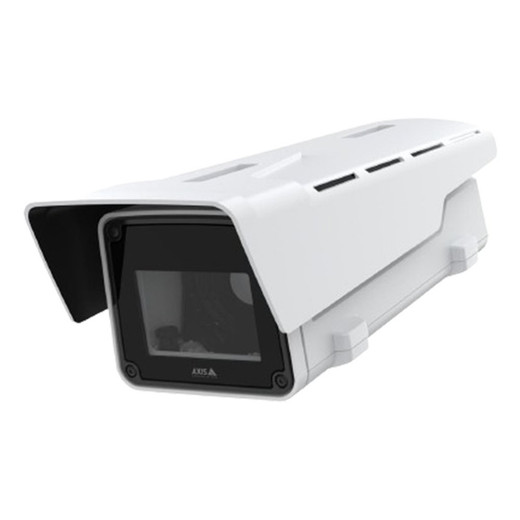

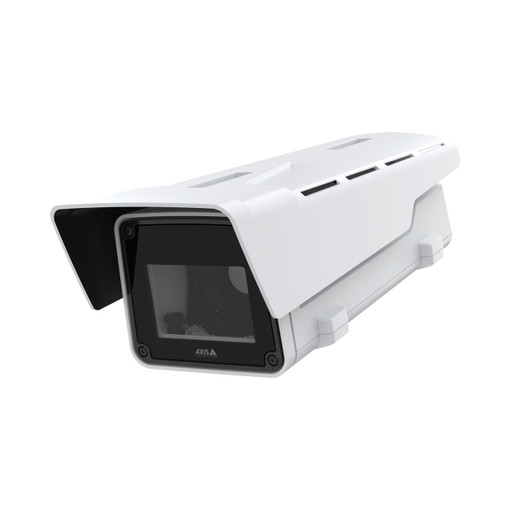

Axis Q1656-BE 4MP Outdoor Box Camera - 02168-031

Axis Q1656-BE 4MP AI Outdoor Box Camera

The Axis Q1656-BE is a professional-grade 4MP outdoor box camera engineered for demanding surveillance applications. Combining high-resolution imaging with advanced AI detection capabilities, this camera delivers reliable performance across extreme weather conditions and challenging lighting environments. Built for security professionals who require forensic-quality footage and intelligent video analytics in outdoor installations.

Key Features

• 4MP resolution at 60fps for detailed motion capture and activity documentation
• Lightfinder 2.0 technology ensures color detail down to 0.05 lux in low-light conditions
• Forensic WDR overcomes backlight and high-contrast scenes for forensic-grade clarity
• AI-powered detection for object classification and behavioral analytics
• IP66/IK10 protection rating—fully dust/water-sealed and vandal-resistant
• H.264 compression with Zipstream technology reduces bandwidth and storage demands
• PoE powered (Class 4, max 25.5W) with flexible DC input voltage support
• Audio support for two-way communication and incident verification
• Wide operating range: -40°C to +60°C for extreme climate reliability
• 1/1.8" CMOS sensor with CS mount lens compatibility

Technical Specifications

Imaging: 2688×1512 pixel resolution, 60fps capture, 0.05 lux minimum illumination (color), 1/1.8" CMOS sensor. Compression: H.264 with Zipstream bandwidth optimization. Environmental: IP66-rated enclosure, IK10 vandalism protection, -40°C to +60°C operating temperature. Power: PoE Class 4 (average 11.2W, peak 25.5W) or 10-28V DC input. Build Quality: BFR/CFR-free, PVC-free materials meet sustainability standards.

Ideal Applications

• Parking lot and vehicle monitoring with AI vehicle detection
• Perimeter security for commercial properties and industrial facilities
• Public spaces requiring forensic-quality incident documentation
• Transportation hubs and outdoor access control points
• Extreme weather environments requiring robust durability

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The Q1656-BE addresses a critical gap in outdoor surveillance: delivering forensic image quality without excessive bandwidth. The combination of Lightfinder 2.0 and Forensic WDR is particularly valuable in mixed-lighting outdoor scenes—parking lots, building perimeters, and transit areas where lighting conditions shift constantly. At 0.05 lux sensitivity, this camera maintains color information where competitors fall back to monochrome, essential for suspect identification and vehicle plate recognition.

The AI engine embedded in this platform enables edge-based analytics: vehicle detection, loitering alerts, and directional monitoring can be configured locally, reducing reliance on backend servers. For integrators, the CS mount flexibility allows lens optimization for specific focal lengths—critical when a single box camera must cover varied distances. The IK10 rating and wide temperature tolerance make outdoor installation straightforward, even in harsh climates. Budget-conscious deployments benefit from Zipstream compression, which intelligently reduces bitrate during static scenes while preserving detail during motion—typical 30-40% bandwidth savings without visible quality loss.
