Axis Q1656-B 4MP Indoor Box Camera - 02164-031

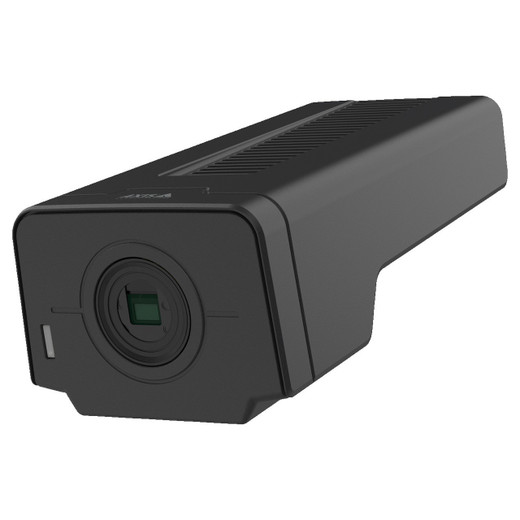

Axis Q1656-B 4MP AI Indoor Box Camera

The Axis Q1656-B is a high-performance 4-megapixel AI-enabled box camera designed for demanding indoor surveillance applications. Built with advanced image processing and intelligent analytics, this camera delivers exceptional clarity and actionable insights for security operations in retail, banking, corporate, and critical infrastructure environments.

Key Features

• 4MP Resolution with Lightfinder 2.0: Captures fine detail with exceptional low-light performance at 0.05 lux in color mode, ideal for facilities operating 24/7
• Forensic WDR Technology: Balances extreme contrast scenes, preserving detail in both bright and shadowed areas for comprehensive forensic value
• AI-Powered Analytics: Integrated object detection, motion tracking, and behavior analytics enable proactive threat identification
• 60fps Capture: Smooth, fluid motion rendering at maximum frame rate for critical incident documentation
• H.264 Multi-Profile Compression: Baseline, Main, and High profiles optimize bandwidth and storage efficiency without quality compromise
• Zipstream Technology: Adaptive bitrate streaming reduces bandwidth consumption by up to 50% while maintaining video quality
• Advanced Cybersecurity: Signed firmware and secure boot protect against unauthorized access and firmware tampering
• PoE Power Delivery: Single-cable installation with Class 3 PoE support (avg. 4.6W, max 7.7W)
• Audio Support: Integrated audio capability for two-way communication and environmental monitoring

Technical Specifications

• Sensor: 1/1.8" CMOS, 2688 x 1512 native resolution
• Frame Rate: Up to 60fps at full resolution
• Minimum Illumination: 0.05 lux (color)
• Lens Mount: CS-mount for flexible optics selection
• Operating Temperature: -20°C to +55°C, enabling deployment in diverse environments
• Power Input: 10-28V DC or PoE+ Class 3
• Sustainability: BFR/CFR-free, PVC-free materials

Applications

Ideal for high-security facilities requiring detailed forensic-grade video with minimal bandwidth overhead. Suitable for retail loss prevention, banking security, corporate access control, and mission-critical monitoring where AI-assisted threat detection accelerates response times.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The Q1656-B represents Axis's commitment to intelligent edge computing. The Lightfinder 2.0 and Forensic WDR combination addresses one of surveillance's greatest challenges: maintaining usable detail across extreme lighting gradients without algorithmic artifacts. The 0.05 lux color sensitivity eliminates near-infrared reliance in many indoor environments, reducing installation costs and improving image naturalness.

AI integration at the edge—rather than relying on backend processing—delivers immediate actionable intelligence while respecting privacy and reducing network overhead. The CS-mount design and moderate power budget (4.6W average) make this camera accessible to retrofit projects where cabinet space and power budgets are constrained. Zipstream's intelligent codec adaptation ensures efficient storage scaling as retention requirements grow.
