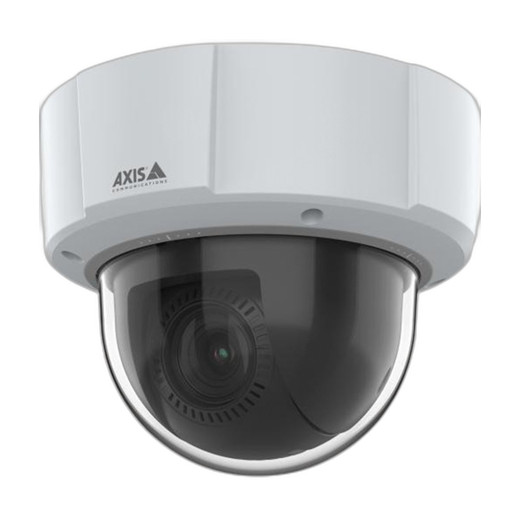

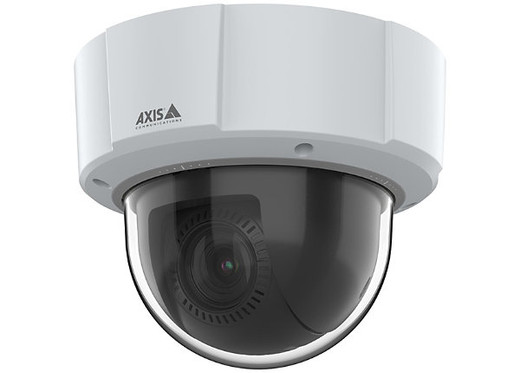

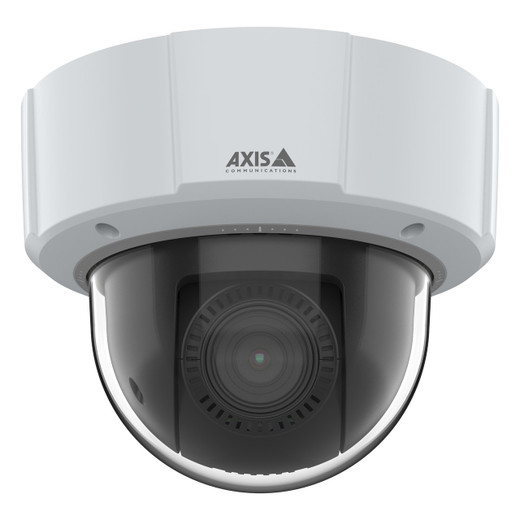

Axis 02769-001 4MP Outdoor AI PTZ Dome Camera

The Axis 02769-001 is a professional outdoor PTZ (pan-tilt-zoom) dome camera designed for large-area surveillance where wide coverage and intelligent threat detection matter. Built around a 4MP CMOS sensor (2688×1512), it combines 10x optical zoom with 360° endless pan and 0–90° tilt to eliminate blind spots without multiplying camera count. The 02769-001 delivers 50/60 fps at full resolution, ensuring smooth motion tracking and minimal lag during security events.

Key Features

• 4MP Resolution (2688×1512): Forensic-quality detail at distance; zoom in on faces and license plates without cropping to unrecognizable pixels. Meaningful for perimeter identification and incident review.
• 10x Optical Zoom with 59.1° to 6.5° Field of View: One camera replaces three or four fixed cameras in many layouts. The 6.5° narrow angle reaches 200+ feet away; the 59.1° wide angle catches nearby activity. Reduces infrastructure cost and cabling complexity.
• 360° Endless Pan and 0–90° Tilt: Full hemisphere coverage without mechanical stop points. Useful for guard tours—preset scanning patterns reduce operator fatigue on 24/7 operations.
• AI-Powered Detection and Tracking: Intelligent filtering of false alarms (wind, shadows, passing vehicles) so operators respond only to genuine threats. Reduces alert fatigue in high-traffic areas.
• Forensic WDR (Wide Dynamic Range): Balances exposure in extreme lighting—backlighting at entrances, direct sun reflecting off metal surfaces, or mixed indoor/outdoor zones. Avoids blown-out or crushed shadows that hide critical detail.
• Lightfinder 2.0 with 0.25 lux Color Sensitivity: Delivers color video in near-darkness without infrared. Preserves natural scene information (clothing, vehicle color) that IR alone cannot provide. Reduces reliance on expensive external lighting.
• H.264 with Zipstream Codec: Compression reduces storage bandwidth 50–80% on static backgrounds (parking lots, facades) while preserving detail on moving subjects. On a 24/7 multi-camera system, this translates to smaller NVR, slower HDD wear, and lower egress costs for cloud backup.
• IP66 Weatherproof + IK09 Vandal Rating: Complete dust protection and jet-spray resilience—no sealed housing failure in heavy rain. IK09 resists impact from thrown objects; survives high-risk outdoor sites (utility yards, exposed perimeters). Operating range −20°C to 50°C handles arctic to desert climates.
• PoE Power (Class 3 / ~13W): Standard 802.3af PoE supply; no power injector needed if your switch supports it. Single RJ-45 cable to each camera simplifies rough conduit runs and reduces failure points.
• Audio Detection + 4 Alarm I/O Channels: Built-in mic captures sound events; relay outputs trigger external devices (strobes, door locks, alerts). Useful for two-way audio at entry gates or automated incident response workflows.

Integration and Deployment Fit

The 02769-001 integrates with Axis IP cameras across the surveillance line and connects via ONVIF to standard NVR and VMS platforms. Secure boot and signed firmware protect against unauthorized code injection. For PoE power planning, confirm your switch or injector delivers Class 3 (up to 15.4W per port) to avoid overload on high-density deployments.

Choose this model when you need active surveillance (operator-controlled panning and zooming) combined with automated AI guardrails, wide-area coverage, and rugged outdoor endurance. Skip it if you require thermal imaging, require fixed wide angles without motorized zoom, or need submersion-rated protection (IP67+).

When to Choose a Different Model

If you need higher resolution, consider a higher-megapixel variant in the Axis PTZ family. If your site demands true full-spectrum thermal or long-range IR beyond Lightfinder, evaluate Axis thermal or OptimizedIR models. If installation simplicity is paramount and operators won't actively pan, a fixed-lens outdoor dome may reduce complexity and cost.

Frequently Asked Questions

Q: Does the Axis 02769-001 require a separate power supply?

A: No. The 02769-001 operates via standard 802.3af PoE, drawing approximately 13W. A compliant PoE switch or injector provides both power and network data over a single RJ-45 cable. No external 12V supply needed.

Q: Can the 02769-001 be installed on a ceiling or wall?

A: Yes. The dome form factor and universal mounting bracket support both ceiling and wall installation. Ensure the mounting surface is rated for the camera's weight and can withstand wind load at your site.

Q: How does Lightfinder 2.0 differ from standard night vision?

A: Lightfinder 2.0 extends color visibility to 0.25 lux by amplifying available ambient light (moonlight, streetlights, building lights). Traditional IR uses infrared LEDs, which see equally in all directions and reveal only grayscale. Lightfinder preserves clothing color, vehicle color, and natural scene detail—valuable for suspect identification.

Q: Does the 02769-001 work with Milestone XProtect or other third-party VMS platforms?

A: Yes. The camera is ONVIF-compliant (Profile S/T), which means it integrates with any ONVIF-compatible VMS, including Milestone, Axis Camera Station, and others. Confirm your VMS version supports the camera's codec and PTZ command set.

Q: What is the maximum storage and retention time for the 02769-001?

A: The camera itself has no built-in storage. Recording duration depends on your NVR/VMS, disk capacity, and bitrate. Zipstream compression significantly reduces bitrate on static scenes, extending retention on the same hardware. For 24/7 storage calculations, consult your recorder's capacity planning tool.

Q: Is the 02769-001 NDAA Section 889 compliant?

A: Refer to the product datasheet or contact the manufacturer for current NDAA/TAA compliance statements. Axis publishes compliance documentation separately; it is not embedded in this spec page.

James Everett

Perspective based on aggregated IPSD and affiliated engineering team experience.

The Axis 02769-001 closes a real gap in outdoor surveillance: it delivers operator control and wide-area coverage without forcing you to choose between fixed-camera simplicity and active monitoring complexity. The 10x optical zoom and 360° pan eliminate the blind-spot sprawl that typically requires four to six fixed cameras. AI filtering on the 02769-001 cuts false-alarm noise meaningfully—you're not chasing wind-blown leaves or passing traffic.

Technical Highlights:

• Lightfinder 2.0 at 0.25 lux: Delivers color detail in near-dark conditions without infrared. On perimeter or parking monitoring, this preserves suspect identification clues (jacket color, vehicle make) that monochrome IR simply cannot capture.
• Forensic WDR: Handles mixed lighting without sacrificing detail in either shadows or highlights. Backlighting at entrance gates—a common failure point for cheaper cameras—stays usable on the 02769-001.
• Zipstream H.264 codec: Reduces bitrate 50–80% on static backgrounds. On 24/7 recording across multiple PTZ units, that's measurable savings in storage wear and archival bandwidth.
• PoE Class 3 (~13W): Standard-issue power requirement. Your existing enterprise switch likely handles dozens of these without strain or additional injectors.

Deployment Considerations:

• PTZ cameras demand good IP network latency—lag in pan/tilt response feels broken to operators. Confirm your network infrastructure can sustain sub-100ms round-trip to the camera, especially if you're deploying across distributed sites.
• The 02769-001 (often searched as 02769 001) excels at large outdoor spaces where a single operator can watch multiple zones via one motorized lens. It underperforms in high-density fixed-camera scenarios where preset positions don't align with your coverage grid.
• Guard tour presets reduce fatigue but introduce predictability—an adversary watching the camera can time actions between scans. Operator randomization mitigates this on sensitive sites.

Deploy the 02769-001 where you need active surveillance flexibility (perimeter monitoring, gate houses, large parking lots, industrial yards) and where IP66/IK09 durability and AI filtering will reduce maintenance and false alarms. Skip it if your site demands purely fixed-angle passive monitoring or if thermal imaging is critical.
