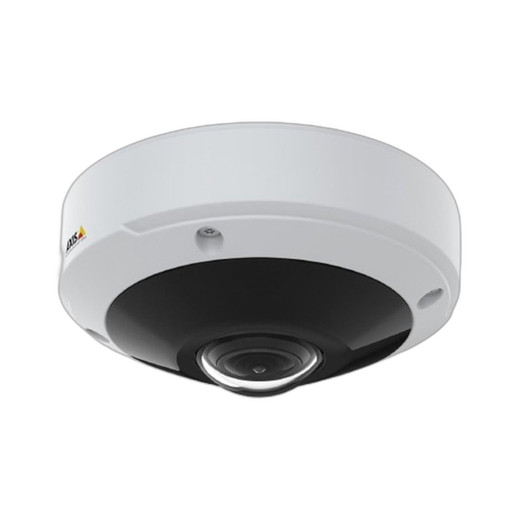

Axis M3057-PLR Mk II 6MP Outdoor Panoramic Dome - 02457-001

Axis 02457-001 M3057-PLR Mk II 6MP AI IR Outdoor Dome Camera

The Axis M3057-PLR Mk II (model 02457-001) is a high-performance outdoor surveillance dome built for 24/7 monitoring in harsh environmental conditions. It pairs a 6MP sensor with integrated artificial intelligence, dual low-light strategies (Lightfinder color imaging plus optimized infrared), and a 183° panoramic field of view that reduces camera count on large perimeter deployments. The panoramic design avoids the barrel distortion of 360° fisheye formats, meaning live monitoring and forensic review don't require dewarping software.

Key Features

• 6MP Resolution (2016×2016 pixels): Provides enough pixel density to resolve face detail and license plates at 15–20 meters — essential for forensic review and incident investigation without having to deploy additional cameras per zone.
• 183° Panoramic Field of View: Covers expansive outdoor areas (parking lots, perimeter fence lines, large warehouse entrances) with a single camera, cutting total system cost compared to multiple narrow-FOV units.
• Lightfinder Low-Light Technology: Delivers usable color video down to 0.16 lux — enough to capture clothing and vehicle color in twilight or under street lighting, improving investigative quality over IR-only footage.
• Optimized IR Illumination (Built-in): Integrated 850nm infrared allows continued surveillance in complete darkness without external lighting rigs. Covers the full panoramic view without dead zones.
• Forensic WDR (Wide Dynamic Range): Recovers shadow and highlight detail in high-contrast outdoor scenes (sun on concrete, vehicle headlights against dark background), preserving evidence quality in mixed lighting.
• AI-Powered Analytics at the Edge: Integrated intelligence classifies objects and events directly on the camera, reducing NVR CPU load and enabling sub-second alert response — avoids the lag of cloud-based post-processing.
• IP66 Sealing + IK10 Vandal Rating: IP66 blocks direct rain and dust spray; IK10 resists extreme impact (suitable for accessible outdoor locations where physical tampering is a realistic threat). Not rated for full submersion.
• PoE Power (802.3af): Draws under 13W, so a single Ethernet run handles both data and power — simplifies installation and eliminates a separate power supply at the mount point.
• H.264 Compression with Zipstream: Efficient encoding reduces bandwidth footprint 40–70% depending on scene complexity, meaningful when pushing 24/7 recordings to a network video recorder across congested links.
• Operating Range -40°C to +55°C: Rated for extreme cold (northern climates, high-altitude sites) and desert heat without performance degradation.

Integration & Compatibility

The M3057-001 supports standard ONVIF Profile S and RTSP, integrating with video management software platforms including Axis Camera Station, Milestone XProtect, and third-party VMS systems. Supports two-way audio for remote communication at the camera location. Firmware-based event triggering (motion, analytics) can push alerts to third-party systems or trigger external relays for gate/door control.

When to Choose a Different Model

If you require higher resolution (8MP or greater) for ultra-long-distance identification, evaluate a higher-megapixel variant in the outdoor IP camera family. If your deployment requires full submersion or frequent washdown with high-pressure water jets, step up to IP67 or IP68 rating. If you need motorized zoom (varifocal lens), the M3057-PLR Mk II's fixed 1.56mm lens is not the right fit — consider a turret or PTZ model with zoom capability.

Frequently Asked Questions

Q: What is the infrared range on the 02457-001?

A: The Axis M3057-PLR Mk II's optimized IR illumination covers the full 183° panoramic field of view. Effective range depends on target reflectivity and lens characteristics; consult the datasheet for specific distance calculations at various apertures.

Q: Does the Axis 02457-001 support edge analytics or does it require an NVR?

A: Yes, the M3057-PLR Mk II includes integrated AI analytics on the camera itself. Object classification and event detection happen at the edge, reducing NVR processing demand. You can configure alert rules (person, vehicle, loitering) directly on the camera without offloading to a server.

Q: Is the M3057-PLR Mk II rated for coastal or salt-spray environments?

A: The camera is IP66 sealed and constructed with PVC-free materials for environmental compliance, but there is no specific marine-grade corrosion rating documented. High-salt-fog sites may require additional stainless steel mounting hardware and periodic maintenance — confirm with the manufacturer for coastal deployments.

Q: What PoE switch requirements do I need to power multiple 02457-001 cameras?

A: Each camera draws approximately 12.95W maximum, well within standard 802.3af budget (15.4W per port). A typical 48-port PoE+ switch supports 20–30 M3057-PLR Mk II units depending on total switch power delivery. Use a PoE switch calculator or consult your switch documentation for exact budget.

Q: Can I mount the M3057-PLR Mk II on a wall instead of ceiling?

A: Yes, the camera supports wall and ceiling mounting via the included mounting bracket. Wall mounting tilts the panoramic view downward, covering an entrance or loading dock; ceiling mounting provides overhead perimeter coverage. Orientation affects field of view geometry — test the planned angle with the manufacturer's coverage planning tool.

Q: What is the warranty on the Axis 02457-001?

A: Axis typically provides a 3-year manufacturer warranty. Confirm exact terms and any extension options with your specialty retailer or contact Axis directly.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The Axis M3057-PLR Mk II (02457-001) represents a mature, pragmatic approach to panoramic outdoor surveillance. The dual low-light strategy—Lightfinder color capture at 0.16 lux plus built-in optimized IR—prioritizes forensic usability over extreme-distance IR throw. That's a correct tradeoff for most enterprise perimeter and facility deployments, where investigators need to identify faces and clothing color, not just thermal signatures at 100 meters.

Technical Highlights:

• 6MP @ 183° Panoramic View: Roughly 2.6MP per 60° wedge—enough for face/plate resolution at typical outdoor mounting heights (8–12 meters) without wasting megapixels on unused sky or distant background.
• Lightfinder + Optimized IR Hybrid: Captures usable color in twilight (0.16 lux), then falls back to IR in complete darkness. No mode-switching lag; continuous coverage without recording gaps or quality dropoff.
• Forensic WDR Processing: Critical for outdoor mixed-lighting scenes. Recovers shadow detail under vehicle bodies and underneath awnings while holding bright pavement—a real requirement for vehicle-based investigations.
• Edge AI Classification: Object detection (person/vehicle/package) runs on the camera. Pushes alerts in milliseconds rather than waiting for NVR or cloud post-processing. Reduces false-positive alert storms by filtering noise on the device itself.
• PoE @ 12.95W Max: Sits comfortably in 802.3af budget. Eliminates powered wall outlets at outdoor mount points—a genuine installation simplification on large perimeter builds.

Deployment Considerations:

• Panoramic Geometry Trade: 183° FOV means no motorized zoom. If a single deployment zone requires both wide overview and tight facial detail simultaneously, plan for two cameras (one M3057-PLR Mk II for context, one narrower-FOV unit for closeup). Don't expect the panoramic alone to do both jobs.
• IP66, Not IP67: Direct rain and spray are fine; sustained high-pressure washdown (car bays, truck wash facilities) may force water into seals over time. Confirm water-jet pressure ratings with the manufacturer before deploying in washdown zones.
• Datasheet Consultation Required: IR effective range, WDR processing behavior, and AI confidence thresholds vary by firmware version. Grab the latest datasheet and test coverage with your actual mounting geometry before commissioning.

Best-fit scenario: large outdoor perimeters (parking lots, warehouse grounds, campus entry gates) where a single 183° camera replaces 2–3 narrow-FOV units, edge analytics reduce NVR load on distributed systems, and color forensic detail matters more than extreme IR distance. The 02457-001 is not a close-range facial recognition camera—mount it 10+ meters out and frame context-first.

Key Specifications:
Color: White
