Axis F2107-RE 5MP Standard Sensor - 02868-001

Axis 02868-001 F2107-RE 5MP Standard Sensor

Overview

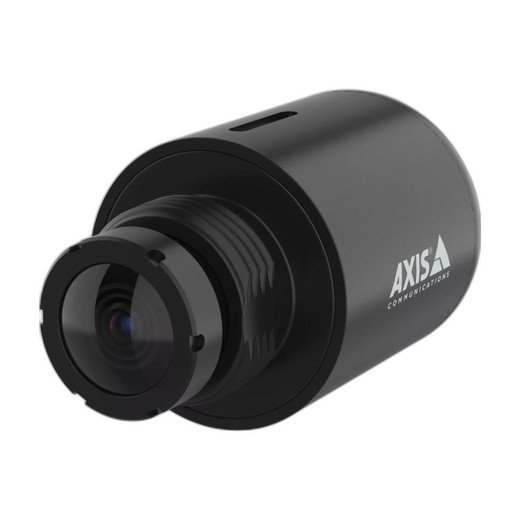

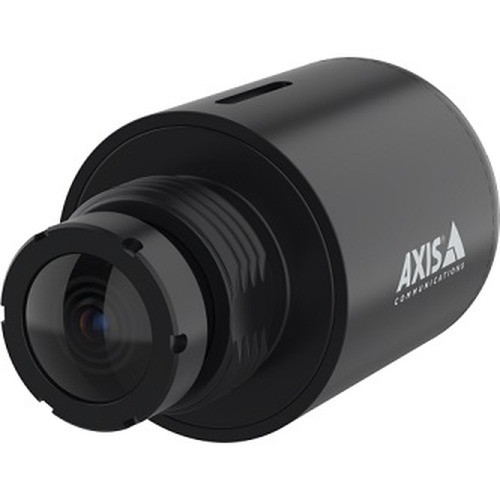

The Axis F2107-RE (02868-001) is a modular 5MP sensor unit engineered for discreet, rugged deployment in vehicles, machinery, and industrial environments where traditional fixed cameras cannot fit. This compact cylindrical sensor delivers 110° horizontal field of view and integrates with Axis F91 main units via SMA connector. It solves the problem of surveillance in confined spaces, vibration-prone installations, and high-washdown environments where modularity and durability matter more than form flexibility.

Compatibility

The F2107-RE is designed as a plug-and-play sensor unit for the Axis F-series modular camera architecture. It connects to compatible F91 main units via standard SMA connectors and shares accessory compatibility with other F21-series sensors. Up to three sensor units can be combined with a single F91 main unit for multi-view configurations. Confirm your F91 variant supports this sensor revision before ordering; datasheet cross-reference on axis.com/support will confirm integration details.

Installation Notes

The F2107-RE uses M12 fixed-mount connections and SMA signal connectors — no field-configurable lens adjustment. Minimum focus distance is 0.5m (1.6 ft). Operating temperature range is -40°C to 60°C (-40°F to 140°F), making it suitable for climate-controlled vehicles and outdoor industrial enclosures but not unheated arctic installations. The sensor draws typical 1W, max 1.8W — power delivery is handled by the paired F91 main unit. IP66, IP67, and IP6K9K ratings mean it resists dust ingress, direct water spray, and high-pressure cleaning systems up to 80 bar — verify your washdown PSI before deployment. The aluminum casing (black, NCS S9000-N) is PVC and BFR/CFR free per environmental standards.

What's in the Box

• 1x Axis F2107-RE Standard Sensor (02868-001)
