Axis F2107-RE 5MP Panoramic Sensor 8-pack - 02868-021

Axis 02868-021 F2107-RE 5MP Panoramic Sensor

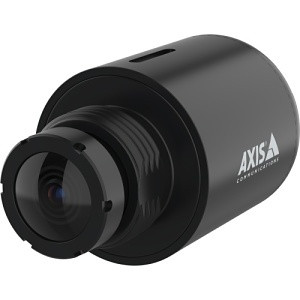

The AXIS F2107-RE is a modular panoramic sensor module engineered for multi-sensor surveillance deployments. This compact, rugged sensor integrates seamlessly with AXIS F91 series main units to deliver expansive coverage in demanding outdoor environments. The 8-pack (SKU 02868-021) is ideal for integrators building scalable, panoramic surveillance solutions across industrial, perimeter, and critical infrastructure applications.

Key Features

• 5 MP Resolution — Delivers 2592 x 1944 pixel imagery for detailed forensic review and real-time monitoring
• 110° Horizontal Field of View — 2.8mm fixed lens provides expansive panoramic coverage without pan-tilt mechanisms
• IP66/IP6K9K Environmental Rating — Dual-rated for harsh outdoor conditions, high-pressure water jets, and sustained exposure
• Built-In IR with 0.5m Range — Night vision capability for 24/7 surveillance in low-light environments
• Wide Dynamic Range (WDR) — Balances exposure across varied lighting conditions for consistent image quality
• PoE Class 5 Power — Operates via standard PoE+ infrastructure; simplified deployment without auxiliary power
• 30 fps @ 5 MP — Smooth motion capture and forensic-grade recording (frame rate varies with main unit configuration)
• Compact Design — Ø29.8mm diameter, 59mm length, 0.12 lbs (54g) — enables discrete mounting in multi-sensor arrays

Technical Specifications

• Operating Temperature: -40° to 60°C — reliable performance in extreme climates
• Environmental Compliance: PVC-free, BFR/CFR-free (JEDEC/ECA JS709), RoHS 2011/65/EU, 2015/863, EN IEC 63000:2018, REACH (EC 1907/2006)
• Compatible Main Units: AXIS F9111, F9111-R Mk II, F9114, F9114-R Mk II, F9114-B Mk II, F9104-B Mk II
• Warranty: 5 years

Applications

• Panoramic perimeter surveillance at industrial facilities and critical infrastructure
• Wide-area monitoring for logistics, ports, and transportation hubs
• Coastal and corrosive environments requiring IP6K9K weatherproofing
• Multi-sensor surveillance systems requiring modular scalability
• 24/7 outdoor monitoring with integrated night vision

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The F2107-RE excels in modular panoramic deployments where cost-effective, scalable coverage is critical. The 110° FOV eliminates the need for expensive PTZ units while maintaining forensic-grade 5 MP resolution. IP6K9K dual-rating ensures reliability in coastal and industrial environments where standard IP66 ratings fall short.

WDR and 0.5m IR enable consistent 24/7 performance across lighting extremes. Integration exclusively with F9 series main units ensures optimized performance within Axis's modular ecosystem. The compact form factor and PoE Class 5 simplicity make large-scale multi-sensor deployments logistically straightforward.

Ideal for integrators prioritizing reliability, environmental resilience, and standardized architecture over individual sensor customization.
