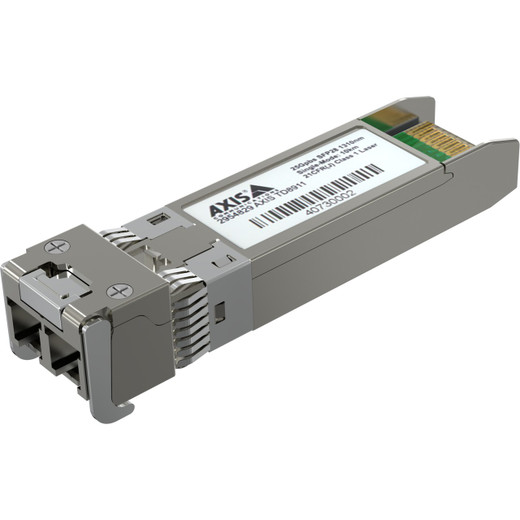

Axis 03064-001 SFP28 Fiber Module
Overview
The Axis 03064-001 is a hot-pluggable SFP28 transceiver engineered for enterprise surveillance networks, data center backbones, and distributed IP camera aggregation scenarios where fiber connectivity is mandatory. This module delivers 25 Gbps sustained throughput over single-mode fiber—roughly 20× the bandwidth of standard gigabit copper—enabling simultaneous 4K video streams from dozens of Axis IP cameras with headroom for redundancy and future growth. If you're consolidating camera feeds across multiple buildings or campus sites, the 03064-001 eliminates electrical noise, distance constraints, and ground-loop issues inherent to copper runs.
The module fits into any SFP28-capable Axis network switch or compatible device, making it a direct upgrade without rearchitecting your core infrastructure. Its hot-pluggable design means zero-downtime swaps for module replacement or failover—critical when surveillance cannot tolerate offline maintenance windows.
Key Features
- 25GBASE-LR Standard Compliance: Delivers 25 Gbps sustained line rate. For surveillance, this translates to encoding and transmitting simultaneous 4K streams from dozens of cameras without bottlenecks, or carrying legacy HD streams alongside modern high-bitrate analytics feeds on the same fiber pair. Compared to 1 Gbps copper, you gain roughly 20× capacity headroom.
- 10 km Extended Range Over Single-Mode Fiber: Transmits signal across 10 kilometers (6.21 miles) without signal regeneration or repeater equipment. Campus networks, inter-building links, and distributed warehouse or logistics facilities benefit—no intermediate active nodes required on the fiber run, reducing cost and failure points.
- 1310 nm Wavelength, Optimized for Low Dispersion: Operating at 1310 nm minimizes chromatic dispersion in standard single-mode fiber, delivering lower bit-error rates and longer reliable transmission distance. For 24/7 surveillance recording, even brief signal degradation can trigger recorder alarms or stream interruptions; this wavelength choice reduces that risk significantly.
- Hot-Pluggable SFP28 Form Factor: Swap the module in or out while the network device remains powered and operational. No need for scheduled maintenance windows—ideal for surveillance systems where any downtime is operationally disruptive.
- LC Duplex Connectors: Industry-standard fiber optic interface. Your existing single-mode fiber plant almost certainly terminates in LC connectors, meaning installation is literally plug-and-play with zero connector adaptation labor or re-termination costs.
- Operating Temperature Range 0°C to 70°C (32°F to 158°F): Functions reliably in unheated equipment closets, outdoor network enclosures, and environments with temperature swings. Storage tolerance extends to -40°C to 85°C, so the module survives warehouse shelving and transport before final deployment.
- RoHS 2011/65/EU and RoHS 2015/863 Compliance; EN55032 Class B Emissions: Meets enterprise procurement mandates and EU environmental directives. No lead-containing solder, no brominated flame retardants—required for enterprise contracts and regulated verticals such as healthcare, finance, and critical infrastructure.
- PVC-Free, BFR/CFR-Free Housing: Reduces toxic emissions in enclosed equipment racks and data centers. Matters for long-term HVAC performance and facility air quality in server rooms where passive cooling depends on clean airflow.
Integration & Compatibility
The 03064-001 is optimized for Axis network switches and compatible with all Axis products featuring SFP, SFP+, or SFP28 module slots. Verify your switch has an available SFP28 port before ordering—some Axis models support SFP+ (10 Gbps) slots only, which will not harness this module's full 25 Gbps capacity. For network switch selection and fiber planning, consult your system architecture documentation or contact a systems integrator familiar with your IP camera deployment.
Compliance with SFF-8402 (SFP28 mechanical specification), IEC/EN60825-1 Class 1 laser safety, and EN55035 (electromagnetic immunity) ensures interoperability with standard fiber plant infrastructure.
When to Consider Alternatives
If your network spans fewer than 300 meters or you have no existing fiber infrastructure, a 10 Gbps SFP+ module paired with multimode fiber may be more cost-effective and simpler to install. If you need distances beyond 10 km without regeneration, consult Axis extended-range modules or hybrid repeater solutions. For purely indoor, short-range surveillance aggregation, high-speed copper switching may prove more practical.
Frequently Asked Questions
Q: Is the Axis 03064-001 compatible with older SFP slots?
A: No. The 03064-001 is an SFP28 module (25 Gbps form factor). Older SFP and SFP+ slots will not accept this form factor. Verify your switch features available SFP28 ports before purchase.
Q: What type of single-mode fiber does the 03064-001 work with?
A: The module operates with standard ITU-T G.652 single-mode fiber. Most existing campus and long-distance fiber plants use this standard. Confirm your fiber type with your infrastructure team to avoid compatibility surprises.
Q: Can I mix the 03064-001 with older 10 Gbps SFP+ modules on the same switch?
A: Yes, if your switch has both SFP+ and SFP28 slots. However, you cannot plug an SFP28 module into an SFP+ slot or vice versa. Plan your module inventory and switch ports accordingly.
Q: Does the 03064-001 support any special diagnostic or monitoring functions?
A: The module complies with standard SFP28 diagnostics (SFF-8636), including real-time optical power monitoring and temperature telemetry. Most Axis switches expose this data via SNMP or the device web interface for operational visibility.
Q: What is the maximum cable run without regeneration?
A: 10 kilometers (6.21 miles) over standard single-mode fiber at 1310 nm wavelength without intermediate repeaters or regeneration.
Q: Is the 03064-001 RoHS and WEEE compliant for EU procurement?
A: Yes. The module meets RoHS 2011/65/EU and RoHS 2015/863. Compliance documentation is available from the manufacturer for procurement audits.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Axis 03064-001 is a no-nonsense choice for enterprise surveillance backbones and campus fiber deployments where 10 Gbps capacity has become a throughput bottleneck. If you're running a distributed IP camera network across multiple buildings or consolidating streams from 30+ 4K cameras into a central NVR, this module delivers the headroom you need without forcing a complete fiber plant overhaul.
Technical Highlights:
- 25 Gbps Line Rate (25GBASE-LR): Delivers roughly 20× the bandwidth of standard gigabit copper. On a single fiber pair, you can carry simultaneous 4K streams from dozens of cameras, redundant control traffic, and future analytics feeds without saturation or transcoding losses.
- 10 km Extended Range at 1310 nm: Eliminates the need for intermediate regeneration equipment on long campus or inter-building runs. Chromatic dispersion at 1310 nm is inherently low in standard G.652 single-mode fiber, yielding stable 24/7 operation and low bit-error rates.
- Hot-Pluggable Form Factor: Swap modules during live operation. Critical for surveillance where scheduled maintenance windows are operationally impossible—your recorder uptime target remains intact.
Deployment Considerations:
- Verify your Axis switch actually has SFP28 ports. Mixing SFP28 and SFP+ slots on the same switch is common, but you cannot force an SFP28 module into an older SFP+ port. Check your switch documentation before ordering.
- Single-mode fiber requires proper termination and testing. If your plant is already live, bring in a certified fiber tech to verify insertion loss and ensure you're not degrading the channel with poor connectors or untested splice points.
- The operating temperature range (0°C to 70°C) is tight for outdoor enclosures in extreme climates. In cold regions, unheated network cabinets may dip below 0°C during winter outages. Plan your enclosure cooling or heating accordingly.
The 03064-001 excels in large-scale surveillance deployments where fiber is already present and you need to reclaim bandwidth from aging 10 Gbps infrastructure. For new installations with no fiber plant, weigh the cost of fiber termination against the long-term operational benefits—typically a sound investment for multi-building sites or high-density camera networks. This is a specialist component, not a general-purpose upgrade; install it where distance, EMI immunity, and bandwidth bottlenecks are real operational constraints.
