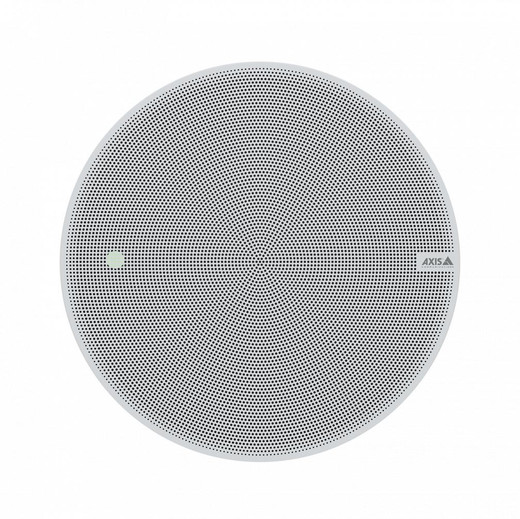

Axis 02323-001 Compact Network Ceiling Speaker
The Axis 02323-001 is a purpose-built network audio device for IP-integrated facilities requiring distributed voice announcements, emergency paging, and background audio without dedicated analog amplifiers. This compact ceiling-mount speaker connects directly to your IP infrastructure via a single PoE cable, eliminating separate power runs and simplifying both installation and central management. It integrates with Axis surveillance ecosystems and third-party VoIP platforms, making it a straightforward choice for retail, corporate, education, and healthcare deployments where audio and video need to coexist on the same network backbone.
Key Features
- Power over Ethernet (PoE) — Single-Cable Simplicity: Draws under 13W via standard 802.3af PoE, so it operates from any PoE-equipped switch without a separate power supply. Cuts installation labor and reduces cable clutter in drop ceilings.
- Wired Network Connectivity: RJ-45 Ethernet interface ties the speaker directly to your LAN, ensuring low-latency, high-reliability audio delivery over IP. No Wi-Fi interference, no battery concerns.
- Compact Ceiling Form Factor: Designed for flush or semi-recessed mounting in standard ceiling grids. Discreet profile keeps aesthetics intact in office and retail environments where a visible speaker would clash with decor.
- Centralized Remote Management: Configure and monitor audio levels, test speaker status, and trigger announcements from a network management console. Eliminates field trips to adjust volume or diagnose failures.
- VoIP and Paging Integration: Pairs with SIP-based PBX systems and Axis audio platforms for live paging, scheduled announcements, and emergency broadcasts without proprietary telephony hardware.
- Indoor Rated for Standard Environments: Designed for climate-controlled spaces (offices, retail, schools, hospitals). Not rated for outdoor, wet, or extreme-temperature areas — if you need exterior audio, specify a different model in the Axis outdoor speaker family.
- ONVIF Audio Support: Adheres to open IP standards, so it integrates with any ONVIF-compliant VMS or audio management platform, not locked to Axis software alone.
- Included Ceiling Mount and PoE Injector: Ships with mounting template and hardware for rapid ceiling installation, plus a PoE injector for sites where the network switch lacks PoE ports — standard for rapid deployment.
Integration and Compatibility
The 02323-001 connects to IP networks via standard Ethernet (RJ-45). It operates within any network that supports PoE, making it compatible with Axis IP cameras and surveillance systems sharing the same LAN. It also integrates with third-party network audio platforms and voice-over-IP (VoIP) PBX deployments via ONVIF audio streams. For sites already running Axis camera systems and NVRs, this speaker extends the same IP backbone to audio, simplifying cabling and management.
If your facility requires multiple speakers across zones, each unit configures independently and responds to centralized paging commands. For larger deployments, pair multiple 02323-001 units with an Axis audio controller or matrix to assign different messages to different zones.
What's in the Box
- 1x Axis C1211-E Compact Network Ceiling Speaker (02323-001)
- 1x Ceiling Mounting Kit (template, anchors, and fasteners)
- 1x PoE Injector (802.3af)
- 1x Quick Installation Guide
- 1x Warranty and Support Documentation
Frequently Asked Questions
Q: Does the Axis 02323-001 require a separate PoE switch, or can I use the included injector?
A: The PoE injector is included for sites where the network switch lacks PoE ports. If your network switch already supports 802.3af PoE, you can connect the speaker directly to a PoE port and skip the external injector.
Q: Can I use the 02323-001 outdoors or in wet environments?
A: No. This speaker is rated for indoor use only. It is not IP-rated for weather, moisture, or temperature extremes. For outdoor audio, consult the Axis outdoor speaker lineup.
Q: What audio formats or codecs does the 02323-001 support?
A: The speaker supports standard IP audio streams (G.711, G.726, AAC, and PCM) over RTP. It works with SIP-based VoIP systems and ONVIF audio platforms that transmit these formats.
Q: Can I integrate the 02323-001 with a third-party VMS like Milestone XProtect or Genetec?
A: Yes. The speaker supports ONVIF audio output, so any ONVIF-compliant VMS can route audio to it. Verify your VMS version supports ONVIF audio; most modern versions do.
Q: What is the maximum cable run from a PoE switch to the speaker?
A: Standard Ethernet specs apply: up to 100 meters (328 feet) for Category 5e or better cabling. Beyond that distance, use a PoE extender or run a new line.
Q: What is the warranty coverage on the 02323-001?
A: Axis provides a standard 3-year manufacturer warranty covering defects in materials and workmanship. Coverage details are included in the documentation box.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Axis 02323-001 is a no-nonsense fit for facilities already committed to IP-based surveillance and automation. The PoE architecture eliminates a genuine pain point: analog speaker wiring and dedicated low-voltage infrastructure running parallel to your camera cabling. One RJ-45 to each speaker, one PoE budget calculation, one management console for video and audio — that's the real win here, not marketing language about 'seamless integration.'
Technical Highlights:
- Sub-13W PoE Draw: The 02323-001 operates on standard 802.3af, meaning you won't strain a shared PoE budget with multiple speakers. On a 95W PoE switch, you can run six to seven of these units without hitting headroom limits — critical math for large rollouts.
- Wired Ethernet Only: No Wi-Fi fallback; that's deliberate. Audio over Wi-Fi introduces latency and jitter that break synchronization in multi-speaker emergency announcements. Hardwired Ethernet guarantees the timing your PBX and fire alarm system depend on.
- ONVIF Audio Profile: The speaker transmits and receives audio via ONVIF, so any VMS or third-party paging controller that speaks ONVIF can address it directly — no Axis-only software lock-in required.
Deployment Considerations:
- Plan your PoE budget before ordering. Six speakers at ~12W each = 72W of your switch's allocated pool. Verify your switch's actual per-port and total PoE limits in the datasheet — marketing specs often cite peak, not sustained availability.
- The included injector is useful for retrofit scenarios, but it's single-port and sits inline. For permanent installations with many speakers, budget for a managed PoE switch instead — lower latency, easier troubleshooting.
- Indoor-only rating is a hard boundary. Ceiling mount works in climate-controlled drop ceilings and suspended tile systems, but not plenums, attics, or outdoor soffits. Plan speaker locations accordingly.
Deploy the 02323-001 in retail stores needing zone-based paging, corporate campuses running SIP trunks, or hospitals requiring staff alerts across departments. Pair it with an Axis audio manager or your existing VoIP platform, and you've consolidated IP infrastructure without sacrificing audio reliability.
