Enclosure:

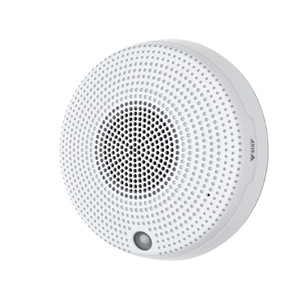

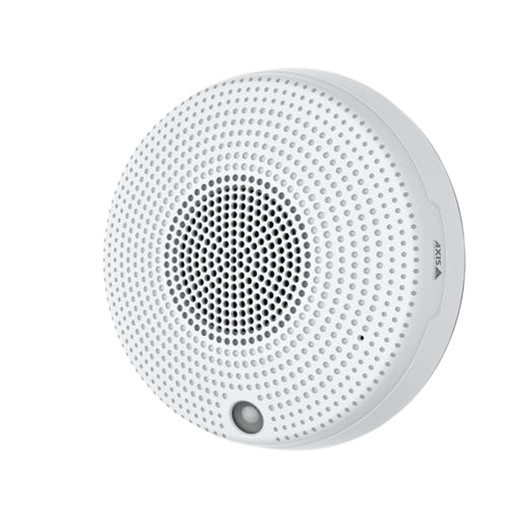

Enclosure with 2.5" dynamic cone speaker
Max sound pressure level:
90 dB
Frequency response:
100 Hz - 20 kHz
Coverage pattern:
145° coaxial
Audio input/output:
Built-in microphone (can be disabled)
Built-in microphone specification:
50 Hz - 12 kHz
Amplifier description:
Built-in 7 W Class D amplifier
Digital signal processing:
Built-in and pre-configured
AXIS Audio Manager Edge:
Built in: – Content management for music and live/pre-recorded announcements. – Scheduling to decide when and where to play specific content. – Content prioritization to ensure urgent messages interrupt the schedule.
AXIS Audio Manager Pro:
For larger and more advanced systems. Sold separately. See separate datasheet for specifications.
AXIS Audio Manager Center:
AXIS Audio Manager Center is a cloud service for remote access and management of multi-site systems.
Audio streaming:
Two-way audio, mono, echo cancellation
Audio encoding:
AAC LC, G.711 PCM, G.726 ADPCM, MP3 64-320 kbps
Model:
i.MX 6ULL
RAM:
256 MB RAM, 512 MB Flash
Network protocols:
IPv4/v6a, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, NTCIP, SIP (Cisco, Avaya, Asterisk)
Application Programming Interface:
Open API, VAPIX, ACAP, cloud integration
VoIP:
SIP compatible, tested with Cisco/Bria/Grandstream/Asterisk
Intelligent audio:
Auto Speaker Test (verification via built-in microphone)
Features:
Virtual inputs, AXIS Camera Application Platform (ACAP) Call: DTMF, State changes
Event actions:
Play audio, SNMP trap, email, HTTP, HTTPS, TCP
Built-in installation aids:
Test tone verification and identification
Edge security:
Signed firmware, brute force protection, OAuth 2.0
Network security:
IEEE 802.1X, TLS 1.2/1.3, X.509 PKI, firewall
Documentation:
AXIS OS Hardening Guide Axis Vulnerability Management Policy Axis Security Development Model AXIS OS Software Bill of Material (SBOM)
Casing:
Plastic, IP40, White, Repaintable
Power Type:
PoE
Connectors:
RJ45 10BASE-T/100BASE-TX PoE
Reliability:
Designed for 24/7 operation.
LED indicators:
Status LED, front-facing LED
PIR sensor:
PIR motion sensor, 6m range
Operating:
–20 °Cto 50 °C(4 °Fto 122 °F)
conditions:
Humidity 10–85% RH (condensing)
Storage Capacity:
-40 °C to 65 °C (-40 °Fto 149 °F)
Approvals:
EMC EN 55032 Class B, FCC Part 15B, IEC 62368-1
Dimensions:
Ø182 X 52 mm (7.2 x 2.1 in)
Weight:
600 g (1.3 lb)
Included:
Installation Guide, AVHS authentication key
Optional:
AXIS T91A33 Lighting Track Mount,
accessories:
AXIS T91A23 Tile Grid Mount, AXIS TC1601 Universal Mount
Mounting option:
Ceiling mount (soft tile)
Video:
AXIS Companion, AXIS Camera Station, video management
management:
software from Axis’ Application Development Partners available
software:
on axis.com/techsup/software
Languages:
English, German, French, Spanish, Italian
Warranty:
5-year warranty
Housing Color:
White
