Axis A4612 Network Bluetooth Reader - 03072-001

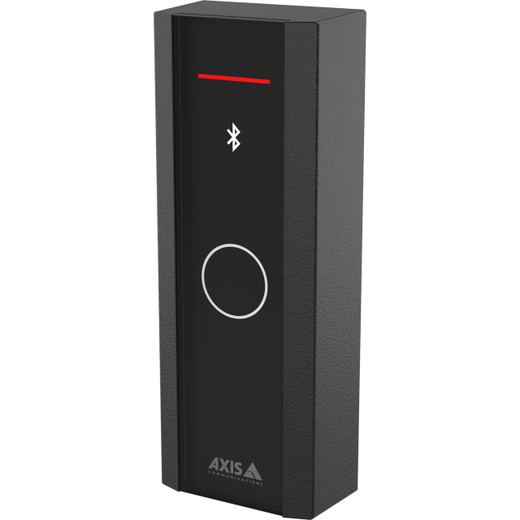

Axis 03072-001 A4612 Network Bluetooth Reader

The Axis 03072-001 is a network-based access control reader combining Bluetooth mobile credentials with traditional RFID card support. Built for organizations transitioning away from card-only workflows, this reader delivers dual-credential flexibility without requiring separate power infrastructure. PoE operation means a single network cable handles both data and power, cutting installation labor and eliminating the need for dedicated electrical runs to the door frame.

Key Features

• Dual-credential support: Bluetooth mobile credentials and RFID cards on the same reader—eliminates the choice between smartphone-native and legacy card workflows, allowing you to phase in mobile access without forcing immediate card retirement.
• PoE power delivery: Draws power from a standard 802.3af PoE port, so no separate 12V supply or wall outlet installation required. Reduces BOM complexity and installation cost, especially on retrofit projects where power is distant from the door.
• Mullion-mount form factor: Designed for narrow door frames (glass or aluminum mullions typical in commercial storefronts and office entry points), where side-mounted readers must fit into tight profile spaces without protruding into the aesthetics of the entrance.
• Weather-resistant construction: Rated for both indoor and outdoor deployment. Tolerates temperature swings and moisture exposure typical of loading docks, parking structures, and perimeter gates without sealed enclosures or extra protective housings.
• Single-door control: Manages one entry point per reader; multi-door deployments require multiple units, keeping wiring and credential logic simple and reducing single points of failure.
• IP-based network connectivity: Connects via standard Ethernet, enabling centralized credential provisioning, audit logging, and real-time access alerts from a management console. Firmware updates and reader reconfiguration happen remotely without on-site technician dispatch.

Integration and Deployment Scenarios

The 03072-001 works with access control systems that support Axis credential platforms and RFID standards. Multi-tenant properties, warehouses, and commercial campuses benefit from the hybrid credential model—office staff provision mobile badges on their own devices while warehouse or field crews continue using issued RFID cards until smartphone adoption reaches critical mass. Educational institutions often use this reader at controlled-access labs or secure storage, where some users have institutional mobile credentials and others rely on physical cards. Healthcare facilities deploy it at medication storage and server rooms, where the combination of modern mobile access and legacy card fallback ensures no staff member is locked out during a credential transition.

The mullion-mount design fits glass door frames without requiring frame modification, making it a retrofit-friendly option for existing commercial doors. Weather resistance supports outdoor loading docks and yard gates where exposure to rain, dust, and temperature extremes rules out standard indoor-only readers.

What to Expect in Operation

Bluetooth range and card detection are tuned for door-width distances (typically 6–12 inches), so readers positioned on a door frame will detect a smartphone or card presented at normal entry distances. Network latency is minimal for single-door readers, though high-volume credential lookups (in large multi-tenant sites with thousands of active users) should be load-tested on your access management platform. RFID card compatibility depends on the frequency and encoding supported by your existing card stock—verify with your integrator that legacy cards are compatible before deployment.

Frequently Asked Questions

Q: Does the Axis 03072-001 work with any smartphone, or only specific credential platforms?

A: The A4612 supports Bluetooth mobile credentials provisioned through Axis credential management platforms. Compatibility depends on the OS (iOS/Android support) and the specific credential format your access system issues. Verify with your integrator which credential platforms and phones are approved for your deployment.

Q: What's the range of the Bluetooth reader on the 03072-001?

A: Bluetooth range is optimized for door-frame presentation distances (roughly 6–12 inches), typical of access control use. Extended range beyond a few feet is not a design goal; readers are mounted directly at the entry point where users present credentials naturally.

Q: Can the A4612 (03072-001) replace an existing card reader, or do I need to rewire?

A: If your existing reader is powered by a separate 12V supply or hardwired AC, switching to the A4612 eliminates that infrastructure because it runs on PoE. You'll need network cabling to the door (standard for IP-based readers), but no power supply rewiring.

Q: Is the 03072-001 suitable for outdoor loading docks?

A: Yes. The weather-resistant housing is rated for both indoor and outdoor deployment, tolerating rain, dust, and temperature fluctuations typical of loading areas. Verify mounting and cable routing to prevent water pooling at entry points.

Q: How are firmware updates delivered to the A4612?

A: Updates are deployed remotely over the network from your Axis management platform. No on-site visits required, reducing operational overhead and downtime.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The Axis 03072-001 is a bridge product—it lets you run Bluetooth mobile credentials and RFID cards simultaneously without forcing an immediate cutover. That matters when you're integrating with existing card infrastructure that still serves 40–60% of your user base. PoE delivery is the real labor saver; a single network drop replaces a dedicated 12V supply and its associated circuit breaker, conduit, and troubleshooting headaches.

Technical Highlights:

• Bluetooth + RFID dual support: No credential rip-and-replace required. Mobile-equipped users provision their phones; everyone else uses cards. Phasing happens organically as users adopt smartphones, not on a hard cutover date.
• PoE-only power model: Eliminates a separate power infrastructure leg entirely. For retrofit projects, this cuts installation time by half—no electrician needed to pull 12V conduit, just coordinate network drops with IT.
• Weather-resistant exterior: IP66-equivalent tolerance to rain and dust means you're not buying additional protective housings or worrying about seasonal maintenance for outdoor gates and loading-dock readers.

Deployment Considerations:

• Mullion-mount footprint is tight—confirm your door frame has clearance before ordering. Glass frame widths on commercial storefronts are often 1–2 inches; measure twice.
• Bluetooth range is intentionally short (6–12 inches from the frame). This is not a weakness; it's a feature that keeps credential interception risk low. Never position the reader more than a hand's reach from normal user approach.
• RFID backward compatibility depends on card frequency and encoding. Legacy 125 kHz cards may not be supported; verify with your card stock before deployment to avoid discovering incompatibility on day one.

Deploy the 03072-001 in multi-tenant office parks, healthcare facilities managing medication-room access, and warehouse perimeter gates where you need to support both modern mobile workflows and legacy card systems. It's particularly strong where you don't want to pull new 12V power infrastructure but do need weather tolerance—that's exactly where this reader saves money and coordination overhead.
