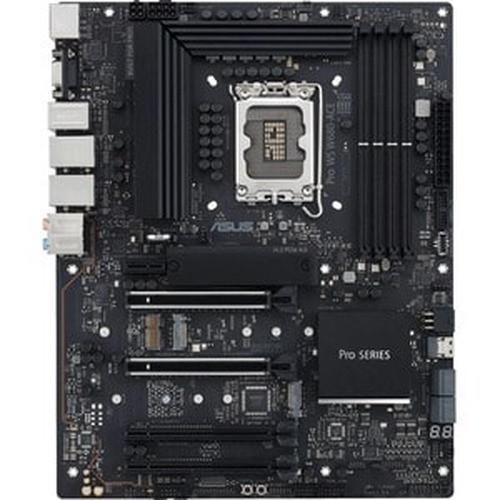

ASUS PROWSW680-ACE Motherboard

Overview

The ASUS PROWSW680-ACE is an ATX workstation motherboard designed for Intel W680 chipset systems. It provides a robust foundation for demanding applications, including high-performance computing and workstation builds. This board supports Intel 12th/13th Gen Core processors and ECC DDR5 memory, offering enhanced stability and data integrity crucial for mission-critical deployments. Its dual PCIe 5.0 x16 slots enable support for the latest high-bandwidth expansion cards, making it suitable for professional graphics, high-speed storage controllers, or network interface cards.

Compatibility

This motherboard utilizes the LGA 1700 socket and is compatible with Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i5, Intel® Core™ i7, and Intel® Core™ i9 processors from the 12th and 13th generations. It supports up to 128 GB of DDR5 memory across four DIMM slots, including ECC and non-ECC unbuffered memory modules. For storage, it supports both HDD and SSD drives via M.2 (NVMe), SATA III interfaces, with 8 SATA III ports and 3 PCIe 4.0 M.2 slots, accommodating up to 11 total storage drives. RAID configurations (0, 1, 5, 10) are supported for data redundancy and performance.

Installation Notes

The PROWSW680-ACE features dual Intel 2.5 Gb Ethernet ports for high-speed network connectivity. It includes a USB 3.2 Gen 2x2 front panel connector for rapid data transfer to external devices. The SlimSAS interface provides flexible storage connectivity options. Ensure proper CPU cooler mounting and RAM installation for optimal performance and stability. The dual PCIe 5.0 slots require adequate chassis airflow to manage heat from high-performance GPUs or accelerators.
