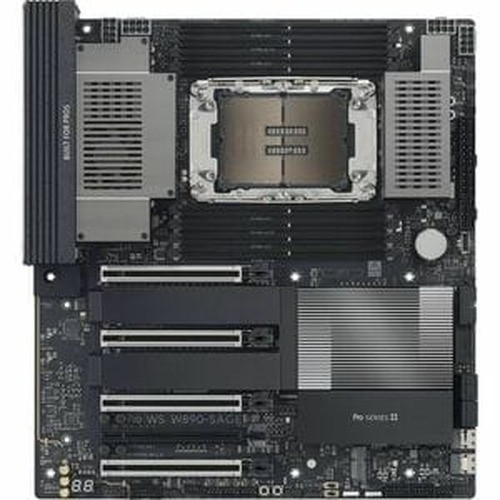

ASUS PRO WS W890-SAGE Intel W890 (lga 4710-2) CEB Workstation Motherboard PCIE

ASUS PRO WS W890-SAGE Intel W890 CEB Workstation Motherboard

Overview

The ASUS PRO WS W890-SAGE is a CEB-form-factor workstation motherboard built around the Intel W890 chipset and LGA 4710-2 socket, purpose-designed for Intel Xeon W-3500 and W-2500 series processors. At 14.96 x 12.59 inches and weighing 5.56 lb, this board is sized for standard CEB workstation chassis and targets the segment where compute density, ECC memory reliability, and multi-drive storage headroom are non-negotiable — think engineering simulation workstations, high-throughput video production nodes, and professional workstation builds running memory-sensitive workloads around the clock.

If you are evaluating boards for a multi-camera surveillance server, video analytics edge node, or security operations workstation, the PRO WS W890-SAGE (often searched as PRO WS W890 SAGE) delivers the memory bandwidth and storage I/O architecture to support those environments at scale.

Key Features

• LGA 4710-2 Socket for Intel Xeon W Processors: Supports the full Intel Xeon W-3500 and W-2500 series — processors with up to 60 cores in the same socket. If you are running parallel analytics workloads, AI inferencing pipelines, or multi-stream video decoding, the socket ceiling is high enough that the board will outlast most software refresh cycles before compute becomes the bottleneck.
• 8-Slot DDR5 ECC Quad-Channel Memory: Eight DIMM slots in a quad-channel DDR5 configuration means maximum theoretical memory bandwidth scales significantly compared to dual-channel DDR4 platforms. ECC support is the critical differentiator for 24/7 workstation environments — single-bit memory errors are silently corrected rather than silently corrupting long-running compute jobs or recorded data streams. Size your DIMMs for the workload; the eight slots give you room to grow without a board swap.
• 10-Drive Storage Support Across M.2, SATA III, and SlimSAS: Supporting up to 10 storage devices — including HDDs and SSDs across M.2, SATA III, and SlimSAS interfaces — this board handles configurations that combine fast NVMe boot and cache drives with high-capacity spinning storage. For a surveillance recording server or media archive node, that means you can deploy NVMe for the OS and database tier while filling SlimSAS and SATA III with surveillance-rated HDDs, all on one board without an HBA add-in card in simpler configurations.
• RAID 0, 1, 5, and 10 Support: Onboard RAID across all four standard levels means you can configure redundant storage without a dedicated RAID controller for many workloads. RAID 5 across four drives protects against a single-drive failure while reclaiming three-quarters of raw capacity — a practical baseline for a local video retention array where drive failure cannot mean data loss.
• PCIe Expansion Interface: The PCIe expansion interface supports add-in cards for GPU compute, HBA storage controllers, 10GbE or 25GbE NICs, and capture cards. For a surveillance analytics node, that expansion slot inventory is where you install the GPU for deep learning inference or the additional NIC for network segmentation between camera VLANs and management networks.
• Maximum 7680 x 4320 Display Output: Supports display output up to 7680 x 4320 (8K UHD) resolution — relevant for video wall operator workstations or multi-monitor security operations centers where pixel density on the display side needs to keep up with high-resolution camera feeds being reviewed in real time.
• USB 2.0 Internal Headers: Two USB 2.0 internal connectors support legacy peripherals, front-panel I/O, and dongles for software license keys — a practical detail on workstation builds where VMS or analytics software licensing still uses USB hardware keys.
• CEB Form Factor for Standard Workstation Chassis: The CEB (Compact Electronics Bay) standard is widely supported by tower and rack workstation chassis from major vendors. At 14.96 x 12.59 x 3.93 inches, verify chassis compatibility before ordering — CEB is not the same as E-ATX, and some enthusiast cases do not support it despite similar dimensions.

Integration and Compatibility

The PRO WS W890-SAGE targets Intel Xeon W processor deployments on the LGA 4710-2 platform. DDR5-SDRAM is the only supported memory type — DDR4 DIMMs will not seat or operate on this board. Plan your memory procurement accordingly; DDR5 ECC RDIMMs for Xeon W platforms carry a cost premium over consumer DDR5, but the ECC requirement is inherent to the platform for mission-critical builds.

Storage integration spans M.2 slots for NVMe SSDs, standard SATA III for SATA SSDs and HDDs, and SlimSAS connectors for higher-density drive backplane connections. For surveillance and network video recorder server builds, SlimSAS backplane compatibility lets you connect multi-bay drive cages without running individual SATA cables to each bay. Confirm SlimSAS cable availability and backplane compatibility for your specific chassis.

The PCIe architecture supports the add-in card ecosystem — PoE switches and network infrastructure, GPU cards for analytics acceleration, and capture or encoder cards all integrate through standard PCIe slots. Pair with a compatible professional-grade chassis and power supply rated for Xeon W TDP; these processors can draw substantially more than typical desktop CPUs under sustained load.

Frequently Asked Questions

Q: What processors are compatible with the PRO WS W890-SAGE?

A: The board uses the LGA 4710-2 socket and is compatible with Intel Xeon W-3500 and W-2500 series processors. No other processor lines are supported on this socket.

Q: Does the PRO WS W890-SAGE support ECC memory?

A: Yes. The board supports DDR5 ECC SDRAM across eight DIMM slots in a quad-channel configuration. ECC is required for most Xeon W workstation deployments and is natively supported by the platform.

Q: How many storage drives can the PRO WS W890-SAGE support?

A: Up to 10 storage devices total, including up to 4 HDDs, across M.2, SATA III, and SlimSAS interfaces.

Q: What RAID levels does the PRO WS W890-SAGE support?

A: The board supports RAID 0, 1, 5, and 10.

Q: Is the PRO WS W890-SAGE compatible with standard workstation chassis?

A: It uses the CEB form factor (14.96 x 12.59 inches). CEB is a distinct standard from ATX and E-ATX — verify your chassis explicitly lists CEB support before purchasing.

Q: What is the maximum display resolution supported by the PRO WS W890-SAGE?

A: The board supports display output up to 7680 x 4320 pixels (8K UHD).

James Everett

When evaluating the PRO WS W890-SAGE for a surveillance analytics or security operations workstation build, the spec that anchors the decision is the eight-slot DDR5 ECC quad-channel memory subsystem on the LGA 4710-2 platform. Running 24/7 VMS servers or AI-based video analytics pipelines on non-ECC memory is an operational risk; the ECC support here is not a checkbox feature — it is the reason you choose this platform over a consumer-grade board for anything that cannot afford silent data corruption.

Technical Highlights:

• LGA 4710-2 Socket: Designed for Intel Xeon W-3500 and W-2500 series processors, this socket supports configurations well above what typical analytics workstations need today — meaning the board does not become the limiting factor as workload demands increase over a 4–5 year deployment window.
• 10-Drive Storage with SlimSAS: Supporting up to 10 storage devices across M.2, SATA III, and SlimSAS interfaces is practically significant for local video retention builds. SlimSAS enables backplane connectivity for multi-bay cages, which keeps cabling manageable in a rack-mount chassis compared to running individual SATA cables to 8+ drives.
• RAID 0/1/5/10 Onboard: Onboard RAID 5 across four drives gives you a cost-effective redundancy baseline without adding a dedicated HBA controller to the BOM — relevant when the chassis budget is already committed to the processor and memory configuration.

Deployment Considerations:

• CEB is not interchangeable with E-ATX despite similar physical dimensions — confirm chassis compatibility explicitly. Several popular tower workstation cases support one but not the other, and the board's 14.96 x 12.59 inch footprint will physically fit some E-ATX cases but not align to the mounting standoffs correctly.
• DDR5 ECC RDIMMs for the Xeon W platform are a separate procurement from consumer DDR5 — they are not interchangeable. Budget and source them from your memory vendor before committing to this board, particularly if lead times on DDR5 ECC are a factor in your deployment schedule.

The PRO WS W890-SAGE is the right call for a purpose-built surveillance analytics workstation where a senior integrator is deploying GPU-accelerated video analytics, a multi-stream VMS backend, or a local AI inferencing node alongside high-capacity surveillance HDD arrays — and where ECC memory integrity and storage density on a single board are hard requirements, not nice-to-haves.
