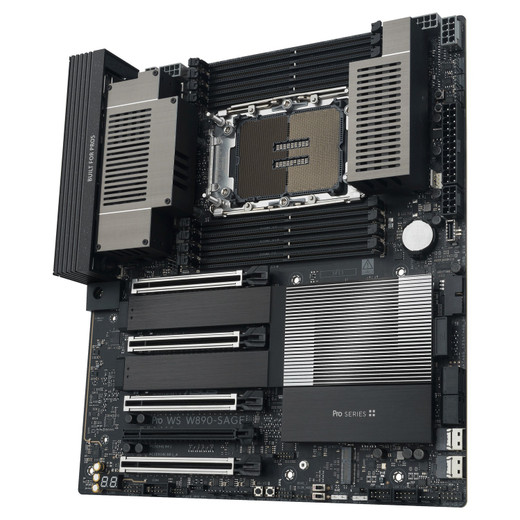

ASUS PRO WS W890-SAGE Intel W890 LGA4710-2 Workstation Motherboard

The ASUS PRO WS W890-SAGE is a purpose-built workstation motherboard targeting professional content creation, engineering simulation, and compute-intensive enterprise workloads that demand Intel Xeon scalability, ECC memory integrity, and flexible multi-device storage — all in a single platform. Designed around the LGA 4710-2 socket, the ASUS PRO WS W890-SAGE supports Intel Xeon processors paired with the Intel W890 chipset, delivering the compute headroom and I/O density that differentiation at workstation-class deployments requires.

Key Features

• LGA 4710-2 Socket with Intel W890 Chipset: Compatible exclusively with Intel Xeon processors — the processor class that carries Intel's full ECC memory pipeline and professional-grade reliability guarantees. If your workload requires ECC memory (scientific compute, CAD, financial modeling), the Xeon + W890 pairing is the correct foundation; consumer-grade Intel Core platforms do not offer this guarantee.
• 8 x DIMM Slots — DDR5, Quad-Channel ECC: Eight DDR5 DIMM slots in a quad-channel configuration means you can populate up to four independent memory channels simultaneously, roughly doubling effective memory bandwidth compared to dual-channel. ECC support corrects single-bit memory errors in real time — critical for 24/7 rendering nodes or any environment where silent data corruption is unacceptable.
• Flexible Storage — M.2, SATA III, and SlimSAS: The board supports up to 10 storage devices across three interface types: M.2 for NVMe SSDs (low-latency primary storage), SATA III for up to 4 HDDs or SSDs, and SlimSAS for high-density SAS/SATA expansion. This breadth of interface support means you can architect tiered storage — fast NVMe for active project files, SATA or SAS for bulk nearline storage — without adding an HBA card in most configurations.
• RAID 0, 1, 5, and 10: Native RAID support across levels 0, 1, 5, and 10 allows you to configure performance striping, mirroring for redundancy, or parity-based RAID 5 without purchasing a discrete RAID controller. RAID 10 (stripe of mirrors) is the standard configuration for production workstations that need both performance and fault tolerance.
• USB 2.0 Internal Headers: Two USB 2.0 internal connectors are present on-board, useful for front-panel USB connectivity or internal USB dongles (license keys, boot media). Note this is the USB 2.0 count specifically — verify rear I/O for full USB 3.x port inventory per your chassis needs.
• Up to 7680 × 4320 (8K) Display Output: Maximum supported resolution of 7680 × 4320 pixels means the platform is ready for 8K display workflows out of the box — relevant for color grading, broadcast production, or high-resolution CAD environments where pixel density matters. Actual output depends on the discrete GPU installed.

Integration and Compatibility

The ASUS PRO WS W890-SAGE (often searched as ASUS PRO WS W890 SAGE) integrates into standard enterprise and creative-professional workstation motherboard build workflows. It is compatible with the Intel Xeon processor line via the LGA 4710-2 socket — no consumer Core processors. DDR5 SDRAM is required; DDR4 DIMMs are not compatible. SlimSAS storage expansion pairs well with existing SAS storage arrays common in post-production and data-intensive engineering environments. For buyers evaluating the broader ASUS workstation lineup, this board sits in the Pro WS series, which occupies the professional-workstation tier above consumer boards but below multi-socket server platforms. Pair with a compatible NVMe or SAS storage solution for a complete tiered storage deployment. If your build requires RAID 5 across multiple spinning drives, consult your chassis and PSU specifications to ensure adequate power delivery for the drive count this board supports. For workloads requiring parallel GPU compute, verify PCIe slot count and bandwidth allocation against your GPU card requirements before finalizing your workstation component selection.

Frequently Asked Questions

Q: What processors are compatible with the ASUS PRO WS W890-SAGE?

A: The board uses the LGA 4710-2 socket and is compatible with Intel Xeon processors. Consumer Intel Core processors use a different socket and are not compatible.

Q: Does the ASUS PRO WS W890-SAGE support ECC memory?

A: Yes. The board supports ECC DDR5 SDRAM across its 8 DIMM slots in a quad-channel configuration, providing hardware-level single-bit error correction critical for professional and scientific workloads.

Q: What storage interfaces does the ASUS PRO WS W890-SAGE support?

A: The board supports M.2, SATA III, and SlimSAS interfaces, accommodating up to 10 storage devices in total, with up to 4 HDD/SSD devices on SATA III alone.

Q: What RAID levels are natively supported?

A: The board natively supports RAID 0, 1, 5, and 10 without requiring a separate RAID controller card.

Q: Is DDR4 memory compatible with the ASUS PRO WS W890-SAGE?

A: No. The board requires DDR5 SDRAM. DDR4 modules use a different physical and electrical specification and are not compatible with this platform.

Q: What is the maximum display resolution supported?

A: The platform supports a maximum resolution of 7680 × 4320 pixels (8K), subject to the discrete GPU installed in the system.

Jerry Tildsen

The ASUS PRO WS W890-SAGE is the right call when your build center around Intel Xeon and you need ECC DDR5 in a quad-channel configuration — eight DIMM slots give you room to scale memory capacity without sacrificing channel symmetry, which matters when you're running memory-bandwidth-sensitive workloads like large FEA simulations or multi-layer compositing pipelines.

Technical Highlights:

• Quad-Channel DDR5 ECC (8 slots): Four active memory channels with ECC correction means you get both the bandwidth of quad-channel DDR5 and the data-integrity guarantees of ECC — a combination that consumer workstation boards on LGA 1700 simply don't offer at this DIMM slot density.
• 10-Device Storage Capacity (M.2 + SATA III + SlimSAS): The combination of three storage interface types on a single board eliminates the need for an add-in HBA in most tiered-storage configurations — NVMe for scratch/active, SATA or SlimSAS for nearline.
• Native RAID 0/1/5/10: Having RAID 5 natively available means you can protect a spinning-drive array against single-drive failure without purchasing or licensing a discrete RAID controller, simplifying the BOM on cost-sensitive workstation builds.

Deployment Considerations:

• LGA 4710-2 is an Intel Xeon-only socket — confirm your Xeon SKU's TDP against your chassis cooling solution before ordering; this platform is not compatible with any consumer Intel processor line.
• DDR5 SDRAM is required — if your existing memory inventory is DDR4, budget for a full DIMM replacement; there is no backward compatibility between DDR4 and DDR5 slots.

This board is best positioned for a single-socket professional workstation in a creative post-production facility or engineering compute lab where ECC memory integrity, high storage device count, and Intel Xeon compatibility are non-negotiable requirements.
