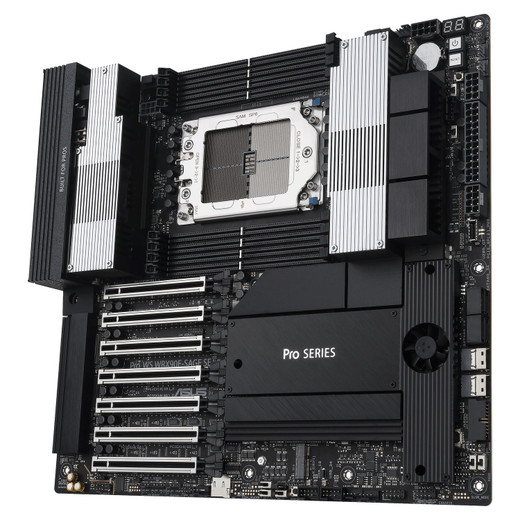

ASUS PRO-WS-WRX90E-SAGE-SE Pro WS WRX90E-SAGE SE CEB Workstation Motherboard AMD Ryzen Threadripper

ASUS PRO-WS-WRX90E-SAGE-SE CEB Workstation Motherboard for Threadripper PRO 7000 WX

Overview

The ASUS PRO-WS-WRX90E-SAGE-SE is a CEB-form-factor workstation motherboard built around AMD's Socket sTR5 platform, designed specifically for Ryzen Threadripper PRO 7000 WX-Series processors. If you're provisioning a high-core-count workstation motherboard for compute-intensive workloads — think real-time multi-stream video analytics, large-scale surveillance storage servers, AI inference at the edge, or high-throughput data processing — this board's I/O density and memory architecture put it in a different class from standard HEDT platforms. Eight DIMM slots across an octa-channel DDR5 memory bus, seven PCIe 5.0 x16 slots, and a 32-stage power delivery system are the headline specs, but the deployment story is about what that means in practice for integrators pushing these platforms into production environments.

Key Features

• Socket sTR5 / Threadripper PRO 7000 WX-Series Support: The sTR5 socket is AMD's current pinnacle workstation platform. Threadripper PRO 7000 WX processors deliver up to 96 cores and 192 threads — meaningful for any workflow where parallelism translates directly to throughput. Paired with the PRO-WS-WRX90E-SAGE-SE, you get the full WRX90 chipset's I/O multiplier without compromise.
• Octa-Channel DDR5 ECC R-DIMM — Up to 2 TB: Eight DIMM slots running in octa-channel configuration with ECC R-DIMM support means two things: first, memory bandwidth scales proportionally with core count (Threadripper PRO workloads are often bandwidth-bound, not compute-bound); second, ECC is non-negotiable for 24/7 production systems where a single bit-flip can corrupt a database record or a surveillance archive index. The 2 TB ceiling gives you room to grow into memory-mapped storage architectures or in-memory analytics pipelines without a board swap.
• Seven PCIe 5.0 x16 Slots: This is the spec that sets the WRX90E apart from anything consumer or mainstream HEDT. Seven full-bandwidth PCIe 5.0 x16 slots mean you can populate GPU compute cards, high-port-count NVMe controllers, capture cards, and 25/100GbE adapters simultaneously — without the bandwidth starvation that comes from bifurcated or shared lanes on smaller platforms. For multi-GPU inferencing or multi-card NVMe arrays, this matters at the architecture level, not just on a spec sheet.
• PCIe 5.0 M.2 Storage: Onboard PCIe 5.0 M.2 delivers the full Gen 5 NVMe bandwidth envelope — critical for workloads writing large sequential streams (video ingest, model checkpointing) where a Gen 4 bottleneck would otherwise force you to an add-in card anyway.
• 10 Gb + 2.5 Gb Dual LAN: Dual onboard NICs — 10GbE and 2.5GbE — mean the system arrives network-ready for high-throughput environments. A managed PoE switch feeding 10GbE to this board handles multi-stream ingest without a separate NIC purchase. The 2.5GbE port covers management or secondary network segmentation cleanly.
• 32-Stage Power Delivery: A 32-phase VRM is sized for sustained all-core loads on 96-core Threadripper PRO SKUs. Inadequate power delivery on high-core-count platforms causes thermal throttling under sustained compute — the 32-stage design here is matched to the platform's worst-case TDP envelope, not a cost-reduced approximation of it.
• RAID 0/1/5/10 Support: Onboard RAID across SATA III, M.2, and SlimSAS interfaces (up to 10 storage devices, 4 HDD positions) lets you configure redundant storage arrays without a dedicated HBA for many deployment scenarios. RAID 5/10 configurations on surveillance or analytics storage workloads provide both redundancy and read performance that a single-drive setup cannot match.
• SlimSAS Connectivity: SlimSAS interfaces enable high-density SAS/SATA expansion — relevant for integrators connecting this board to external JBODs or dense storage enclosures in rack-mount surveillance server builds. This is not a feature you find on consumer or standard HEDT boards.
• USB and Expansion I/O: Onboard USB 2.0 (x2) and USB 3.2 Gen 1 (x1) connectors cover peripheral connectivity for management interfaces, dongles, and legacy peripherals without requiring an add-in card.

Integration and Compatibility

The PRO-WS-WRX90E-SAGE-SE targets integrators building custom high-performance workstation platforms where the processor, memory, and I/O configuration need to be specified to exact workload requirements rather than accepted as a pre-configured OEM system. The WRX90 platform's PCIe lane count and memory bandwidth make it a natural fit for multi-NIC network appliance builds, AI/ML inference servers, and large-scale video analytics nodes where commercial off-the-shelf systems either lack the I/O density or carry unnecessary cost in areas that don't match the workload. No onboard GPU means GPU selection is entirely at the integrator's discretion — a seven-slot PCIe 5.0 board with no integrated graphics is explicitly designed for add-in compute and capture card configurations.

Frequently Asked Questions

Q: What processors are compatible with the PRO-WS-WRX90E-SAGE-SE?

A: The board uses AMD Socket sTR5 and supports AMD Ryzen Threadripper PRO 7000 WX-Series processors. It is not compatible with consumer Threadripper (TRX50) or older TR4/sTRX4 platform processors.

Q: What is the maximum RAM capacity and what memory type does it require?

A: The PRO-WS-WRX90E-SAGE-SE supports up to 2 TB of DDR5 ECC R-DIMM (Registered DIMM) memory across 8 slots in octa-channel configuration. Standard unbuffered or non-ECC consumer DDR5 DIMMs are not supported — this platform requires ECC R-DIMMs.

Q: How many PCIe slots does the PRO-WS-WRX90E-SAGE-SE provide and at what generation?

A: The board provides 7 PCIe 5.0 x16 slots, along with a PCIe 5.0 M.2 slot for NVMe storage. This makes it suitable for multi-GPU, multi-NVMe, or high-density add-in card configurations that would exceed the lane capacity of standard HEDT or consumer platforms.

Q: Does the PRO-WS-WRX90E-SAGE-SE have onboard graphics?

A: No. There is no onboard or integrated GPU on this board. A discrete graphics card is required for display output. This is by design for workstation builds where all PCIe slots are allocated to compute or capture add-in cards.

Q: What storage interfaces does the board support and how many drives can it handle?

A: The board supports M.2 (PCIe 5.0), SATA III, and SlimSAS interfaces. It can accommodate up to 10 storage drives total, with 4 HDD positions. RAID levels 0, 1, 5, and 10 are supported across connected drives.

Q: What networking is included onboard?

A: The PRO-WS-WRX90E-SAGE-SE includes dual onboard LAN: a 10 Gb Ethernet port and a 2.5 Gb Ethernet port. No additional NIC is required for most high-throughput deployment scenarios, though the seven PCIe 5.0 x16 slots allow for further network expansion if needed.

Ted Perry

When we spec out a high-density video analytics node or a multi-stream surveillance ingest server, the platform decision comes down to lane count and memory bandwidth — and the PRO-WS-WRX90E-SAGE-SE answers both with the kind of headroom that lets you build the system once and scale software workloads onto it over a three-to-five year horizon. Seven PCIe 5.0 x16 slots is not marketing language — it means you can populate GPU inference cards, a multi-port 10/25GbE NIC, and a high-density NVMe controller simultaneously without any of them starving for bandwidth.

Technical Highlights:

• Octa-Channel DDR5 ECC R-DIMM to 2 TB: On platforms running concurrent analytics pipelines across dozens of camera streams, memory bandwidth is frequently the first bottleneck you hit. Octa-channel DDR5 across 8 slots eliminates that ceiling, and the ECC R-DIMM requirement is the right call for any 24/7 production build — silent memory errors on a surveillance archive server are not recoverable events.
• 32-Stage VRM: A 32-phase power delivery system is correctly sized for sustained all-core Threadripper PRO 7000 WX loads. Under-specced VRM designs throttle under load; this board is built to sustain the platform's full TDP envelope continuously, which matters in headless server deployments where there's no operator monitoring clock behavior in real time.
• SlimSAS + 10-Drive Storage Capacity: The combination of SlimSAS, SATA III, M.2, and support for up to 10 drives with hardware RAID 0/1/5/10 means this board can anchor a self-contained surveillance storage node — no separate HBA required for many configurations. RAID 5/10 gives you the redundancy posture you need for a system where drive failure cannot mean data loss.

Deployment Considerations:

• CEB form factor is larger than standard ATX — verify your chassis clearance before ordering. Not every workstation tower or 4U chassis accommodates CEB without modification.
• ECC R-DIMMs are significantly more expensive per gigabyte than consumer DDR5. Budget memory cost separately; the 2 TB ceiling is achievable but carries a real procurement cost that surprises teams sourcing this platform for the first time.

The PRO-WS-WRX90E-SAGE-SE is the right platform anchor for integrators building dedicated AI inference servers, multi-stream video analytics appliances, or large-scale surveillance storage nodes where PCIe lane density and memory bandwidth are architectural requirements — not for general-purpose workstation builds where a mainstream HEDT platform covers the workload at lower system cost.
