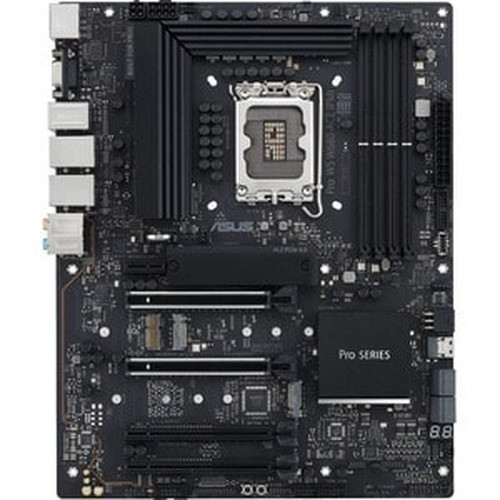

ASUS PROWSW680-ACEIPMI ATX Workstation Motherboard
Overview
The ASUS PROWSW680-ACEIPMI is an ATX workstation motherboard designed for high-performance computing environments. It supports Intel 12th/13th Gen Core processors on the LGA 1700 socket, providing a robust foundation for demanding applications like video processing, data analysis, and simulation tasks common in surveillance system backends or VMS server builds. The dual PCIe 5.0 x16 slots offer significant bandwidth for high-end GPUs or specialized accelerators, while DDR5 ECC memory support ensures data integrity critical for mission-critical operations.
Compatibility
This motherboard is compatible with Intel LGA 1700 socket processors, including Intel® Celeron®, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, and Intel® Pentium® Gold series CPUs. It supports up to 192GB of DDR5 ECC and non-ECC unbuffered memory across its four DIMM slots, enabling substantial memory configurations for memory-intensive workloads. Storage connectivity includes up to four HDDs and three PCIe 4.0 M.2 slots for NVMe SSDs, plus SATA III ports, offering flexible storage options for surveillance footage or large datasets. RAID 0, 1, 5, and 10 are supported for data redundancy and performance.
Installation Notes
The board features dual Intel 2.5 Gb Ethernet ports for high-speed network connectivity, essential for VMS servers handling multiple camera streams. It includes a USB 3.2 Gen 2x2 front panel connector for rapid data transfer to external storage. The SlimSAS connector provides additional high-speed storage interface options. Ensure adequate chassis cooling and power delivery when populating all PCIe slots and memory channels, especially with high-TDP CPUs and multiple GPUs.
