APC Symmetra LX 8KVA Scalable to 8KVA N+1 Tower 220/230/240 or 380/400/415V - SYA8K8I

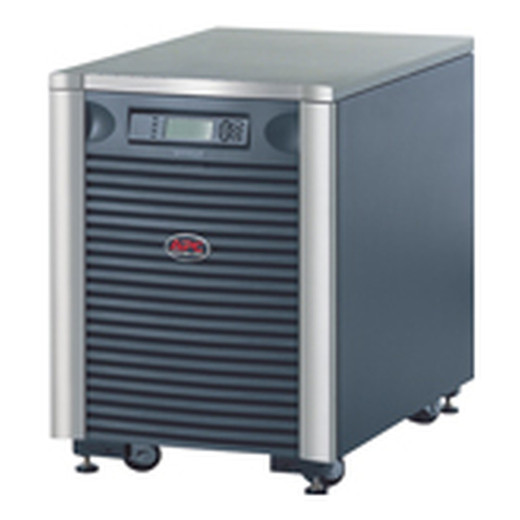

APC by Schneider Electric SYA8K8I Symmetra LX 8kVA N+1 Scalable Tower UPS

Overview

The APC by Schneider Electric SYA8K8I is an 8kVA (5,600W) scalable tower UPS built around an N+1 redundant architecture — the configuration that keeps critical loads running even when one power module fails. Designed for 220/230/240V and 380/400/415V environments, this unit covers the international voltage ranges common in commercial data centers, network closets, and industrial control rooms where a single-phase or three-phase feed may vary by site. If you're sizing UPS infrastructure for a security operations center, server room, or any critical facility where unplanned downtime carries real cost, the SYA8K8I is purpose-built for that scope.

The Symmetra LX line is APC's modular, scalable platform — not a fixed-capacity box. That distinction matters at procurement time: you're not locked into buying more capacity than you need today, and you're not replacing the entire unit when load grows.

Key Features

• 8kVA / 5,600W Output Capacity: The 8kVA output (5,600W real power) covers mid-range server clusters, network switching infrastructure, or multi-camera NVR/storage arrays without headroom concerns. The gap between VA and watts reflects a 0.7 power factor — plan your load calculations against the 5,600W figure, not the VA rating.
• N+1 Redundancy Architecture: The N+1 design means one power module beyond the minimum required is always standing by. If an active module faults, the system transfers load to the standby module without a dropout. For facilities running surveillance recorders, access control panels, or network infrastructure 24/7, this eliminates the single point of failure that a standard UPS presents.
• Scalable to 8kVA: The unit is configurable from a lower starting capacity up to the full 8kVA ceiling, letting you right-size the initial purchase and add capacity as load increases — without replacing the frame.
• Hardwire Output (Hard Wire 3-wire H/N/G): Output is hardwired, not outlet-strip — correct for permanently installed critical infrastructure. This means a licensed electrician handles the load connection, but it also means a clean, code-compliant installation without daisy-chained PDUs hanging off a rear panel.
• Emergency Power Off (EPO): The integrated EPO port lets facility managers wire a remote cutoff — mandatory in many data center and industrial facility codes. A single button press or relay signal shuts down the UPS output immediately, which matters when a cooling failure or fire event requires fast de-energization.
• SmartSlot Interface with AP9619 Pre-Installed: The AP9619 management card ships pre-installed in the single available SmartSlot. This gives you SNMP-based network management, remote monitoring, and integration with APC's PowerChute software out of the box — no additional card purchase required for networked environments.
• RS-232 (DB-9) and Smart-Slot Interface: Serial management via DB-9 is available alongside the SmartSlot, supporting legacy building management systems and serial-based UPS monitoring tools that some industrial and government facilities still require.
• Maintenance-Free Sealed Lead-Acid Batteries (SYBT5): The sealed, suspended-electrolyte battery design is leakproof — relevant for installations in enclosed server rooms or below raised floors where a venting or spill event would be a serious problem. Replacement battery cartridge is the SYBT5, a field-swappable module that keeps service straightforward without requiring a full UPS replacement.
• 0–40°C Operating Range: Standard commercial temperature tolerance — fine for climate-controlled server rooms and network closets. If your installation runs warmer than 40°C (104°F), factor in battery derating; sealed lead-acid chemistry loses capacity and life above that threshold.
• 0–95% Operating Humidity: Wide humidity tolerance means the unit handles the condensation risk in facilities without tight humidity control, though sustained high humidity should still be avoided to protect battery life.
• Operating Altitude to 3,000m (9,843 ft): Relevant for facilities at elevation — high-altitude installations can affect cooling and battery performance. The 3,000m rating covers nearly all commercial building deployments worldwide.

Integration and Compatibility

The pre-installed AP9619 SmartSlot card enables SNMP monitoring and integration with network management systems and building automation platforms. The DB-9 RS-232 port supports serial-based communication for legacy BMS or direct PowerChute connections. For UPS and power protection deployments integrated with physical security infrastructure — including NVR stacks, access control servers, and surveillance network switches — the SmartSlot interface provides the remote shutdown and load-shedding hooks that enterprise power management requires. Pair this unit with a managed PoE network switch on a protected circuit to keep camera feeds and access control online during utility events. Explore the full APC by Schneider Electric power protection catalog for compatible expansion modules and battery cabinets. For sizing guidance, review the UPS selection and sizing guide before committing to a capacity tier.

Frequently Asked Questions

Q: What is the real power output of the SYA8K8I, and how should I size my load?

A: The SYA8K8I delivers 5,600W of real power at a rated 8kVA. Size your connected load against the 5,600W figure. The difference between VA and watts reflects the unit's power factor — overloading the watt rating even if VA headroom exists will cause problems.

Q: What does N+1 redundancy mean in practice for this UPS?

A: N+1 means the system contains one more power module than the minimum needed to carry the full load. If one module fails, the remaining modules absorb the load without any interruption to connected equipment. This eliminates the single point of failure present in conventional UPS designs.

Q: What is the replacement battery cartridge for the SYA8K8I?

A: The SYA8K8I uses the SYBT5 battery cartridge. It is a field-replaceable module — you do not need to replace the entire UPS chassis to service the batteries.

Q: Does the SYA8K8I include a network management card?

A: Yes. The AP9619 SmartSlot card ships pre-installed. It provides SNMP-based remote monitoring and management via the unit's single SmartSlot interface, with no additional card purchase required.

Q: What output voltage ranges does the SYA8K8I support?

A: The SYA8K8I supports 220/230/240V and 380/400/415V output, covering the voltage standards used across Europe, the Middle East, Asia-Pacific, and other international markets. Confirm your local feed voltage before installation.

Q: Is the SYA8K8I suitable for installation in a server room below a raised floor?

A: The sealed, suspended-electrolyte, leakproof battery design makes it appropriate for enclosed environments. However, verify your facility's ventilation meets APC's installation requirements — battery rooms still require adequate airflow even with sealed cells.

James Everett

The SYA8K8I is one of the few tower-format UPS units I'd recommend for a security operations center or multi-rack surveillance infrastructure build where both redundancy and manageability are non-negotiable. The pre-installed AP9619 SmartSlot card is a meaningful inclusion — most deployments I've seen require network-managed UPS, and having that card already seated removes one procurement step and one installation variable.

Technical Highlights:

• N+1 Redundancy: One power module beyond the minimum required runs in standby at all times. In a 24/7 surveillance or access control environment, this means a module fault does not become a facility outage — load transfers without interruption.
• 5,600W Real Power at 8kVA: The 0.7 power factor means real watts are the binding constraint, not the VA rating. A rack loaded with servers, NVRs, and PoE switches drawing 5kW sits comfortably within spec; push past 5,600W and you're in trouble regardless of how much VA headroom shows on the display.
• SYBT5 Field-Replaceable Battery: Battery service without pulling the UPS from service or calling a depot repair — critical for installations where the downtime window for battery replacement is essentially zero.

Deployment Considerations:

• Output is hardwired (Hard Wire 3-wire H/N/G only) — there are no output receptacles on this unit. Plan for a licensed electrician and a downstream PDU or hardwired panel at the load end. This is not a plug-and-play swap for a traditional outlet-based UPS.
• Operating temperature ceiling is 40°C. Sealed lead-acid chemistry degrades faster above that threshold, shortening battery life and reducing available runtime. If your installation space runs warm, factor in battery replacement intervals accordingly.

For a security integrator commissioning a permanent surveillance infrastructure — NVR stacks, managed switch gear, access control servers, and video wall displays all on one protected circuit — the SYA8K8I's combination of N+1 redundancy, pre-installed network management, and field-serviceable batteries makes it a sound fit for that specific scope.
