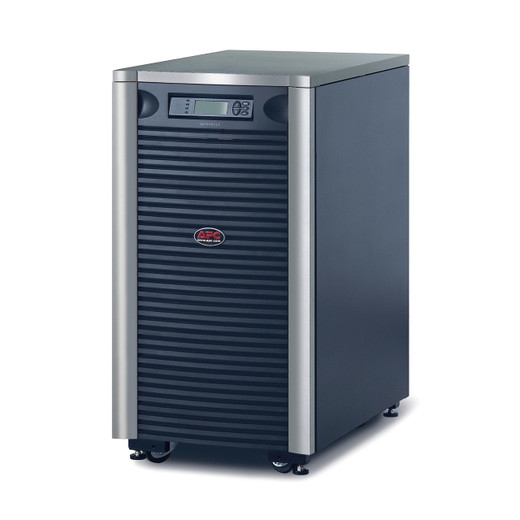

APC Symmetra LX 8KVA Scalable to 16KVA N+1 Tower 220/230/240V or 480/400/415V - SYA8K16I

APC by Schneider Electric SYA8K16I Symmetra LX 8kVA Scalable to 16kVA N+1 Tower UPS

Overview

The APC by Schneider Electric SYA8K16I is a modular, scalable uninterruptible power supply rated at 8 kVA (5,600 W) with a growth path to 16 kVA — purpose-built for mission-critical environments where a single UPS failure cannot take down the load. The Symmetra LX platform is a tower UPS designed around hot-swappable power and battery modules, which means planned maintenance and capacity expansion happen without scheduled downtime. If you're protecting server rooms, network operations centers, or critical security infrastructure that cannot tolerate a maintenance window, the SYA8K16I is worth a close look.

Output is hardwired — no standard outlet strip — which positions this unit squarely in infrastructure deployments rather than workstation or desktop applications. The built-in SmartSlot interface ships pre-populated with an AP9619 network management card, so remote monitoring and management are available out of the box without an additional card purchase.

Key Features

• 8 kVA / 5,600 W Output with Scalability to 16 kVA: Starting at 8 kVA gives you room to grow without replacing the frame — add power modules as your load expands. The 5,600 W real-power rating matters more than the VA figure when sizing for actual server draws; confirm your connected load in watts, not just VA, before ordering.
• N+1 Redundancy Architecture: The Symmetra LX platform is built so one power module can fail and the load continues running uninterrupted. For data centers or security operation centers running 24/7, this eliminates the single point of failure inherent in conventional UPS designs.
• 7.5-Minute Runtime at Full Load, 20.2 Minutes at Half Load: These figures are realistic bridge times — long enough to execute a controlled shutdown or wait out a brief utility interruption, but not a substitute for a generator in extended outage scenarios. Size your generator transfer time against these numbers.
• Hardwire AC Output: All power delivery is via hardwire connections, keeping this unit out of rack-mount PDU configurations and squarely in the permanently-installed infrastructure category. Factor in qualified electrical installation as part of your project scope.
• Emergency Power Off (EPO) Support: The EPO input lets you wire the SYA8K16I into a facility-level emergency cutoff circuit — required in many data center buildouts and enforced by local electrical codes in commercial construction.
• Pre-Installed AP9619 SmartSlot Card: The AP9619 network management card is factory-installed in the single available SmartSlot interface. This enables SNMP, web-based monitoring, and integration with network management platforms without an additional accessory purchase. One SmartSlot total — plan accordingly if you need a different card type.
• Sealed Lead-Acid Battery with Suspended Electrolyte: Maintenance-free and leakproof — the battery chemistry eliminates spill risk and the associated regulatory concerns for enclosed equipment rooms. Replacement cartridge is the SYBT5, a standard APC Symmetra LX consumable.
• Wide Operating Temperature Range (0–40°C): Handles standard commercial data center and telecom room environments. Storage down to -15°C means the unit can sit in a cold warehouse or unheated loading dock before installation without battery damage.
• Multi-Voltage Input Compatibility (220/230/240V or 480/400/415V): Covers both standard single-phase commercial voltages and three-phase distribution configurations, giving this unit applicability across North American and international facility types within one SKU.
• 0–3,000m Operating Altitude: Covers the vast majority of commercial building deployments globally, including high-elevation data centers without derating concerns up to that ceiling.

Integration & Compatibility

The SYA8K16I integrates with APC's EcoStruxure IT and legacy PowerChute network management ecosystem via the pre-installed AP9619 SmartSlot card. The single SmartSlot slot limits you to one management or interface card at a time — if your deployment requires both a relay I/O card and a network card, that is a hard constraint to plan around before purchasing. Battery replacement uses the SYBT5 cartridge, which is a field-replaceable component; confirm local service availability if this unit is destined for a remote site. Hardwire output requires coordination with a licensed electrician for installation and load transfer testing. This unit is not suitable for connecting standard IEC or NEMA outlets directly — an external power distribution unit is required if downstream devices need individual outlet-level connections.

Frequently Asked Questions

Q: What is the real power output of the SYA8K16I, and how does it differ from the VA rating?

A: The SYA8K16I delivers 5,600 W of real power at its 8 kVA rating. VA (volt-amperes) is the apparent power; watts are what your equipment actually consumes. Always size a UPS against your load's wattage, not VA. A server drawing 4,000 W needs a UPS rated above 4,000 W — the VA figure alone is not sufficient for sizing.

Q: Can the SYA8K16I be expanded beyond 8 kVA without replacing the unit?

A: Yes. The Symmetra LX platform is modular and scalable to 16 kVA within the same frame by adding power modules. This is the core design advantage of the Symmetra LX line — capacity grows with your infrastructure without a forklift upgrade.

Q: What is the runtime of the SYA8K16I at full load versus half load?

A: At full load (5,600 W), typical runtime is 7.5 minutes. At half load (approximately 2,800 W), runtime extends to 20.2 minutes. These are bridge times intended for controlled shutdowns or short utility interruptions — a generator is recommended for extended outage coverage.

Q: Does the SYA8K16I have standard AC outlets, or is output hardwired only?

A: Output is hardwired only — there are no standard IEC or NEMA outlet connections on this unit. If downstream devices require individual outlets, you will need to add an external power distribution unit to the downstream side of the hardwire connection.

Q: What replacement battery cartridge does the SYA8K16I use?

A: The SYA8K16I uses the SYBT5 battery cartridge. The sealed lead-acid chemistry with suspended electrolyte is maintenance-free and leakproof, making it suitable for enclosed equipment rooms.

Q: Does the SYA8K16I support Emergency Power Off (EPO)?

A: Yes. The SYA8K16I includes an EPO input, allowing integration with facility-level emergency shutdown circuits. This is commonly required by data center design standards and local electrical codes in commercial construction.

Jerry Tildsen

The SYA8K16I is the unit I recommend when a client's power protection conversation starts with 'we cannot have a maintenance window.' The N+1 redundant module architecture is the specific reason — unlike a conventional monolithic UPS, you can pull a failed power module while the load runs, which is the difference between a 2 a.m. phone call and a routine morning swap. At 8 kVA starting capacity with a direct path to 16 kVA, this unit fits the mid-tier server room or security operations center that expects to grow but doesn't want to re-engineer the power plant every 18 months.

Technical Highlights:

• 5,600 W Real Power Output: The watt figure, not the 8 kVA VA rating, is what governs your sizing math. At 5,600 W you can carry a fully loaded 4U server chassis with room left for network gear — confirm your connected load in watts before finalizing.
• 7.5-Min Full-Load / 20.2-Min Half-Load Runtime: These are honest bridge numbers from the spec sheet, not marketing-padded figures. Plan your generator transfer time against 7.5 minutes at peak draw; if your generator needs 90 seconds to stabilize and transfer, you have margin. If it needs 10 minutes, add battery expansion modules.
• Pre-Installed AP9619 SmartSlot Card: Factory-installed network management means you're not buying a $300 add-on card separately. SNMP integration with your NMS is live at first boot — a detail that simplifies the commissioning checklist on day one.

Deployment Considerations:

• Output is hardwired-only — coordinate licensed electrical installation before the unit arrives on site. There are no plug-in outlets; an external PDU is required if individual outlet-level connections are needed downstream.
• The single SmartSlot is already occupied by the AP9619. If your deployment requires a relay I/O card or a second management interface, you will need to swap out the pre-installed card — you cannot add a second card.

The SYA8K16I is the right call for a permanent infrastructure installation — a mid-size data center, a hardened security operations center, or a building management system room — where the combination of scalable capacity, N+1 redundancy, and hardwired distribution fits a professionally engineered power plant rather than a plug-and-play rack deployment.
