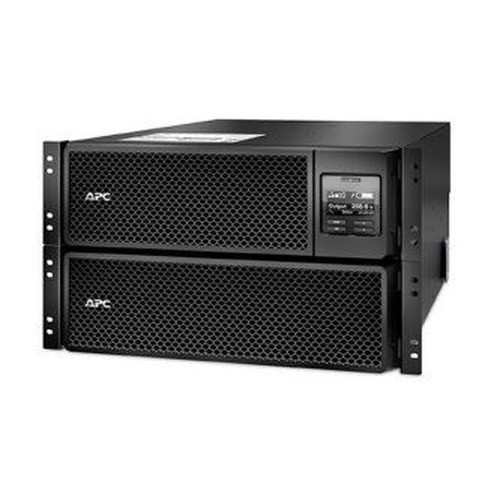

APC Smart-ups On-line 8KVA/8KW Rackmount 6U 208V 4X L6-20R+2X L6-30R NEMA OU - SRT8KRMXLT

APC by Schneider Electric SRT8KRMXLT 8kVA Online Rackmount UPS

Overview

The APC by Schneider Electric SRT8KRMXLT is an 8kVA/8kW double-conversion online UPS engineered for rackmount deployments where clean, uninterrupted power is non-negotiable. Occupying 6U of rack space and operating at 208V output, it fits squarely in the middle of the power protection spectrum for mid-sized server rooms, surveillance infrastructure, and network operations centers that can't tolerate the microsecond transfer times of line-interactive designs. Double-conversion means utility power never directly feeds your load — the equipment runs entirely on inverter output 100% of the time, so grid noise, sags, and surges never reach your equipment.

The SRT8KRMXLT accommodates a wide input voltage window (100–275V) and an input frequency range of 40–70 Hz, which matters in facilities with generator backup: when a diesel generator spins up and stabilizes, frequency can drift well outside the 47–53 Hz range a line-interactive UPS will tolerate. This unit stays online through that transition rather than switching to battery.

Key Features

• Double-Conversion (Online) Topology: The load runs on inverter-derived power continuously — no transfer switch, no 4–8ms gap when utility fails. For servers, storage arrays, and NVRs with tight power tolerance, this is the topology that eliminates the class of problems line-interactive units leave open.
• 8kVA / 8,000W Output Capacity: Sized for mid-density racks. At 8kW true output power (unity power factor), there's no derate penalty — the kVA and kW ratings match, so you can load it to its nameplate without mental accounting for power factor correction.
• Wide Input Voltage Window (100–275V): Accepts everything from low-voltage brownout conditions down to 100V to high-side swings up to 275V before switching to battery. In facilities with variable utility quality or generator integration, this range reduces unnecessary battery cycling and extends battery service life.
• Input Frequency Tolerance (40–70 Hz): Operates cleanly across a 30 Hz band around nominal — unusually wide for a commercial online UPS. Generator startup drift and utility instability won't force a battery transfer during the exact moment your critical load needs stability.
• Pure Sine Wave Output: Inverter output is true sine wave, not stepped approximation. Active PFC power supplies in modern servers, storage controllers, and telecommunications gear require sine wave input to operate within spec. Quasi-sine or simulated sine-wave inverters cause these supplies to run hot or trip protection.
• 208V Output with L6-20R and L6-30R Receptacles: Four L6-20R (20A twist-lock) plus two L6-30R (30A twist-lock) outlets cover a mixed load profile — standard 208V rack PDUs on the 20A circuits, higher-draw equipment or sub-panels on the 30A circuits. No adapters or rewiring needed for standard data-center receptacles.
• Low Input THD (2%): Total harmonic distortion back onto the utility feed is just 2% — well below the 5% threshold that causes problems on shared electrical panels. This matters in multi-tenant facilities or buildings with sensitive lab or medical equipment on the same electrical distribution.
• Web-Based Management: Remote monitoring and configuration via browser-accessible interface means you don't need physical access to check load percentage, battery state, or runtime estimates. Pair it with your network infrastructure for out-of-band power management.
• Auto-Restart: After a utility restoration following a full battery discharge, the unit restarts automatically and brings the load back online without requiring a technician on-site. Critical for remote or after-hours deployments.
• 480J Surge Energy Rating: Handles transient energy events up to 480 joules at the input — relevant for facilities with variable utility quality or inadequate upstream surge suppression.
• 3:1 Crest Factor Tolerance: Handles loads with crest factors up to 3:1 without clipping or waveform distortion. Non-linear loads like switching power supplies routinely present crest factors of 2:1 to 3:1 — a UPS that can't handle this degrades output quality under real data-center loading.
• Audible Alarms + 55 dB Operational Noise: Alarm notification is built in for fault and battery conditions. At 55 dB operational noise, this unit is appropriate for equipment rooms but is audible in open office adjacencies — factor room acoustics into the siting decision.

Integration & Compatibility

The SRT8KRMXLT is designed for integration into managed power environments. Web-based management supports remote load and battery monitoring without requiring a dedicated management card purchase for basic IP-based access. The pure sine wave output is compatible with all active-PFC server power supplies, network gear, and network video recorders — no compatibility screening required for modern equipment. The 208V output voltage and NEMA L6-series receptacle format align with standard North American data-center and IDF/MDF room wiring. For sites using UPS management software or DCIM platforms, the web interface provides the access point for integration without requiring proprietary hardware add-ons.

If your deployment uses a mix of 120V and 208V equipment, note that the SRT8KRMXLT outputs 208V only — step-down transformers or a separate 120V UPS are required for 120V loads. Plan your receptacle requirements against the four L6-20R and two L6-30R outlets before ordering; a downstream rack PDU can distribute a single 30A circuit to multiple 20A loads if needed.

Frequently Asked Questions

Q: What is the output voltage of the SRT8KRMXLT, and is it compatible with standard data-center receptacles?

A: The SRT8KRMXLT outputs 208V–240V via four NEMA L6-20R (20A) and two NEMA L6-30R (30A) twist-lock receptacles — the standard format for 208V North American data-center and IDF room power distribution. Standard rack PDUs designed for L6-20P input plug directly in without adapters.

Q: Does the SRT8KRMXLT use double-conversion (online) or line-interactive topology?

A: It uses true double-conversion (online) topology. The load runs entirely on inverter-derived power at all times — there is no transfer time when utility power fails. This distinguishes it from line-interactive UPS units, which have a 2–8ms transfer gap that can disrupt sensitive equipment.

Q: What input voltage and frequency range does the SRT8KRMXLT accept?

A: The unit accepts input voltages from 100V to 275V and input frequencies from 40Hz to 70Hz. This wide range allows operation through generator startup frequency drift and significant utility voltage sags without switching to battery unnecessarily.

Q: Will the SRT8KRMXLT work with active-PFC server power supplies?

A: Yes. The inverter produces a true sine wave output, which is the required waveform for active-PFC power supplies used in modern servers, storage controllers, and network equipment. Quasi-sine or stepped-wave inverters can cause active-PFC supplies to run outside spec or trigger over-temperature protection.

Q: What does the 2% input THD rating mean for my electrical infrastructure?

A: Input THD of 2% means the UPS feeds very little harmonic distortion back onto your building's electrical distribution. This is important in shared facilities where high-THD equipment can interfere with other loads on the same panel — 2% is well below the 5% level that typically causes downstream problems.

Q: How loud is the SRT8KRMXLT in operation?

A: The unit produces approximately 55 dB of operational noise. This is standard for a UPS of this capacity and appropriate for dedicated equipment rooms, but it is audible in open office or light-industrial environments — factor room acoustics and proximity to occupied spaces into your installation planning.

Ted Perry

The SRT8KRMXLT is the unit I recommend when an integrator comes to me with a mid-density rack deployment that has seen generator-related transfer events knock equipment offline. That 40–70 Hz input frequency tolerance is the spec that settles it — most online UPS units tolerate a much narrower band, so when the generator spins up and frequency wanders during stabilization, a narrower-tolerance unit switches to battery right when the load is most vulnerable. This one stays online through that window.

Technical Highlights:

• Double-Conversion Topology: Zero transfer time on utility failure — the inverter is always driving the load. For NVR arrays or server clusters with active-PFC supplies, this eliminates the class of brief-outage-induced reboots that line-interactive units can't prevent.
• 2% Input THD: With 8kW of load capacity, a high-THD UPS at this size can measurably affect neighboring circuits on a shared panel. At 2%, this unit is clean enough for facilities with shared medical, lab, or precision instrumentation on the same distribution bus.
• 3:1 Crest Factor Handling: Real data-center loads — switching power supplies, VFDs, UPS-fed PDUs — regularly present 2.5:1 to 3:1 crest factors. A UPS that clips at 1.5:1 will distort its own output waveform under these conditions. The SRT8KRMXLT handles the real load profile without waveform degradation.

Deployment Considerations:

• The L6-30R outlets are the right connection point for a downstream managed rack PDU distributing 208V to multiple L6-20R loads — two 30A circuits give you meaningful headroom for high-density rows. Verify your PDU's L6-30P input plug before ordering.
• At 55 dB operational noise, this is not a silent unit — place it in a dedicated equipment room or enclosed rack cabinet if it's within earshot of occupied workspace. The audible alarm adds to that profile during fault conditions.

This unit is specifically well-suited for surveillance and security infrastructure deployments — NVR clusters, access control head-end equipment, and network core gear in facilities where generator backup is part of the power continuity plan and clean power delivery to active-PFC loads is the baseline requirement.
