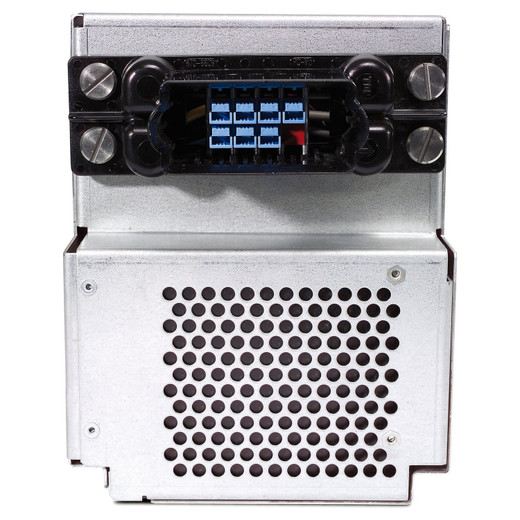

APC Symmetra LX 8KVA N+1 Tower Frame 20 - SYAF8KT

APC by Schneider Electric SYAF8KT Symmetra LX 8KVA N+1 Tower UPS Frame

Overview

The SYAF8KT is APC's Symmetra LX 8KVA scalable power frame in a tower form factor, designed for facilities that need continuous, on-line double-conversion power protection with built-in N+1 redundancy architecture. This is an external power array cabinet — not a standalone UPS — meaning it functions as the frame into which Symmetra LX power, intelligence, and battery modules are installed. If you're architecting power protection for a security head-end, a mid-sized server room, or a network operations center where a single-point power failure isn't acceptable, the modular Symmetra LX platform is worth evaluating carefully. Explore the broader APC by Schneider Electric power protection lineup to understand where this frame sits within the family.

Key Features

• On-Line Double-Conversion Topology: Unlike line-interactive or standby UPS designs that switch to battery only during an outage, on-line double-conversion continuously regenerates clean AC power from the DC bus. Your connected loads never see raw utility power — transients, sags, surges, and frequency irregularities are all isolated. For sensitive network equipment, this matters: line-interactive designs have a transfer time measurable in milliseconds; on-line designs have zero transfer time.
• 8000 VA Power Capacity: The 8KVA frame supports substantial critical load — enough headroom for a fully populated rack of network switches, NVRs, and security servers without running at the thermal edge. Sizing UPS capacity at 60–80% of nameplate is standard practice; at 8KVA, that gives you a practical working envelope of roughly 4,800–6,400W of actual load, depending on power factor.
• N+1 Redundant Architecture: The Symmetra LX platform's modular power module design means the frame can carry one more power module than the load strictly requires. If a power module fails during operation, the remaining modules absorb the load without a service interruption. This is the spec that separates the Symmetra LX from conventional rack UPS units — field-replaceable hot-swap modules mean maintenance without downtime.
• AC 208/240V Hardwire Input (2PH+N+G): The SYAF8KT connects via a hardwired 4-wire two-phase input — no plug, no outlet, no standard IEC connector. This is a facilities-infrastructure installation requiring licensed electrical work and a dedicated circuit. Plan for this in your deployment timeline; it's not a plug-and-play installation. The hardwire connection also means a stable, high-current feed suited to the frame's capacity.
• Multi-Voltage Output — AC 120/208/240V: The hardwire output at 1x 4-wire (2PH+N+G) supports loads at 120V, 208V, or 240V, giving downstream distribution flexibility. In a mixed environment — servers on 208V, some legacy 120V gear — this output configuration can feed a downstream PDU that handles the final distribution split.
• 47–63 Hz Output Frequency Range: The frame regenerates output frequency within the 47–63 Hz band, and accepts input within 45–65 Hz. This tolerance means the SYAF8KT can operate correctly across utility environments that experience frequency drift — relevant in international deployments or in facilities near heavy industrial loads that stress the local grid.
• LCD Display: The integrated LCD provides local status visibility — load, input/output voltage, and alarm conditions — without requiring a laptop or network connection to assess system health. For a security operations center or server room where someone does a daily walkthrough, this is the practical first check before escalating to network management.
• Tower Form Factor — External Power Array Cabinet: The tower enclosure positions this as a floor-standing installation adjacent to racks or in a dedicated UPS alcove, rather than consuming rack units. For facilities where rack space is at a premium or the UPS is co-located with non-rack infrastructure, the tower form factor offers physical deployment flexibility. Review power protection solutions if rack-mount form factor is a hard requirement.

Integration and Compatibility

The SYAF8KT is the frame component of the Symmetra LX modular system. Actual UPS functionality requires Symmetra LX power modules, intelligence modules, and battery modules to be installed — the frame alone does not provide power conditioning or backup. Consult APC's Symmetra LX configuration documentation to verify which modules are compatible with the SYAF8KT frame and to correctly size your power and battery module count for your specific load and runtime requirements.

The hardwire input and output connections require coordination with your electrical contractor and building facilities team. The 208/240V two-phase input is a dedicated-circuit installation — verify panel capacity and circuit breaker sizing before deployment. For facilities integrating this into a broader network infrastructure or security head-end power scheme, confirm downstream PDU compatibility with the hardwire output configuration.

The on-line double-conversion design is fully compatible with sensitive electronic loads including network switches, NVRs, IP camera systems, and server infrastructure. The clean sine-wave output is safe for any load that would otherwise require a pure sine wave UPS — active PFC power supplies included. If you're evaluating this for a physical security installation, pair it with an appropriately rated power distribution unit to break out the single hardwire output to individual equipment feeds.

Frequently Asked Questions

Q: Is the SYAF8KT a complete, standalone UPS or does it require additional modules?

A: The SYAF8KT is the tower frame (external power array cabinet) for the Symmetra LX modular platform. It requires separately purchased Symmetra LX power modules, intelligence modules, and battery modules to function as a UPS. The frame itself does not provide power conditioning or backup on its own.

Q: What input power does the SYAF8KT require?

A: The SYAF8KT requires a hardwired 4-wire two-phase connection (2PH+N+G) at AC 208/240V. This is not a plug-in installation — it requires a dedicated circuit and licensed electrical work. Input frequency tolerance is 45–65 Hz.

Q: What output voltage options does the SYAF8KT support?

A: The SYAF8KT provides a hardwire 4-wire output (2PH+N+G) at AC 120/208/240V within the 47–63 Hz range, supporting mixed-voltage downstream loads when paired with an appropriate PDU.

Q: What does the N+1 in the SYAF8KT designation mean for my installation?

A: N+1 refers to the Symmetra LX platform's redundant power module architecture — the system is configured with one more power module than the load requires. If any single power module fails, the remaining modules sustain the load without interruption, enabling hot-swap replacement without downtime.

Q: Is the SYAF8KT suitable for a security head-end or NVR installation?

A: Yes, provided the installation meets the hardwire electrical requirements. The on-line double-conversion topology delivers clean, zero-transfer-time power protection suited to NVRs, IP cameras, network switches, and servers. Size your power and battery modules appropriately for your actual load and runtime target.

Q: Does the SYAF8KT have a display for monitoring status?

A: Yes. The SYAF8KT includes an integrated LCD display for local monitoring of system status, load, and alarm conditions without requiring a network connection or software access.

Marty Allison

The SYAF8KT is a frame purchase, not a UPS purchase — and that distinction trips up a lot of first-time Symmetra LX deployments. What you're buying is the 8KVA-capacity tower enclosure and backplane for the modular Symmetra LX system; the actual power conditioning, intelligence, and battery capacity come from separately sourced modules. Get the module configuration wrong and you've got a frame sitting on the floor doing nothing. Get it right and you have one of the more maintainable on-line double-conversion platforms in its class.

Technical Highlights:

• On-Line Double-Conversion: Zero transfer time to battery — the load never touches raw utility power. For NVR infrastructure or security servers where a 20ms switchover causes a reboot, this topology is the correct call. Line-interactive does not offer equivalent protection.
• 8000 VA Frame Capacity: At the standard 60–80% loading practice, you're looking at a practical working envelope of roughly 4,800–6,400W. That's meaningful headroom for a fully populated security head-end rack before you start stressing the frame.
• Hardwire 208/240V Input: The 4-wire (2PH+N+G) hardwire connection is not optional infrastructure — it's the only input the SYAF8KT supports. Budget for a licensed electrician and a dedicated panel circuit before the equipment arrives on site.

Deployment Considerations:

• The SYAF8KT tower form factor works well in a dedicated UPS alcove or alongside floor-standing rack cabinets — confirm your floor space and weight capacity before delivery, since a fully populated Symmetra LX frame with battery modules is substantially heavier than the frame alone.
• Watch the module compatibility list closely: not all Symmetra LX power and battery modules are cross-compatible across frame generations. Verify module part numbers against APC's Symmetra LX compatibility matrix before ordering to avoid a mismatched build.

The SYAF8KT is the right starting point for a security operations center or mid-sized server room where the maintenance model requires hot-swap power module replacement without scheduling a maintenance window — the N+1 redundancy and modular architecture are built exactly for that operational pattern.
