Janam Android 11 (Gms) 2D Imager Numeric - XM75-BNKJNLNC00

Janam XM75-BNKJNLNC00 Android 11 Mobile Computer with 2D Imager

Overview

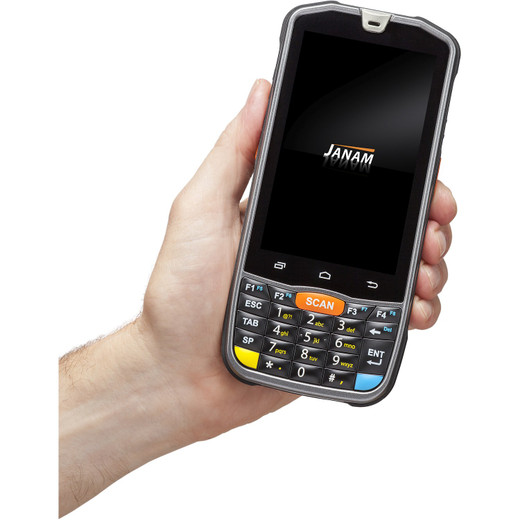

The Janam XM75-BNKJNLNC00 is a rugged Android 11 mobile computer built around a Honeywell 2D imager and 24-key numeric keypad. Deploy this device in dock operations, warehouse cycle counts, receiving verification, and field service route scanning where barcode capture and numeric data entry speed outweigh QWERTY flexibility. The numeric-first hardware button layout cuts task completion time and eliminates virtual-keyboard fumbling in high-throughput environments. IP67 rating (dust-tight, water submersion to 1m for 30min) and 1.5m drop testing per MIL-STD-810G mean the device survives dock handling, rain exposure, and concrete impacts without protective cases.

Connectivity and Platform

Android 11 GMS (Google Mobile Services) unlocks Play Store applications and standard security patches, reducing custom development for warehouse management systems. 802.11a/b/g/n/ac with 802.11ax (Wi-Fi 6) readiness future-proofs your investment if your access point infrastructure migrates to newer standards. Dual-band operation supports both legacy and modern wireless infrastructure. Bluetooth 5.1 Class I (100m range) handles peripheral pairing (printers, scales, readers) across warehouse floors. EDGE/GPRS/GSM and LTE FDD/TDD radio bands (B1/2/3/5/7/8/17/20 FDD; B40/41 TDD) enable WWAN fallback for mobile operations beyond WiFi coverage.

Imaging and Input Capability

The integrated Honeywell N3601SR 2D imager reads standard 1D/2D barcode formats (Code 128, UPC, QR, Data Matrix, PDF417) at typical warehouse scan distances (3–10 inches for standard labels, 15+ inches for larger codes). NFC support (ISO14443A/B, ISO15693, MIFARE, FeliCA, NFC Types 1–5) extends data capture to asset tags and credential verification. The 8MP rear-facing camera with LED flash and autofocus handles photographic documentation (damage assessment, shipment verification). The 4.3" WVGA touchscreen (480×800 pixels) with Corning Gorilla Glass 3 displays warehouse apps; capacitive input allows gloved operation with soft-touch stylus if needed.

Power and Storage

4200mAh Li-ion battery sustains a full shift; real-world run-time depends on screen brightness, radio duty cycle, and scanning frequency—typical warehouse day runs 10–14 hours. 3GB RAM with 32GB internal storage plus user-accessible microSD slot (up to 512GB ExFAT support) handles offline barcode databases and image caching for high-volume scanning operations. Temperature range (-20° to 60°C operating; -25° to 70°C storage) covers dock freezers and outdoor staging areas.
