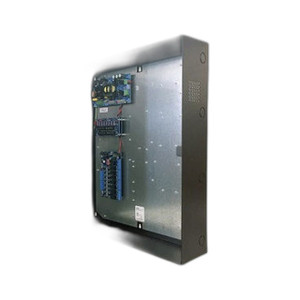

Altronix T2VK7F8 8-Door Access Control Integration Kit
Overview
The Altronix T2VK7F8 is a bundled access control platform designed to handle eight controlled doors using a modular component architecture. Rather than sourcing individual controllers, relay cards, and power modules separately, this kit consolidates the essential infrastructure into one coordinated system—reducing procurement complexity and installation lead time for security integrators deploying multi-door access at office buildings, secure facilities, or campus perimeters. The T2VK7F8 combines the Trove2V2 controller (access logic and credential validation), eFlow104NB reader interface (wiegand input), ACM8 relay output module (door strike and exit control), VR6 supervised relay expansion, and PDS8 power distribution subsystem.
Key Features
- Eight-Door Native Capacity: The kit is configured to manage up to eight access-controlled doors under a single Trove2V2 controller, eliminating the need to chain multiple systems or manage separate databases for a mid-sized security zone. This matters because consolidated management reduces credential synchronization failures and simplifies audit logging.
- Trove2V2 Controller: Handles access logic, credential validation (prox, magnetic stripe, or smart card via the eFlow104NB interface), and event recording on-board. Local processing means the system operates standalone without network dependency—useful for critical access points or remote deployments where WAN connectivity is intermittent or unavailable.
- eFlow104NB Reader Interface Module: Accepts dual wiegand inputs from standard credential readers, with built-in noise filtering to handle older or marginal reader installations. Protocol-agnostic design means you can mix reader types (legacy and current-generation) without hardware substitution during commissioning.
- ACM8 Access Control Module: Eight-channel relay output card with supervised relay circuits for door strikes and request-to-exit devices. Supervised relays detect relay coil failures or tampering—critical in high-security deployments where a stuck relay or cut wire could silently fail the access control function.
- VR6 Supervised Relay Module: Auxiliary relay expansion for additional switching capacity beyond the eight channels in the ACM8. Useful if you need to control auxiliary equipment (gate operators, alarm silencers, badge printers) alongside door locks—expands the kit's scope without requiring a second T2VK7F8.
- PDS8 Power Distribution Subsystem: Provides eight regulated, individually supervised power outputs for locks, readers, and auxiliary gear. Supervision means the system detects short circuits or power failures on each circuit independently, alerting you to hardware faults before a door becomes inoperable. Each channel supports different voltage and current requirements, accommodating both 12VDC and 24VDC devices from a single supply.
- Battery Backup Integration: Framework built-in to support UPS modules for uninterruptible power to critical locks and readers during mains failure. Depends on adding external battery capacity, but the architecture is ready—meaning installation time is minimized when backup power is added later.
- Field-Configurable Architecture: Reader types, lock drive modes (energize-to-lock vs. energize-to-unlock), and supervision parameters are configured on-site without firmware updates or controller reprogramming. This flexibility reduces commissioning time when installations deviate from standard configurations.
Integration and Compatibility
The T2VK7F8 is engineered around industry-standard wiegand protocol and supervised relay switching, making it compatible with common electromagnetic locks, electric strikes, and exit devices from multiple manufacturers. The eFlow104NB accepts standard credential readers (HID VertX and others) without modification. The system supports both local credential validation (Trove2V2 on-board databases hold up to thousands of cardholders) and networked access policies via standard integration protocols—enabling deployment in isolated security zones or integrated with enterprise access management platforms.
Scaling beyond eight doors is straightforward: add additional T2VK7F8 kits or supplemental ACM8 and VR6 modules, and the installation maintains consistent configuration practices across the facility. This modular approach avoids the need to switch to a completely different access control architecture as the deployment grows.
Typical Deployment Model
This kit is sized for commercial and industrial multi-door zones—a building wing, secure enclosure, or campus perimeter where eight doors represent a logical access boundary. The bundled component set eliminates sourcing delays and reduces the risk of incompatible or obsolete modules. Integrators typically deploy one T2VK7F8 per security zone, then connect zones via network gateways for centralized credential management and reporting. For smaller installations (one to four doors), consider whether a single-door or quad-door controller better matches your scope—the T2VK7F8 is economical at full eight-door capacity but overkill if you only need two doors.
Frequently Asked Questions
Q: Does the Altronix T2VK7F8 require network connectivity to operate?
A: No. The Trove2V2 controller validates credentials locally using on-board databases, so the system functions standalone. Network connection is optional and required only if you want centralized credential management or remote event monitoring across multiple access zones.
Q: Can I mix different reader types (prox, smart card, magnetic stripe) on the same T2VK7F8?
A: Yes. The eFlow104NB dual wiegand interface is protocol-agnostic. You can connect two different reader types to the same module, allowing hybrid credential systems without hardware changes.
Q: What happens if a door lock loses power—does it unlock or stay locked?
A: That depends on your hardware configuration. Electromagnetic locks default to fail-secure (locked) when power is lost; electric strikes default to fail-safe (unlocked). The T2VK7F8 supports both via field-configurable lock drive modes. Your installer will set this based on your facility's security policy.
Q: Do I need to add a separate power supply, or is one included?
A: The PDS8 power distribution module is included in the kit, but it requires connection to an external 12VDC or 24VDC supply (not supplied). Confirm your available DC power infrastructure during planning—this is not a mains-powered unit.
Q: Is the T2VK7F8 suitable for outdoor door control?
A: The T2VK7F8 itself is an indoor enclosure-mounted system. Readers and locks can be outdoor-rated, but the controller cabinet must be protected from direct weather. Install the T2VK7F8 in a sheltered location or weatherproof enclosure if deploying outdoor access control.
Q: Can I expand to more than eight doors later?
A: Yes. Add a second T2VK7F8 kit for an additional eight doors, or supplement with standalone ACM8 and VR6 modules. The modular design accommodates scaling without replacing the entire system.
Jerry TildsenPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I evaluated the Altronix T2VK7F8 during architecture planning for a 150,000 sq. ft. mixed-use facility requiring eight controlled access points across two security zones. The kit's component selection reflects pragmatic design: the PDS8 power distribution subsystem with individual supervised circuits means you catch a shorted lock coil or severed reader wire immediately—not after the lock fails to respond and your security team is scrambling at 2 a.m. The Trove2V2 controller's local validation capability was critical for this deployment because two of the eight doors serve facilities with unreliable WAN links during peak hours.
Technical Highlights:
- Supervised Relay Circuits (ACM8): Each of eight relay outputs monitors coil continuity and feedback—detects both stuck relays and cut wires before a door becomes inaccessible. In facilities where access control failures cascade into safety or operational incidents, this supervision is non-negotiable.
- Individual Power Circuit Monitoring (PDS8): Eight independent, supervised outputs allow mixed 12VDC and 24VDC loads from a single supply. A short on one circuit doesn't disable the others—critical in deployments where you can't afford lock cascade failures.
- Dual Wiegand Reader Interface: The eFlow104NB's dual-input design and protocol-agnostic handling means legacy readers coexist with new hardware without replacement. Mattered here because one entrance still used a 15-year-old HID reader that couldn't be retired until badge stock was refreshed.
Deployment Considerations:
- The T2VK7F8 is sized for eight doors operating as a unified zone—don't force it to manage a mixed-security perimeter (e.g., four high-security doors and four warehouse receiving doors) using the same credential database. Split into two kits and manage them separately, then link via gateway if you need cross-zone reporting.
- External DC power supply is not included—confirm your facility has 12VDC or 24VDC infrastructure rated for the lock and reader loads before purchasing. A miscalculated power budget leads to nuisance dropouts during peak access periods.
- The PDS8's individual circuit supervision requires supervised wiring (Class 2 or better) between the power module and each lock—standard practice, but add labor time to the installation estimate if your facility has aging conduit or loose terminations.
Position the T2VK7F8 for mid-scale commercial and industrial multi-door deployments where you need supervised, modular infrastructure and can't rely on persistent network connectivity. For a single secure doorway or a fully networked enterprise access control platform, look elsewhere. But for a building wing, secure facility, or campus zone where eight doors define a logical security boundary and you want both local resilience and future scaling flexibility, the T2VK7F8's modular architecture and supervised power/relay design earn the engineering overhead.
