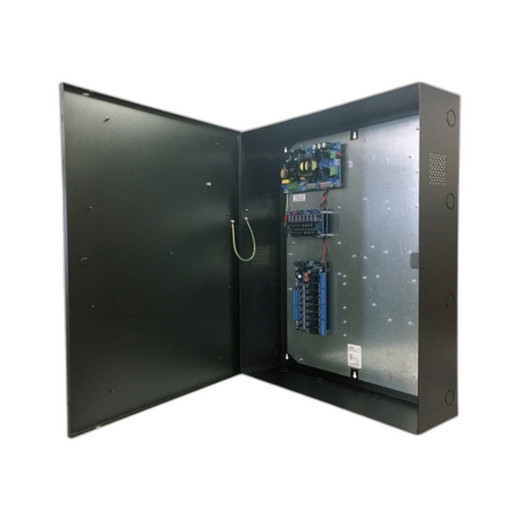

Altronix T2AMK7F8 8-Door Access Control and Power Integration Kit

Overview

The Altronix T2AMK7F8 is a purpose-built integration kit designed for security installers and integrators deploying multi-door access control systems with coordinated power management. This kit bundles the essential components needed to implement an 8-door access control installation: the Trove2AM2 access control platform, eFlow104NB network interface module, ACM8 access control module, VR6 voltage regulator, and PDS8 power distribution system. The T2AMK7F8 eliminates component sourcing friction and ensures compatibility across all integrated subsystems, making it ideal for standardized deployments in commercial facilities, multi-tenant buildings, and enterprise campuses.

Key Features

• 8-Door Capacity: ACM8 module provides direct control and supervision for up to 8 access points in a single integrated platform
• Trove2AM2 Core Platform: Unified access control management engine supporting credential reading, door state monitoring, and event logging
• Network Integration: eFlow104NB network interface enables IP-based communication and remote management without dedicated serial infrastructure
• Voltage Regulation: VR6 provides stable output voltage regulation across distributed door locks and readers, reducing voltage drop issues in extended runs
• Power Distribution: PDS8 coordinates power delivery across 8 circuits with individual output monitoring and control
• Integrated Supervision: All components work together to provide continuous system health monitoring, alert notification, and fault diagnostics
• Scalability-Ready: Architecture supports expansion via additional control modules and network-attached devices
• Installer-Friendly: Pre-configured kit reduces commissioning time and documentation complexity compared to sourcing components individually

Integration and Compatibility

The T2AMK7F8 kit is engineered for seamless interoperability between Altronix access control hardware and AMAG platform integration. The Trove2AM2 access control engine communicates with the eFlow104NB over network protocols, eliminating the need for point-to-point serial cabling in distributed installations. The ACM8 door control module receives supervision data and lock command signals from Trove2AM2, while VR6 and PDS8 manage power conditioning and distribution. This architectural design ensures that voltage, current, and signal integrity are maintained across all 8 doors without cross-talk or ground loops. Integrators can deploy the kit in campus environments, retail chains, or office complexes where consistent access control behavior is required across multiple physical locations.

Package Contents

The Altronix T2AMK7F8 kit includes all primary control and power components required for 8-door installation:

• Trove2AM2 access control management platform
• eFlow104NB network interface module
• ACM8 8-door access control module
• VR6 voltage regulator
• PDS8 power distribution system

Jerry Tildsen

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

I evaluated the Altronix T2AMK7F8 during a multi-site deployment for a retail customer requiring standardized access control across 12 locations. The integrated kit approach significantly reduced logistics overhead and ensured that all subsystems arrived with matching firmware versions and pre-verified compatibility. Rather than sourcing five separate SKUs and validating interconnections, the customer received a single, tested package ready for installation. This matters in high-volume rollouts where consistency directly impacts project timelines and support burden.

Technical Highlights:

• 8-Door Module Density: ACM8 delivers control and supervision for 8 access points in a compact form factor, reducing panel real estate and wiring complexity in smaller installations while maintaining full credential processing and event logging
• Network-First Design: eFlow104NB provides IP connectivity, allowing integrators to eliminate legacy serial infrastructure and leverage existing network backbone for access control management and troubleshooting
• Power Conditioning: VR6 and PDS8 combination ensures stable, supervised power delivery across distributed readers and locks, critical for preventing false denials in high-traffic entry points

Deployment Considerations:

• Plan network VLAN segmentation and switch port configuration before installation to isolate access control traffic from general corporate data
• Verify UPS integration at the PDS8 level; this kit does not include battery backup, so external battery and charger sourcing is necessary for mission-critical doors
• Validate credential reader compatibility with Trove2AM2 before procurement; not all reader types may be supported out-of-box
• Use the eFlow104NB network interface to establish centralized management, but test failover behavior and local door operation modes in case of network interruption

The T2AMK7F8 is a solid choice for integrators standardizing on Altronix/AMAG platforms and seeking to reduce component sourcing and validation overhead. Kit-based purchases also simplify RMA processes if any component fails during the warranty period. I recommend this kit for deployments of 8 doors or fewer where network infrastructure is already in place and installer labor is constrained.
