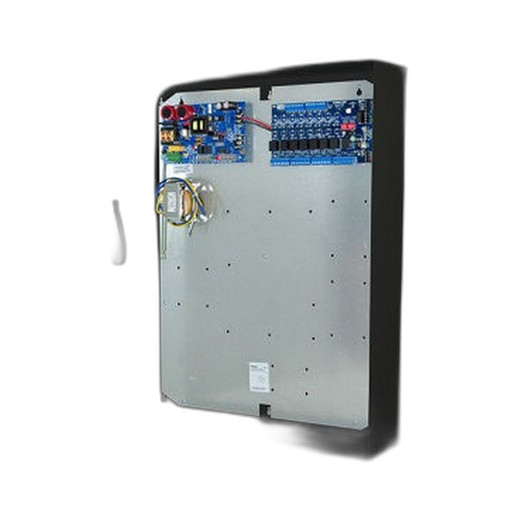

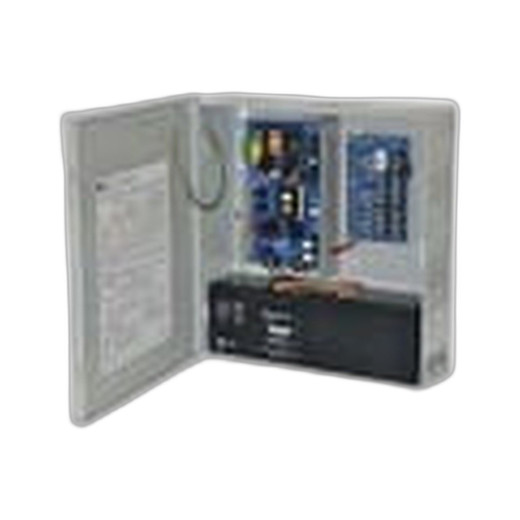

Altronix T2KK3F8D 8-Door Access Control Integration Kit

Altronix T2KK3F8D 8-Door Access Control Power Integration Kit

Overview

The Altronix T2KK3F8D is a comprehensive 8-door access control and power integration solution that combines multiple Altronix/Keyscan components into a unified system. This kit includes the Trove2KA2 controller, eFlow6NB power module, ACM8CB controller, and T16100 power supply, providing integrators with a complete, pre-coordinated package for mid-scale access control deployments. The T2KK3F8D streamlines procurement and installation by bundling essential components that work together seamlessly, reducing compatibility questions and deployment timeline.

Key Features

• Eight-door access control capacity with integrated power distribution
• Trove2KA2 controller for centralized credential and door management
• eFlow6NB power module for distributed power delivery across access points
• ACM8CB controller for additional access control logic and expansion
• T16100 power supply delivering consistent power to the entire system
• Pre-integrated component set eliminating custom configuration and compatibility risk
• Designed for security integrators requiring modular, scalable access solutions
• Supports standard access control protocols and door locking hardware integration
• Distributed architecture allows installation flexibility across multiple zones or floors
• Battery backup capability through integrated power modules for emergency access

System Integration & Architecture

The T2KK3F8D kit is engineered as a plug-and-play integration platform for mid-range access control deployments. The Trove2KA2 serves as the system controller, managing credential validation, door unlock commands, and audit logging across all eight doors. The eFlow6NB power module distributes 12VDC power to remote access points, reducing voltage drop over extended cable runs and improving reliability at distant door positions. The ACM8CB provides additional control logic for scenarios requiring secondary authorization, door scheduling, or multi-factor access rules. The T16100 power supply acts as the central power source, delivering stable, regulated power to both the controllers and the eFlow6NB distribution module.

This architecture is suited for multi-door installations in office buildings, facilities, warehouses, and campuses where doors are spread across different areas and centralized control is required. The modular design allows integrators to configure the system according to site-specific requirements without redesigning core components.

Package Contents

• 1x Trove2KA2 Access Control Controller
• 1x eFlow6NB Power Distribution Module
• 1x ACM8CB Access Control Module
• 1x T16100 Power Supply

Deployment Considerations for Integrators

The T2KK3F8D is configured to support eight doors with power management built into the package. This configuration is ideal for facilities where centralized credential management and distributed power delivery prevent voltage degradation and ensure reliable lock actuation. Installation requires proper cable gauge selection based on distance and current draw at each door. The battery backup capability available through the power modules ensures that access is maintained during brief power interruptions, a critical requirement for life-safety and emergency egress compliance.

Integrators should verify compatibility with existing credential readers, door hardware, and network infrastructure before final procurement. The kit's modular design permits expansion or replacement of individual components if operational requirements change post-installation.

Jerry Tildsen

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

I've evaluated the Altronix T2KK3F8D during several access control deployments, and this kit represents a practical middle ground for integrators managing 8-door facilities. Rather than sourcing components individually and risk compatibility issues, the T2KK3F8D bundles the controller, power distribution, and power supply as a coordinated system. This approach reduces engineering overhead and simplifies troubleshooting during commissioning.

Technical Highlights:

• Eight-door control capacity: The Trove2KA2 and ACM8CB combination handles credential verification and lock actuation across eight separate access points without requiring network-based controllers.
• Distributed power architecture: The eFlow6NB module ensures stable voltage delivery to remote doors, eliminating the voltage sag that occurs when all locks draw current through a single supply line.
• Integrated power supply: The T16100 provides the foundation power source, eliminating the need to source a separate UPS or power conditioning device for this tier of deployment.

Deployment Considerations:

• Verify cable run distances from the eFlow6NB to the furthest door; excessively long runs may require larger gauge conductors to maintain lock voltage above 10.5VDC under full load.
• Plan battery backup sizing based on occupancy and emergency egress requirements; the kit's power modules support battery integration, but battery capacity must be specified separately.
• Confirm that existing credential readers and door hardware are compatible with the Trove2KA2 relay outputs before installation.

This kit is well-suited for facilities where modular design, centralized management, and straightforward commissioning outweigh the need for large-scale, network-distributed architectures. I recommend the T2KK3F8D to integrators targeting mid-market commercial and institutional clients with predictable, stable access requirements.
