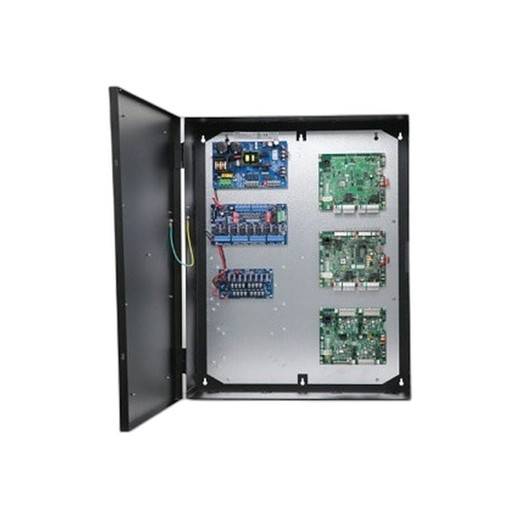

Altronix T2KSK3F8 8-Door Access and Power Integration Kit
Overview
The Altronix T2KSK3F8 is a comprehensive 8-door access control and power integration solution that combines Altronix and Keri Systems components into a single coordinated system. This kit pairs enterprise-grade access control hardware with dedicated power management, enabling integrators to deploy multi-door facilities with centralized supervision and power distribution. The T2KSK3F8 addresses the core requirement of modern access deployments: synchronized door control, credential management, and reliable auxiliary power in a single pre-configured package.
Key Components and Configuration
- Trove2KS2 Master Controller: Central access control platform delivering intelligent door management and credential processing across 8 doors
- eFlow6NB Network Bridge: Ethernet connectivity and network integration module enabling remote management and real-time event reporting
- ACMS8 Power Distribution Module: Manages auxiliary power delivery to access points, locks, and field devices with multi-output design
- VR6 Voltage Regulator: Ensures stable power delivery across distributed door hardware, protecting against voltage fluctuation and supply variance
- PDS8 Power Supply Unit: Dedicated power source for the integrated system, delivering regulated output to support the full 8-door configuration
- 8-Door Capacity: Supports up to 8 independently controlled access points with individual reader and lock supervision
Integration and Deployment Architecture
The T2KSK3F8 is engineered to bridge Altronix power infrastructure with Keri Systems access control logic. The eFlow6NB network bridge enables Ethernet-based communication, allowing the Trove2KS2 controller to report access events, manage credential updates, and monitor door status in real time. The ACMS8 distributes power to individual door hardware while the VR6 regulator maintains voltage consistency across extended wiring runs or multiple simultaneous lock activations. This modular architecture allows integrators to scale deployments by managing power allocation and access policies without replacing core controllers.
Power Management and Reliability
The PDS8 power supply and ACMS8 distribution module work in concert to deliver clean, regulated power to access control hardware. The VR6 voltage regulator prevents voltage sag during high-demand events such as multiple locks releasing simultaneously, a critical consideration in high-traffic facilities. This design ensures that credential readers maintain scanning performance and locks respond reliably to control signals under load conditions.
Specification Summary
The T2KSK3F8 kit includes five major components: the Trove2KS2 master controller, eFlow6NB network bridge, ACMS8 power distribution module, VR6 voltage regulator, and PDS8 power supply. Configuration supports 8 independent doors with individual supervision and control. Network connectivity is provided via Ethernet. The system integrates Keri Systems credential management with Altronix power distribution, enabling centralized management of multi-door access environments.
Jerry TildsenPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Altronix T2KSK3F8 represents a well-structured approach to 8-door access integration, combining proven Keri Systems access logic with Altronix power architecture. During deployment planning for mid-size facilities, this kit addresses a common integrator challenge: avoiding point-to-point power and control wiring by consolidating functions in a single enclosure. The T2KSK3F8 reduces field labor by eliminating redundant power distribution design.
Technical Highlights:
- Multi-Module Architecture: Separating control (Trove2KS2), networking (eFlow6NB), power distribution (ACMS8), and regulation (VR6) allows troubleshooting and component replacement without full system shutdown
- Regulated Power Supply: The PDS8 and VR6 combination ensures voltage stability across 8 doors, critical for reliable lock actuation and reader performance in high-traffic periods
- Network Integration: The eFlow6NB bridge eliminates proprietary serial wiring, enabling Ethernet-based event reporting and remote credential management
Deployment Considerations:
- Verify enclosure mounting location can accommodate the consolidated component stack and heat dissipation from the PDS8 under sustained multi-door operations
- Plan Ethernet infrastructure to ensure eFlow6NB network connectivity with appropriate bandwidth for real-time event reporting across 8 doors
- Coordinate power delivery planning with the ACMS8 output capacity to confirm simultaneous lock release scenarios do not exceed module limits
For integrators deploying 8-door facilities requiring tight control and power coordination, the T2KSK3F8 consolidates hardware selection and reduces design complexity. This kit is appropriate for office complexes, secure entry points, and facilities where centralized supervision and regulated power distribution are operational requirements.
