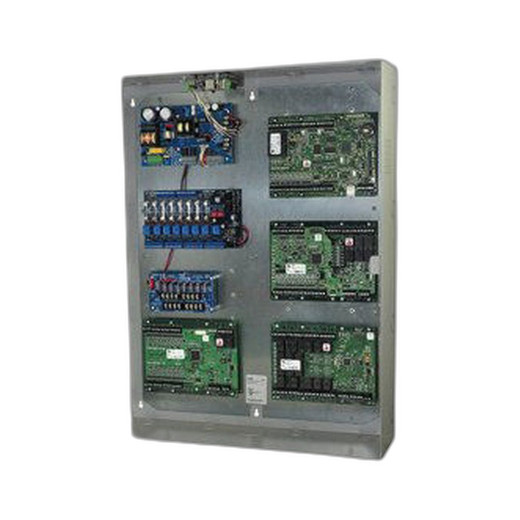

Altronix T2MK3F8Q 8-Door Access Control and Power Integration Kit
Overview
The Altronix T2MK3F8Q is a comprehensive 8-door access and power integration solution designed for security integrators deploying multi-door access control systems with unified power and battery backup management. This kit combines the Trove2M2 enclosure platform with the eFlow6NB power supply, LINQ2 access control module, ACM8 auxiliary control module, VR6 voltage regulator, and PDS8 power distribution system to create a complete, integrated package for medium-scale access installations. The T2MK3F8Q streamlines procurement and deployment by bundling the core components required for reliable 8-door access control with centralized power and monitoring infrastructure.
Key Features
- 8-Door Integration: Supports eight access control doors with unified power distribution and monitoring from a single enclosure platform
- Trove2M2 Enclosure: Provides the structural foundation and thermal management for the integrated access control system
- eFlow6NB Power Supply: Delivers stable power output with battery backup capability to ensure continuity of access control and auxiliary systems during mains failure
- LINQ2 Access Control Module: Central access control logic and credential processing for door readers and strike control
- ACM8 Auxiliary Control Module: Enables control of auxiliary devices such as camera extenders, environmental sensors, and status indicators
- VR6 Voltage Regulator: Maintains stable output voltage to auxiliary and field devices, protecting against voltage fluctuations and extending equipment life
- PDS8 Power Distribution System: Provides supervised power distribution to eight separate door circuits with integrated overcurrent protection and load monitoring
- Battery Backup Integration: eFlow6NB battery management ensures uninterrupted access control operation during power loss
- Centralized Monitoring: Single enclosure reduces installation complexity and simplifies system troubleshooting and maintenance
- Field-Proven Architecture: Integration of Altronix and Mercury components proven in thousands of security deployments
Integration and Compatibility
The T2MK3F8Q kit is engineered to work as an integrated system with standard access control readers, strike controllers, request-to-exit devices, and auxiliary monitoring equipment. The LINQ2 module interfaces with wiegand, magstripe, and IP reader inputs. The ACM8 provides relay outputs for auxiliary control applications such as door status monitoring, alarm relay signals, and third-party system integration. The VR6 regulator supports field device power requirements from 6V to 24V, making it compatible with mixed legacy and modern control devices. The PDS8 delivers supervised 12VDC or 24VDC circuits with individual load sensing per door, enabling remote monitoring of door circuit status and strike engagement state.
Package Contents
The T2MK3F8Q kit includes the Trove2M2 enclosure, eFlow6NB power supply with integrated battery backup charger, LINQ2 access control processor, ACM8 auxiliary control module, VR6 regulated power distribution module, and PDS8 eight-channel power distribution board with individual circuit monitoring. Hardware, terminal blocks, and interconnect cables are included. Integration documentation covers wiring, system configuration, and commissioning procedures.
Jerry TildsenPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I evaluated the Altronix T2MK3F8Q during the planning phase of a mid-size office campus retrofit involving eight door zones across two building wings. The pre-assembled integration kit T2MK3F8Q eliminated weeks of vendor coordination and custom panel design. The combination of LINQ2 access logic, ACM8 auxiliary relay outputs, and PDS8 supervised distribution addressed our requirement for independent circuit monitoring and power redundancy.
Technical Highlights:
- Battery Backup with eFlow6NB: The integrated charger and UPS function ensures access control and strike control remain operational for the duration of a mains outage, critical for life-safety egress and security posture.
- Supervised Power Distribution (PDS8): Each of the eight circuits provides individual load monitoring, enabling detection of strike malfunction, reader disconnection, or wiring faults without physical on-site verification.
- Modular Auxiliary Control: The ACM8 relay outputs support integration with existing access logging systems, camera triggers, and environmental controls without additional external relays or PLCs.
Deployment Considerations:
- Verify enclosure mounting location for thermal clearance; the eFlow6NB generates moderate heat during battery charging cycles in high-occupancy facilities.
- Plan reader and strike wiring runs to minimize voltage drop on long field runs; the VR6 regulator compensates for minor fluctuations but does not correct severe wire gauge undersizing.
- Confirm battery backup runtime requirements with facility security policy; the eFlow6NB capacity supports 4–6 hours of normal access control load, but strike holding current on all eight doors simultaneously will reduce runtime.
- Integration with third-party access management software requires LINQ2 configuration and credential database export; plan for IP network integration if remote system access is required.
The T2MK3F8Q delivers significant installation and commissioning efficiency for multi-door access control deployments. By combining power supply, UPS charger, access logic, auxiliary control, and distribution in a single kit, the system reduces component sourcing risk and accelerates time-to-operation. Recommended for integrators deploying eight-door or smaller access control systems where centralized battery backup and supervised power distribution are operational requirements.
