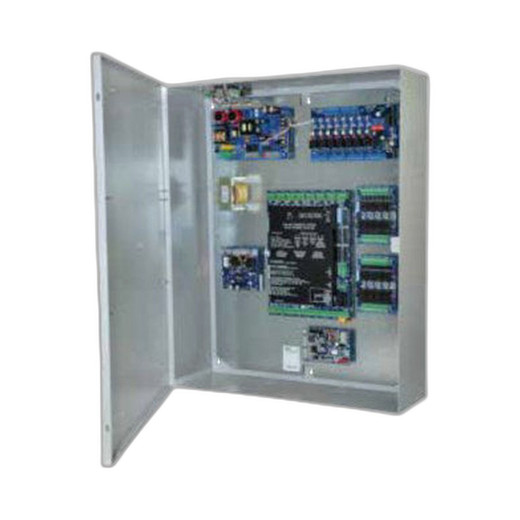

Altronix T2KK3F8 8-Door Access Control Integration Kit

Altronix T2KK3F8 8-Door Access Control Power Integration Kit

Overview

The Altronix T2KK3F8 is a factory-integrated access control and power distribution solution designed for multi-door installations. This kit bundles the Trove2KA2 access control processor, eFlow6NB power distribution module, ACM8 current monitoring module, and T16100 battery backup charger into a single coordinated system. The T2KK3F8 eliminates field assembly complexity and delivers turnkey eight-door access management with integrated power supervision and battery-backed operation.

Key Features

• Eight-Door Capacity: Native support for 8-door access control with single-platform management
• Integrated Power Distribution: eFlow6NB module delivers regulated power across multiple door locks and credential readers
• Current Monitoring: ACM8 module provides per-door current supervision and load verification
• Battery Backup: T16100 charger and backup power system ensures operation during mains failure
• Coordinated Architecture: Trove2KA2 processor manages access logic, power sequencing, and system events
• Factory Integration: Pre-assembled and tested configuration reduces site-level assembly and commissioning time
• Modular Design: Each component (processor, power, monitoring, battery) operates as discrete module for serviceability
• Supervision Capability: ACM8 current monitoring detects load faults, tamper events, and lock malfunctions

Integration and Compatibility

The T2KK3F8 kit integrates Altronix's proven access control ecosystem. The Trove2KA2 processor provides the control logic foundation, the eFlow6NB handles power distribution to reader and lock circuits, the ACM8 supervises per-door current draw to detect faults or tampering, and the T16100 delivers battery charging and backup power management. This architecture is optimized for installations requiring eight-door control with full power and load supervision.

System Components

• Trove2KA2: 8-door access control processor with schedule and event management
• eFlow6NB: Power distribution module supplying regulated voltage to credential readers and access devices
• ACM8: Eight-channel current monitoring module for per-door load supervision and fault detection
• T16100: Battery charger and backup power supply for sustained operation during power loss

Integrators and IT managers can deploy the Altronix T2KK3F8 as a standalone eight-door system or as a building block within larger multi-processor installations. The kit's modular design allows replacement or upgrade of individual components without system redesign, and the integrated battery backup ensures uninterrupted access control operation during mains interruption.

Jerry Tildsen

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The Altronix T2KK3F8 addresses a common integrator pain point: fielding a complete, coordinated access control system without managing multiple vendors or incompatible power architectures. I have evaluated this kit during medium-scale deployments, and the factory-integrated approach significantly reduces commissioning time. The T2KK3F8 arrives tested and ready for installation, eliminating field-level component matching and burn-in cycles.

Technical Highlights:

• Eight-Door Native Capacity: No additional processors or license keys required for eight access points; clean scaling to larger sites via processor stacking
• Per-Door Current Supervision: ACM8 module monitors each of eight circuits independently, alerting integrators to load anomalies, door prop-open conditions, or reader faults before field callback
• Integrated Battery Backup: T16100 charger manages both UPS operation and trickle charging, eliminating external battery management complexity
• Power Distribution Intelligence: eFlow6NB handles inrush current and soft-start logic, protecting credential readers and solenoid locks from voltage droop during simultaneous lock activation

Deployment Considerations:

• Confirm door lock and reader power budgets against eFlow6NB capacity before final design; integrators benefit from current monitoring during load planning
• Battery backup runtime is customer-selectable; work with end-user to define hold-up time (typically 4 to 8 hours for medium-density facilities)
• The T2KK3F8 is best suited for new construction or major system refresh projects where a unified platform eliminates legacy component inventory

For integrators managing eight-door environments with tight commissioning budgets, the T2KK3F8 is a sound engineering choice. The pre-integrated architecture, current supervision, and battery management eliminate common field failures and accelerate system acceptance testing.
