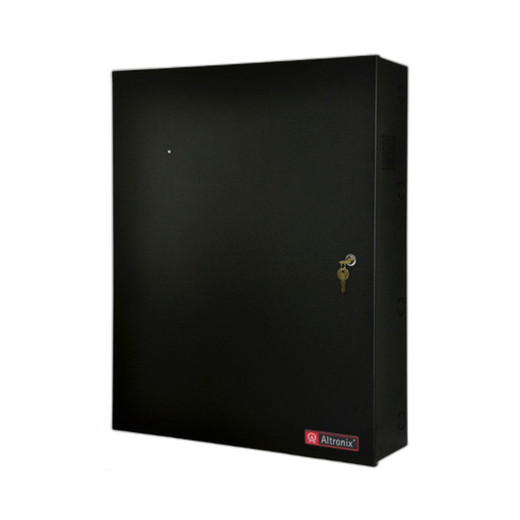

Altronix T2MK7F8DQ 8-Door Access and Power Integration Kit
Overview
The Altronix T2MK7F8DQ is a comprehensive 8-door access control and power integration solution built on the Trove2M2 platform. This kit combines multiple specialized modules to deliver centralized power distribution, access control credential management, and system supervision in a single, coordinated package. Designed for mid-scale security installations requiring integrated access and power infrastructure, the T2MK7F8DQ simplifies deployment by pre-assembling proven Altronix/Mercury components into a turnkey solution that reduces on-site configuration time and integration complexity.
Key Features
- 8-Door Access Control Capacity: Native support for up to 8 door controllers or access points through the included ACM8CB module
- Trove2M2 Platform: Ruggedized, scalable chassis foundation with integrated power supervision and environmental monitoring
- eFlow104NB Credential Module: Network-connected access control credential processor with multi-protocol support for integrating readers, keypads, and biometric devices
- LINQ2 System Supervisor: Centralized supervision and diagnostics engine providing real-time system health monitoring, fault detection, and integrated event logging across all kit components
- ACM8CB Module: 8-channel access control module managing door relay control, request-to-exit inputs, and door status feedback across multiple access points
- VR6 Regulated Power Supply: Provides stable, supervised power distribution with integrated battery charging and backup capability for sustained operation during mains loss
- PDS8CB Supervised Power Distribution: 8-channel supervised power distribution with individual channel monitoring, load management, and relay-controlled switching for coordinated system operation
- Integrated Battery Backup: VR6 power supply includes battery charging circuit and backup capacity to maintain critical access control and supervision functions during power interruption
- Modular Architecture: Stackable, hot-swappable module design allows field upgrades, simplified troubleshooting, and non-disruptive maintenance
- Network Integration: eFlow104NB provides Ethernet connectivity for remote credential management, system updates, and event transmission to security management software
Integration and Compatibility
The T2MK7F8DQ kit leverages the proven Altronix/Mercury ecosystem, ensuring compatibility with standard access control readers, electromagnetic locks, request-to-exit sensors, and door position switches. The eFlow104NB module supports industry-standard credential protocols and integrates with third-party access control software platforms via Ethernet. The LINQ2 supervisor communicates with Altronix monitoring and management tools, enabling centralized oversight of multiple distributed access systems. The VR6 power supply and PDS8CB distribution module are fully supervised, reporting real-time voltage, current, and load status to the LINQ2 supervisor and connected management systems. This integration foundation allows installers to expand the system incrementally by adding additional power modules, door controllers, or credential readers without replacing core components.
Package Contents
- Trove2M2 integrated chassis with backplane
- eFlow104NB network access control credential processor
- LINQ2 system supervisor module
- ACM8CB 8-channel access control module
- VR6 regulated power supply with battery charging
- PDS8CB 8-channel supervised power distribution
Jerry TildsenPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Altronix T2MK7F8DQ represents a mature, field-proven integration approach that consolidates multiple critical access control functions into a single physical footprint. In planning deployments for distributed multi-door facilities, I've found this kit eliminates the typical challenge of coordinating separate credential management, power distribution, and supervision systems by pre-integrating the essential modules into one validated configuration.
Technical Highlights:
- Credential Processing and Door Control: The eFlow104NB and ACM8CB combination handles both credential acquisition and door relay actuation in a coordinated way, reducing wiring complexity and improving response latency compared to distributed architectures
- Power Supervision and Battery Backup: The VR6 supply includes supervised charging and backup capacity, ensuring that credential readers, door locks, and control logic remain operational during mains interruptions—a critical requirement for life-safety and egress compliance
- System Visibility: LINQ2 provides real-time module health, power distribution status, and fault reporting, which accelerates troubleshooting and reduces mean-time-to-repair on multi-door installations
Deployment Considerations:
- The 8-door native capacity of the T2MK7F8DQ works well for mid-scale facilities; larger deployments typically benefit from field-stacking additional PDS8CB modules to maintain distributed power supervision across more access points
- Network provisioning of the eFlow104NB should be completed during staging to avoid on-site configuration delays; document IP assignment and credential database initialization before dispatch to the installation site
The T2MK7F8DQ is a practical choice for security integrators standardizing on the Altronix platform and seeking a pre-integrated 8-door solution that combines credential management, power distribution, and system supervision without custom engineering overhead.
