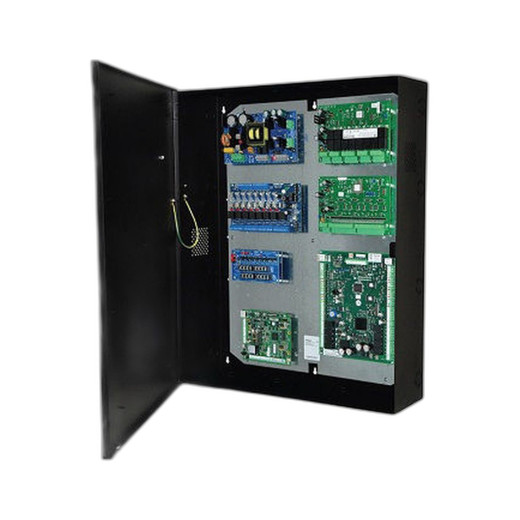

Altronix T2HNK7F8 8-Door NetAXS Access Control and Power Integration Kit
Overview
The Altronix T2HNK7F8 is a comprehensive 8-door access control and power integration solution designed for mid-to-large deployments requiring centralized management of networked access points with integrated power distribution. This kit bundles the Trove2HN2 enclosure with the eFlow104NB network access controller, ACM8 access control module, VR6 regulated power supply, and PDS8 power distribution system, delivering a fully integrated platform for enterprises, integrators, and telecom operators managing multi-door access infrastructure.
The T2HNK7F8 provides an 8-door access control architecture that consolidates door control, reader management, power distribution, and system supervision into a single coordinated system. This integration eliminates the need for separate component procurement and field-configuration workflows, reducing deployment time and point-of-failure risk in access control networks.
Key Features
- 8-Door Access Control Architecture: Supports up to 8 independently controlled doors with reader-to-controller integration through the ACM8 access control module
- NetAXS Network Controller: eFlow104NB provides IP-based access control with network-native supervision and centralized credential management across all 8 doors
- Integrated Power Distribution: VR6 regulated power supply and PDS8 power distribution system deliver consistent voltage to access control hardware, readers, and electromagnetic locks
- Trove2HN2 Enclosure: Compact form-factor cabinet housing all control and power components for wall or DIN-rail mounting in utility closets, equipment rooms, or security control centers
- Single-Kit Deployment: Pre-assembled integration kit eliminates component sourcing, compatibility verification, and manual integration labor typical of modular access systems
- Centralized System Supervision: Network-based monitoring and event logging across all 8 doors through eFlow104NB IP connectivity
- Scalability Foundation: Design supports future expansion and integration with Altronix managed power switching and emergency backup systems
- Professional Integration Support: Kit packaging designed for security integrators with field-installation-ready component alignment
Integration & Compatibility
The T2HNK7F8 kit architecture integrates four core Altronix/Honeywell components into a unified control platform. The eFlow104NB network controller operates as the primary access decision engine, communicating with the ACM8 via controlled data lines and receiving supervised status feedback from each door. The VR6 power supply provides regulated voltage output to the ACM8 and reader circuits, while the PDS8 distributes power to electromagnetic lock solenoids and ancillary field devices. The Trove2HN2 enclosure provides mechanical and environmental protection for all components, with internal DIN-rail and terminal block organization supporting standard integration practices.
This kit configuration is compatible with standard door hardware including fail-secure and fail-safe electromagnetic locks, RFID and credential readers supporting Wiegand or IP protocols, and request-to-exit (REX) sensors. Integration with building management systems and third-party access control software platforms is supported through eFlow104NB network interfaces.
Package Contents
- Trove2HN2 enclosure
- eFlow104NB network access controller
- ACM8 access control module (8-door)
- VR6 regulated power supply
- PDS8 power distribution system
Jerry TildsenPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I have reviewed the Altronix T2HNK7F8 during integration planning for multi-building campus access deployments. The kit-based approach significantly reduces field integration complexity by pre-coupling the network controller, access module, power supply, and distribution system into a single coordinated platform. The T2HNK7F8 eliminates the typical requirement for separate vendor sourcing and manual component qualification, which is particularly valuable when deploying across 8 doors in a single location.
Technical Highlights:
- Centralized 8-Door Control: The ACM8 access module provides independent relay control for 8 doors, with the eFlow104NB managing credential processing and access decisions across all 8 zones through a single network interface
- Integrated Power Architecture: VR6 and PDS8 provide supervised power distribution with status feedback, reducing external power management complexity in the installation
Deployment Considerations:
- Verify enclosure mounting location supports network connectivity for eFlow104NB; ensure IP network cable runs are planned to central equipment rooms or network closets
- Confirm electromagnetic lock current requirements against VR6 and PDS8 output ratings during field design; oversized lock loads require external power amplification
- Plan credential reader wiring to ACM8 module input terminals; Wiegand and IP reader types have distinct connection requirements that should be verified before installation
For integrators managing multi-door access deployments, the T2HNK7F8 offers a validated, pre-integrated control platform that reduces commissioning timelines and improves system reliability through factory-coupled component compatibility. This kit is well-suited to mid-size enterprises, hospitality properties, and secure facilities requiring centralized 8-door access control without custom component integration.
