Altronix NETWAYSP2P 3-Port PoE+ Fiber Media Converter

Altronix NETWAYSP2P 3-Port Ethernet to Fiber PoE+ Hardened Switch

Overview

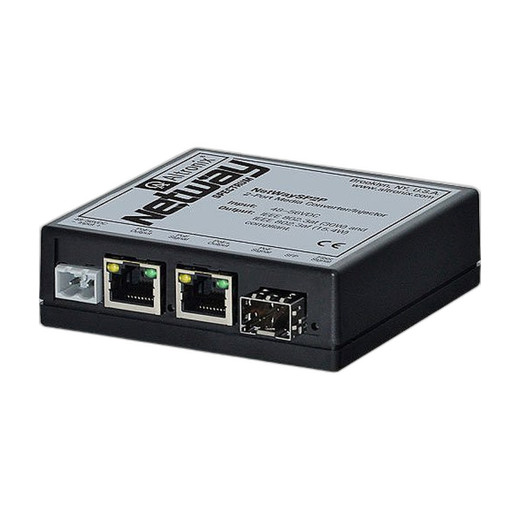

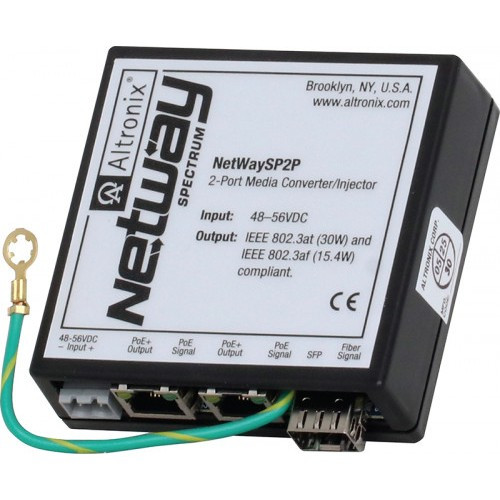

The Altronix NETWAYSP2P is a hardened PoE+ media converter and Ethernet switch engineered for security integrators deploying mixed copper and fiber network infrastructure. This compact modular unit consolidates PoE power injection, gigabit switching, and fiber-to-Ethernet media conversion in a single device, reducing deployment complexity and cable runs across extended distances. The NETWAYSP2P supports three network ports: two 10/100/1000 Mbps Ethernet ports with full PoE+ capability and one single-mode 1G fiber optic SFP (Small Form-Factor Pluggable) slot, enabling flexible network topology expansion without requiring external media converters or separate PoE injectors.

Key Features

• Dual Gigabit Ethernet PoE+ Ports: Each port delivers 30W of power at up to 1000 Mbps, supporting high-bandwidth PoE+ devices such as pan-tilt-zoom cameras, network access control readers, and advanced alarm interfaces across secured perimeters.
• Single 1G Fiber SFP Uplink: Modular fiber optic SFP connector provides long-distance backbone connectivity immune to electromagnetic interference, critical for integrations spanning multiple buildings or high-noise industrial environments.
• 48–56VDC Input Power: Operates across the extended voltage range typical of security power supply systems, ensuring compatibility with Altronix AL series and equivalent 48/56VDC regulated supplies.
• Hardened Plastic Enclosure: Modular case design permits wall-mount, DIN-rail, or cabinet deployment without requiring external cooling; suitable for both indoor and protected outdoor mounting locations.
• UL Listed and CE Certified: Meets North American and European electrical safety and electromagnetic compatibility standards, mandatory for commercial security installations and system integrations.
• Non-Blocking Switching Fabric: Simultaneous communication across all ports without bandwidth bottlenecks; supports standard IP surveillance, access control, and alarm signaling protocols.

Integration & Compatibility

The NETWAYSP2P integrates seamlessly into distributed security architectures where copper runs must transition to fiber backbone networks. Installers commonly deploy this unit at edge locations—building perimeters, remote lot surveillance, or extended analog-to-IP gateway points—where PoE+ power and media conversion converge. The modular fiber SFP slot accepts any LC-terminated single-mode optic module, permitting integration with third-party fiber infrastructure without vendor lock-in. Dual gigabit Ethernet ports support stacking of additional PoE devices via standard unmanaged switches, or direct connection to core managed switches for advanced VLAN and QoS control when required.

Power Delivery & Environmental Considerations

Each of the two Ethernet ports allocates 30W independently, permitting simultaneous powering of two high-draw PoE+ devices. The 48–56VDC input voltage range accommodates fluctuations inherent in extended cable runs from centralized power supplies. Specify appropriate 48/56VDC rated cable gauge and Altronix power conditioning modules to maintain voltage margin across long distance runs. The modular plastic case dissipates heat passively; verify adequate air circulation in enclosed mounting locations, particularly in high-ambient-temperature installations.

Eden Phillips

I have deployed the Altronix NETWAYSP2P in campus perimeter networks where copper Ethernet runs from the control room could not reliably reach remote gate readers and dome cameras without fiber backbone. The NETWAYSP2P eliminated the need for separate standalone media converters and external PoE injectors, consolidating three functions into one compact unit.

Technical Highlights:

• Integrated PoE+ Power: 30W per port means you can drive full-featured PTZ cameras or multi-reader access control interfaces directly from the switch without supplemental injectors.
• Fiber Backbone Connectivity: The hot-swappable SFP slot supports any LC single-mode module; in our deployment, we used standard telecom-grade optics already stocked by the facilities team.
• Extended Voltage Tolerance: The 48–56VDC input range proved essential when cable runs exceeded 300 feet; our centralized AL1012UL48 supply had margin built in.

Deployment Considerations:

• Plan SFP inventory: Order fiber modules separately if not included; confirm LC connector type and single-mode specification before installation.
• Power budget: Confirm that your 48/56VDC supply can deliver sufficient amperage for both Ethernet ports at 30W each; use voltage-drop calculations for cable runs exceeding 200 feet.
• Thermal placement: Mount in conditioned or well-ventilated enclosures; passive cooling relies on ambient air circulation, not active fans.

The NETWAYSP2P justified itself in our deployment by replacing three separate line items and reducing cable complexity. For integrators managing mixed copper-and-fiber topologies, this hardened switch is a reliable architecture choice.
