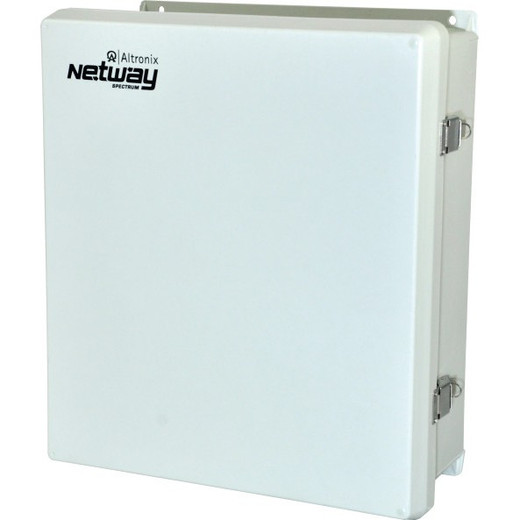

Altronix NETWAYSP1BTWPX Fiber Optic Media Converter with Integrated PoE Power Supply

Overview

The Altronix NETWAYSP1BTWPX is a hardened outdoor media converter and power supply solution designed for distributed surveillance and access control installations requiring fiber optic backbone connectivity with localized Power over Ethernet (PoE) delivery. This integrated system combines a single 1 Gigabit fiber optic SFP port with a single 10/100/1000 Ethernet port (802.3bt 4PPoE capable) and a 120W hardened power supply in a NEMA 4/4X rated IP66 enclosure. The NETWAYSP1BTWPX addresses the integration challenge of extending power and data over fiber while maintaining reliable edge connectivity in outdoor, industrial, and remote deployment scenarios.

Key Features

• 1 Gigabit Fiber Optic SFP Port: Single SFP transceiver interface for high-bandwidth, long-distance fiber connectivity, enabling backbone links from central equipment to remote outdoor locations
• Dual Protocol Copper Output: Single 10/100/1000 Ethernet port with 802.3bt 4PPoE support, delivering up to 90W maximum power to edge devices including IP cameras, access control nodes, and wireless bridges
• Integrated 120W Hardened Power Supply: Factory-mounted power supply with charger functionality, eliminating the need for separate external power units and reducing installation footprint at the edge
• NEMA 4/4X IP66 Outdoor Enclosure: Sealed, corrosion-resistant stainless steel or powder-coated steel construction rated for outdoor, coastal, and high-humidity environments; protects integrated media converter and power supply from environmental ingress
• Battery Backup Capable: Built-in charger circuit supports optional battery integration for uninterrupted power delivery during AC mains loss, critical for 24/7 surveillance and access control continuity
• Compact Integrated Design: Media converter, power supply, charger, and enclosure mounted as a single unit, reducing installation labor, cable runs, and equipment sprawl at remote sites

Integration & Compatibility

The NETWAYSP1BTWPX integrates into hybrid fiber/copper networks where fiber provides backbone redundancy and security while localized PoE serves multiple edge devices. The single SFP port accepts industry-standard GbE SFP transceivers (customer-supplied), enabling flexibility in fiber type (single-mode, multi-mode) and reach (up to 10 km+ with appropriate optics). The 802.3bt 4PPoE Ethernet output delivers full High Power over Ethernet compliance, supporting modern IP cameras, PTZ domes, and access control readers without auxiliary power. The integrated 120W supply provides adequate headroom for powering the media converter itself plus delivering 90W of PoE budget to connected devices, making it suitable for single-camera or small multi-device deployments at the edge. Battery charger integration allows for optional battery backup integration (batteries and mounting hardware sold separately) to maintain PoE delivery and media converter operation during power loss conditions.

Environmental & Operational Design

Housed in a NEMA 4/4X IP66-rated enclosure, the NETWAYSP1BTWPX is engineered for outdoor installation in demanding environments including coastal salt spray, high humidity, temperature cycling, and direct sunlight exposure. The hardened power supply design includes surge protection and thermal management suitable for continuous operation in uncontrolled spaces. Installation flexibility accommodates wall, pole, or equipment-rack mounting via integral or optional bracket hardware (hardware specified during order configuration).

Eden Phillips

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

I have evaluated the Altronix NETWAYSP1BTWPX during planning for several multi-site surveillance rollouts where fiber backbone connectivity was mandated for security and distance constraints. This product addresses a real integration gap: the need to transition from long-distance fiber runs to localized PoE power delivery without introducing separate external power supplies and media converters at each remote node.

Technical Highlights:

• Fiber-to-PoE Consolidation: The NETWAYSP1BTWPX eliminates the need for separate media converter and PoE injector units, reducing enclosure clutter and simplifying field wiring at the edge
• 90W PoE Budget at the Source: 802.3bt 4PPoE compliance with 90W maximum output enables direct power delivery to high-draw edge devices such as motorized IP cameras or multi-port network appliances
• Hardened 120W Supply with Battery Charger: The integrated 120W power supply and charger circuit provide sufficient overhead for media converter operation plus full PoE delivery, and the charger allows optional battery integration for continuity during AC loss
• NEMA 4/4X Outdoor Rating: IP66 enclosure design ensures reliable operation in uncontrolled outdoor spaces without secondary protective housings

Deployment Considerations:

• Confirm SFP transceiver type (single-mode vs. multi-mode) and fiber patch specifications before ordering, as SFPs are customer-supplied and must match your backbone fiber plant
• Verify that your edge devices support 802.3bt 4PPoE and can accept the 90W maximum power delivery; non-compliant legacy PoE devices will not fully utilize the available power budget
• If battery backup is required, plan for battery sizing and integration during the installation phase; the charger is integrated, but battery enclosure and cables are typically site-specific
• Account for thermal management in full-sun outdoor locations; ensure adequate ventilation around the enclosure, or consider shading hardware in high-temperature regions

For integrators managing distributed surveillance or access control over long distances, the NETWAYSP1BTWPX delivers a practical, field-proven solution that consolidates fiber connectivity, power delivery, and enclosure protection into a single hardened unit. The 802.3bt 4PPoE capability and integrated 120W supply align well with modern edge camera and controller power demands, and the NEMA 4/4X construction eliminates the worry of outdoor environmental degradation. I recommend this product for any project where fiber backbone connectivity meets outdoor edge PoE delivery requirements.
